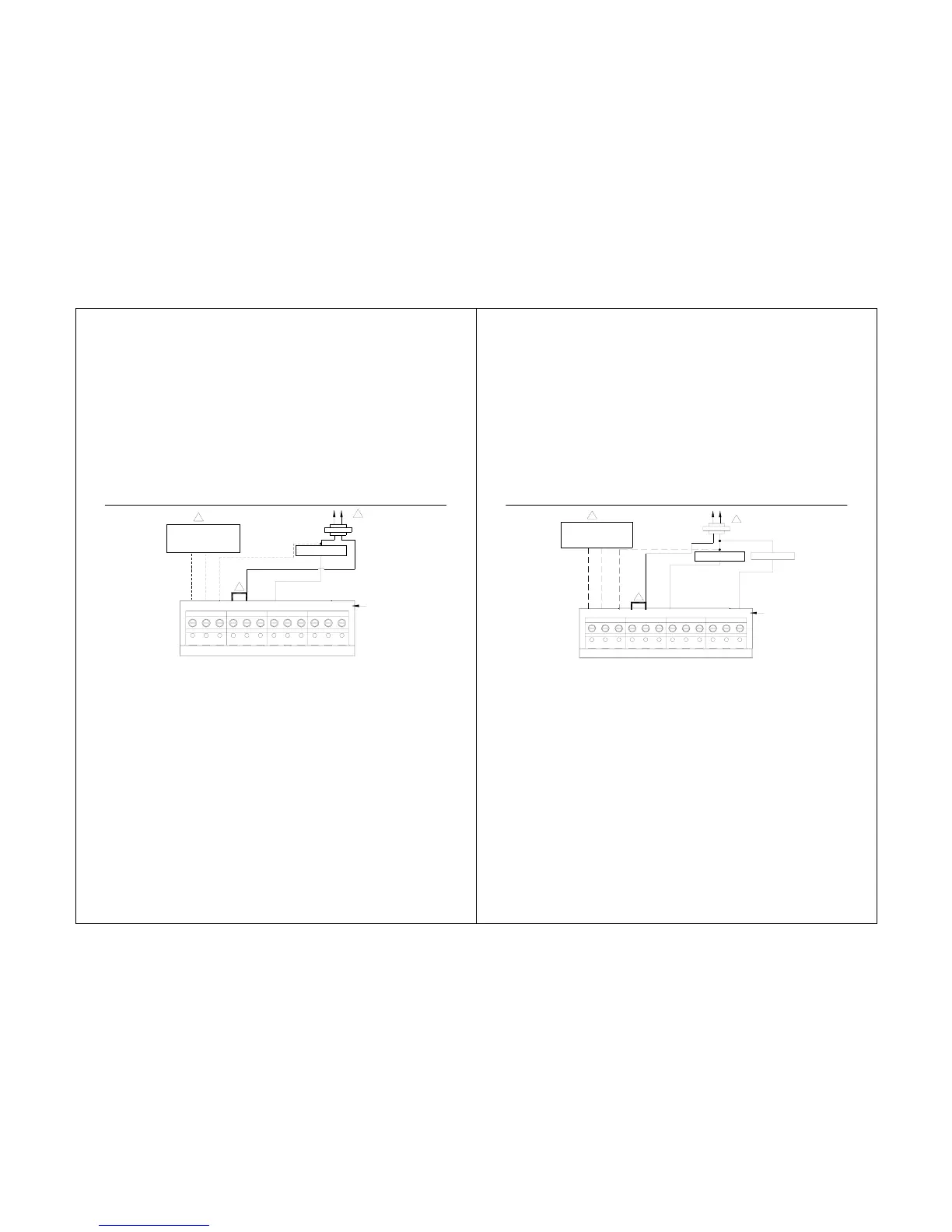

Seabreeze STS11 - Page 13

STS11 Touchscreen Pro
g
rammable Thermostat
1. POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.
2. FACTORY INSTALLED JUMPER.
3. OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE
SEPARATE FROM THE THERMOSTAT CABLE.
Fig. 11.
T
ypical hookup o
f
heat-only system (1H conventional).
24
CONVENTIONAL
S1 S2 C R RC W Y G
OUTDOOR/INDOOR
TEMPERATURE
SENSOR
3
HEAT RELAY
OPTIONAL
24VAC
COMMON
CONNECTION
R
C
1
2
STS11 Touchscreen Pro
g
rammable Thermostat
1. POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.
2. FACTORY INSTALLED JUMPER.
3. OPTIONAL OUTDOOR OR INDOOR REMOTE SENSOR. AVAILABLE ON SELECT MODELS. WIRES MUST HAVE A CABLE
SEPARATE FROM THE THERMOSTAT CABLE.
Fig. 12.
T
ypical hookup of heat only system with fan (1H conventional).
25
CONVENTIONAL
S1 S2 C R RC W Y G
OUTDOOR/INDOOR
TEMPERATURE
SENSOR
3
HEAT RELAY
OPTIONAL
24VAC
COMMON
CONNECTION
R
C
1
2
FAN RELAY
