Seaflo COMPACT SFMTM-01 - Regular Toilet Lid Installation; Installation Procedure

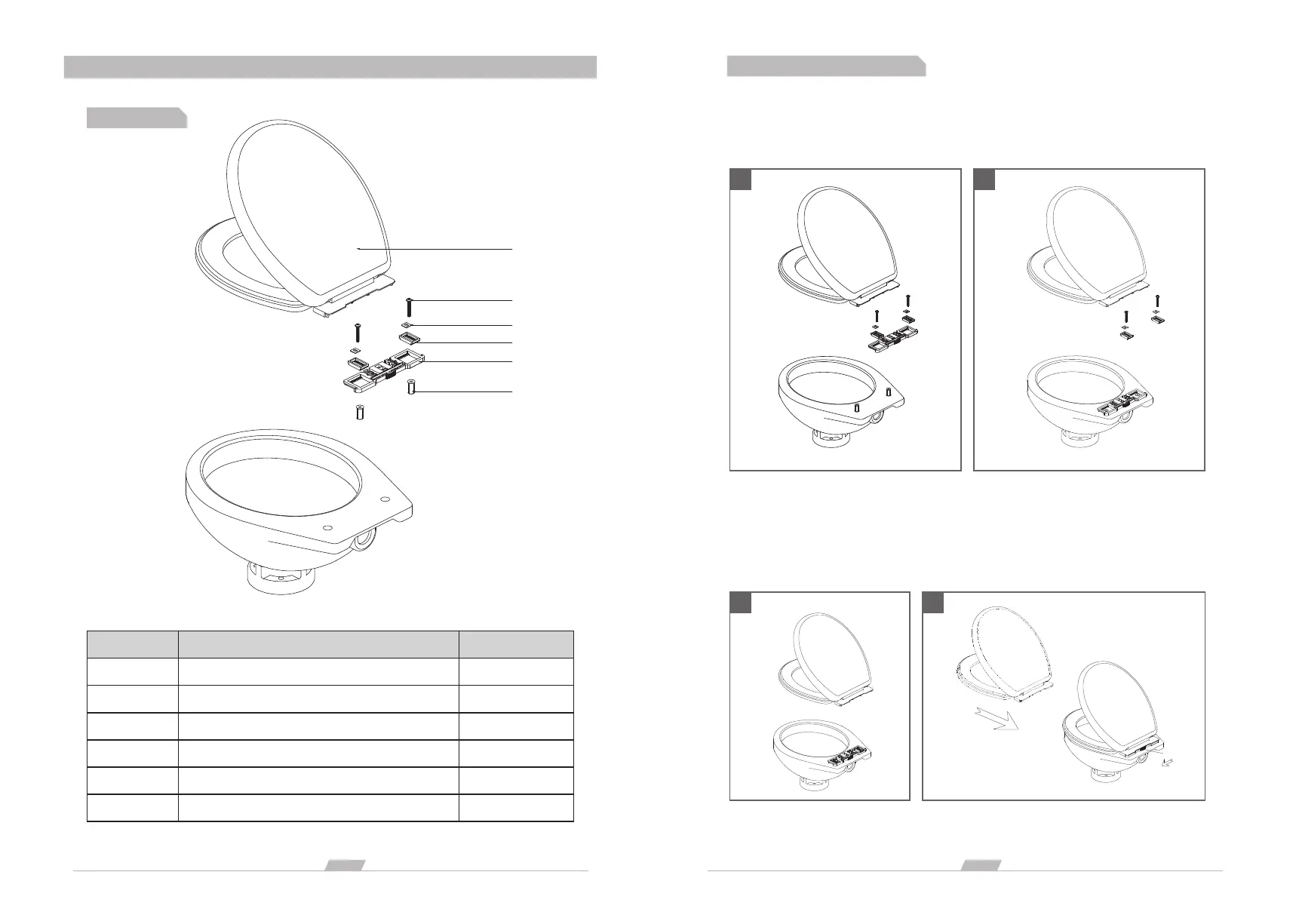

REGULAR TOILET LID INSTALLATION
No.
1
2
3
4
5
6
Part Name
Tension Nut
Base
Install Base
Plate
Bolt
Toilet Lid Assembly
Quantity
2
1
2
2
2
1
1
2
3
4
5
6
1. Place the tightening nut 1 in the mounting hole of the ceramic basin.
2. Place the base 2 above the mounting hole of the ceramic basin.
2
3. Install the mounting base 3 and the gasket 4 into the mounting groove of the base 2, lock the
bolt 5 and the tension nut 1 to fix the base 2 on the ceramic basin.
4. Push the cover plate group 6 into the installation base 2 in the direction of the arrow, push the
latch 2-1 on the base 2 to fix the cover plate on the ceramic base 2.
3
18
page
17
page
