SEAGATE 1200 SSD PRODUCT MANUAL, REV. A 42
6.6 M
ECHANICAL SPECIFICATIONS
Refer to Figure 17 or 18 for detailed mounting configuration dimensions. See Section 10.3, “Drive mounting.”
Note. These dimensions conform to the Small Form Factor Standard documented in SFF-8201 and
SFF-8223 found at www.sffcommittee.org.

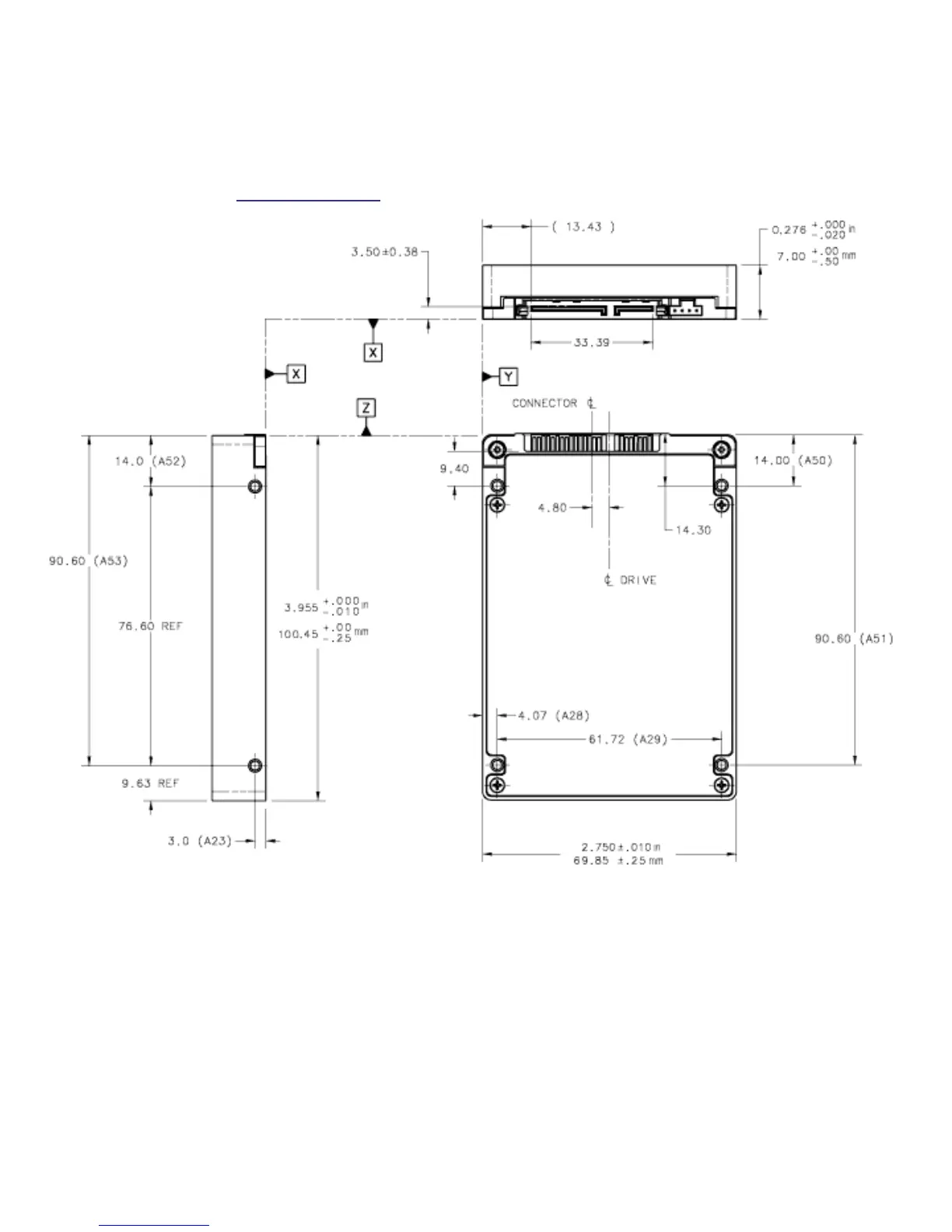

Figure 17. Mounting configuration dimensions (2.5” models)
Weight: 0.353 pounds 160 grams
