24 Barracuda Green SATA Product Manual, Rev. A
Configuring and Mounting the Drive www.seagate.com
3.4 Drive mounting
You can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the
bottom-mounting holes. See Figure 4 for drive mounting dimensions. Follow these important mounting
precautions when mounting the drive:
• Allow a minimum clearance of 0.030 in (0.76mm) around the entire perimeter of the drive for cooling.
• Use only 6-32 UNC mounting screws.
• The screws should be inserted no more than 0.150 in (3.81mm) into the bottom or side mounting holes.
Do not overtighten the mounting screws (maximum torque: 6 in per lb).

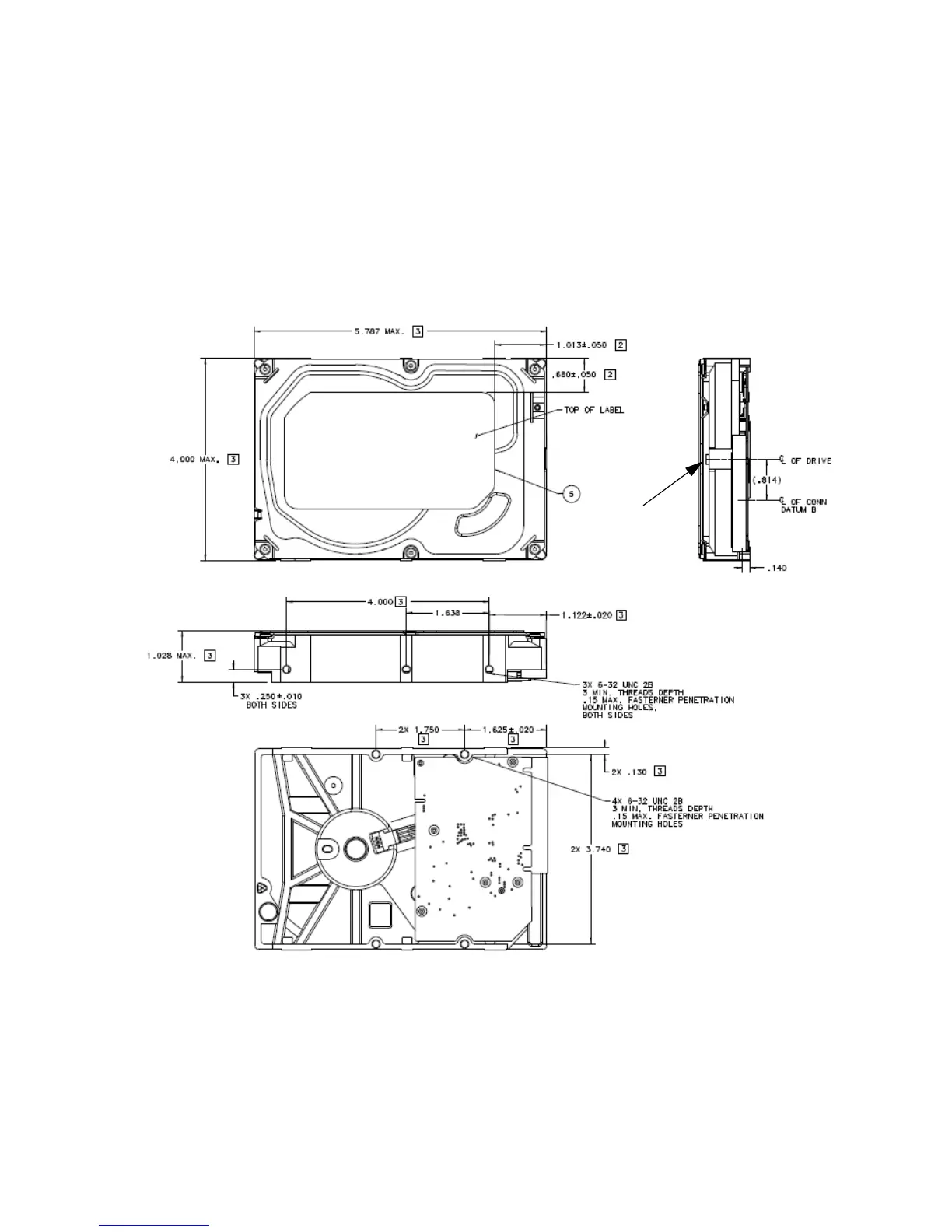

Figure 4 Mounting dimensions (2000 and 1500GB models)
Recommended case temperature
measurement location
