Guide to Parts required versus measured size. (0.8mm graduations)
DBG508 Issue: 1 - 19/06/15
Original Language Version
© Jack Sealey Limited
g.11

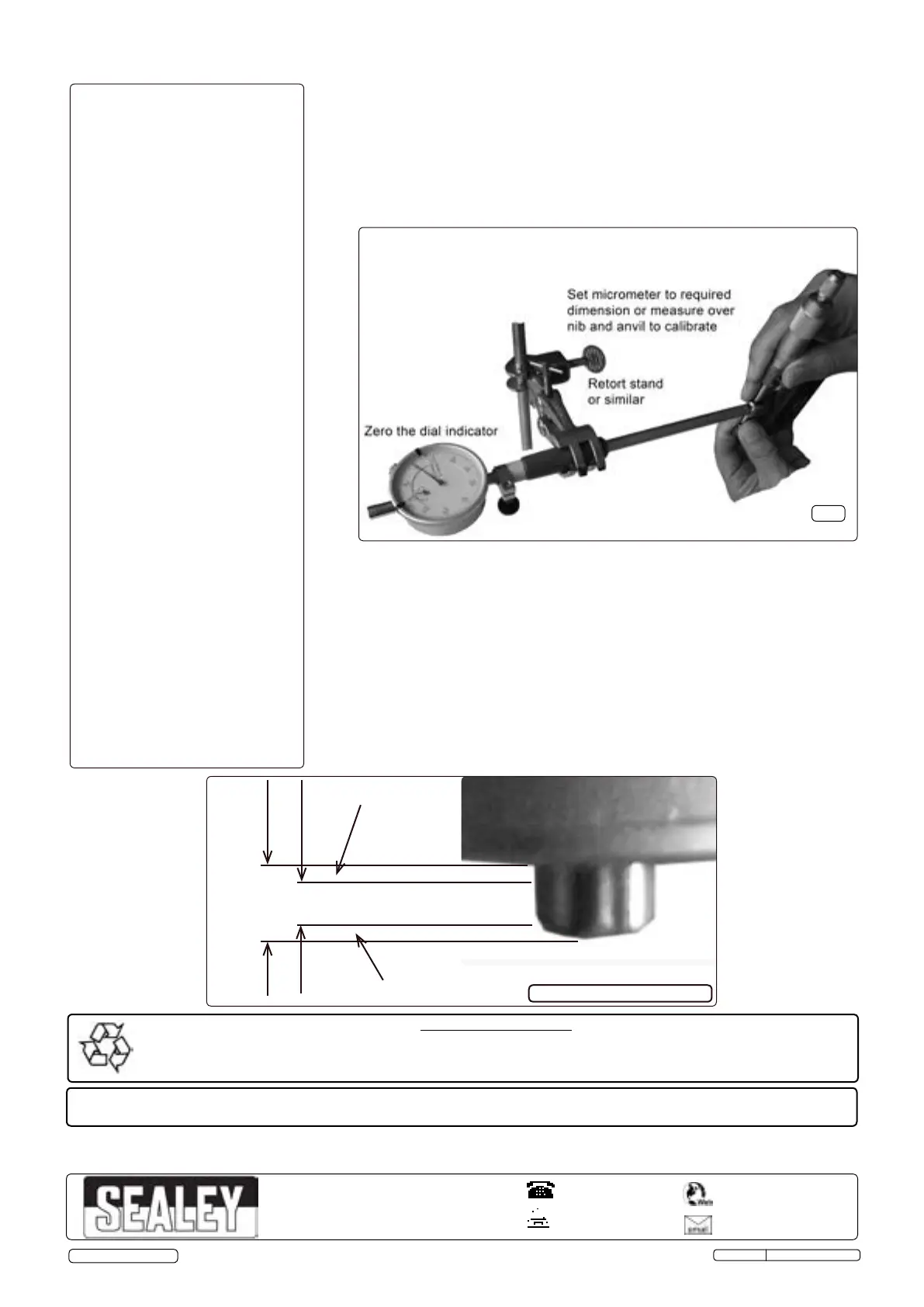

A method for support and setting the micrometer
1.5mm Approximate Projection
0.35mm Approximately
0.35mm Approximately
0.8mm Useful measurement zone
"x" Anvil size Spacer ring
17.60-18.40 18 NO
18.25-19.05 18.65 0.65
18.90-19.70 19.30 1.30
19.55-20.35 19.95 0.65 + 1.30
19.60-20.40 20 NO
20.25-21.05 20.65 0.65
20.90-21.70 21.30 1.30
21.55-22.35 21.95 0.65 + 1.30
21.60-22.40 22 NO
22.25-23.05 22.65 0.65
22.90-23.70 23.30 1.30
23.55-24.35 23.95 0.65 + 1.30
23.60-24.40 24 No
24.25-25.05 24.65 0.65
24.90-25.70 25.30 1.30
25.55-26.35 25.95 0.65 + 1.30
25.60-26.40 26 NO
26.25-27.05 26.65 0.65
26.90-27.70 27.30 1.30
27.55-28.35 27.95 0.65 + 1.30
27.60-28.40 28 NO
28.25-29.05 28.65 0.65
28.90-29.70 29.30 1.30
29.55-30.35 29.95 0.65 + 1.30
29.60-30.40 30 NO
30.25-31.05 30.65 0.65
30.90-31.70 31.30 1.30
31.55-32.35 31.95 0.65 + 1.30
31.60-32.40 32 NO
32.25-33.05 32.65 0.65
32.90-33.70 33.30 1.30
33.55-34.35 33.95 0.65 + 1.30
33.60-34.40 34 NO
34.25-35.05 34.65 0.65
34.90-35.70 35.30 1.30
35.55-36.35 35.95 0.65 + 1.30
Enlarged copy of g.3 for clarity
