 DO NOTusewhilstundertheinuenceofdrugs,alcoholorintoxicatingmedication.
 DO NOT leave the unit in a totally discharged state for an extended period of time as this may result in permanent damage.
 DO NOT cross-connect the power leads from the RoadStart to the battery. Ensure that positive is to positive and negative is to
negative. Observe polarity indicator during connection.
 Ensure that the unit is fully charged before storage.
1.3. ELECTRICAL SAFETY (with respect to mains chargers)
R WARNING! It is the user’s responsibility to check the following:
You must check the AC adaptor to ensure that it is safe before using. You must inspect the power supply lead, plugs and all
electrical connections for wear and damage. You must ensure the risk of electric shock is minimised by the installation of
appropriate safety devices. An RCCB (Residual Current Circuit Breaker) should be incorporated in the main distribution board.
We recommend that an RCD (Residual Current Device) is used with all electrical products. It is particularly important to
 useanRCDwithportableproductsthatplugintoanelectricalsupplynotprotectedbyanRCCB.Ifindoubtconsultaqualied
electrician. You can obtain a Residual Current Device through your Sealey dealer. You must read and understand instructions
concerning electrical safety.
1.3.1. The Electricity At Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested
byaqualiedperson,usingaPortableApplianceTester(PAT),atleastonceayear.
1.3.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance and the
safetyoftheapplianceoperator.Ifinanydoubtaboutelectricalsafety,contactaqualiedelectrician.
1.3.3.DO ensure that the insulation on all cables and the product itself is safe before connecting to the mains power supply.
1.3.4.DO ensure that cables are always protected against short circuit and overload.
1.3.5.DO regularly inspect power supply, leads, plugs for wear and damage and power connections to ensure that none is loose.
1.3.6.DO checkproductvoltageisthesameaspowersupplytobeusedandcheckthatallfusedplugsarettedwiththecorrectcapacity
fuses.
2. INTRODUCTION
Composite case with moulded rubber protection, integral battery cable storage and carry handle. LED battery condition, polarity check and
chargeindicators.Featuresindependenton/offswitchwhichallowsthepositiveclamptobeconnectedwithouttheriskofsparking.Alsotted
withanintegralKryptonworklightforuseatnight.Fittedwith12Voltpowersocketthatwillacceptany12Voltdevicettedwithacigarette
lighter type plug. Supplied with mains charger and double plug adaptor for in-car charging. RS132 has integral air compressor with pressure
gauge for accurately topping/pumping up tyres etc.
3. SPECIFICATION
Model: ................................................... RS131.V3 & RS132
Cold cranking amps: ......................................................200A
Peak amps: ....................................................................900A
Voltage: ............................................................................12V
Auxillary output: ...............................................................12V
Cable and clamp length: ............................................ 780mm
Built in compressor (RS132 only): .................................... yes
Max pressure: ............................................................... 80psi
Weight: ............................... (RS131.V3) 5.9kg (RS132) 6.5kg

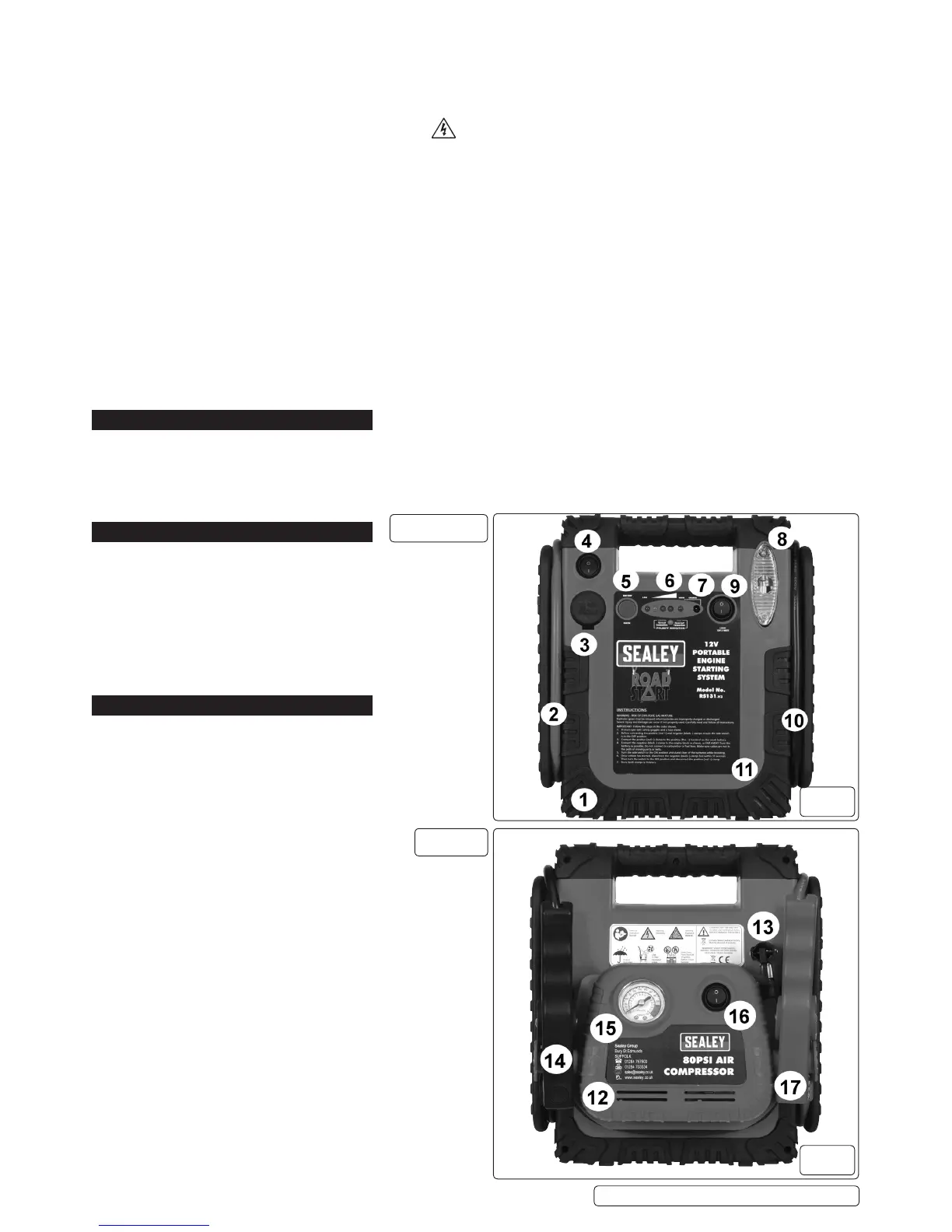

4. PRODUCT FEATURES
 (Keytogs.1,2,3&4)
1) MOULDED RUBBER PROTECTION
2) HEAVY DUTY COPPER CABLE (POSITIVE+)
3) 12VDC OUTPUT SOCKET
4) 12VDC OUTPUT ON/OFF SWITCH
5) BATTERY CHECK BUTTON
6) LED CHARGE STATE INDICATORS
7) AC CHARGING SOCKET
8) KRYPTON WORK LIGHT
9) WORK LIGHT SWITCH
10) HEAVY DUTY COPPER CABLE (NEGATIVE+)
11) COMPOSITE CASING
12) COMPRESSOR CASING (RS132 only)
13) VALVE CONNECTOR (RS132 only)
14) NEGATIVE (-) BATTERY CLAMP (BLACK)
15) COMPRESSOR PRESSURE GAUGE (RS132 only)
16) COMPRESSOR ON/OFF SWITCH (RS132 only)
17)POSITIVE (+) BATTERY CLAMP (RED)
18)POSITIVE (+) BATTERY CLAMP SAFETY SWITCH
RS131.V3
RS132
RS131.V3 RS132 | Issue 5(I) 04/01/16
Original Language Version
© Jack Sealey Limited
g.1
g.2
