6 Fuel System
6.1 General
The fuel system inspection should be performed in a well ventilated area away from heaters or
flames.
The Seamax M-22 fuel system consists in two wing fuel tanks and one central header tank.
Both wing fuel tanks feed the central header tank by gravity. From the heater tank, the fuel goes to

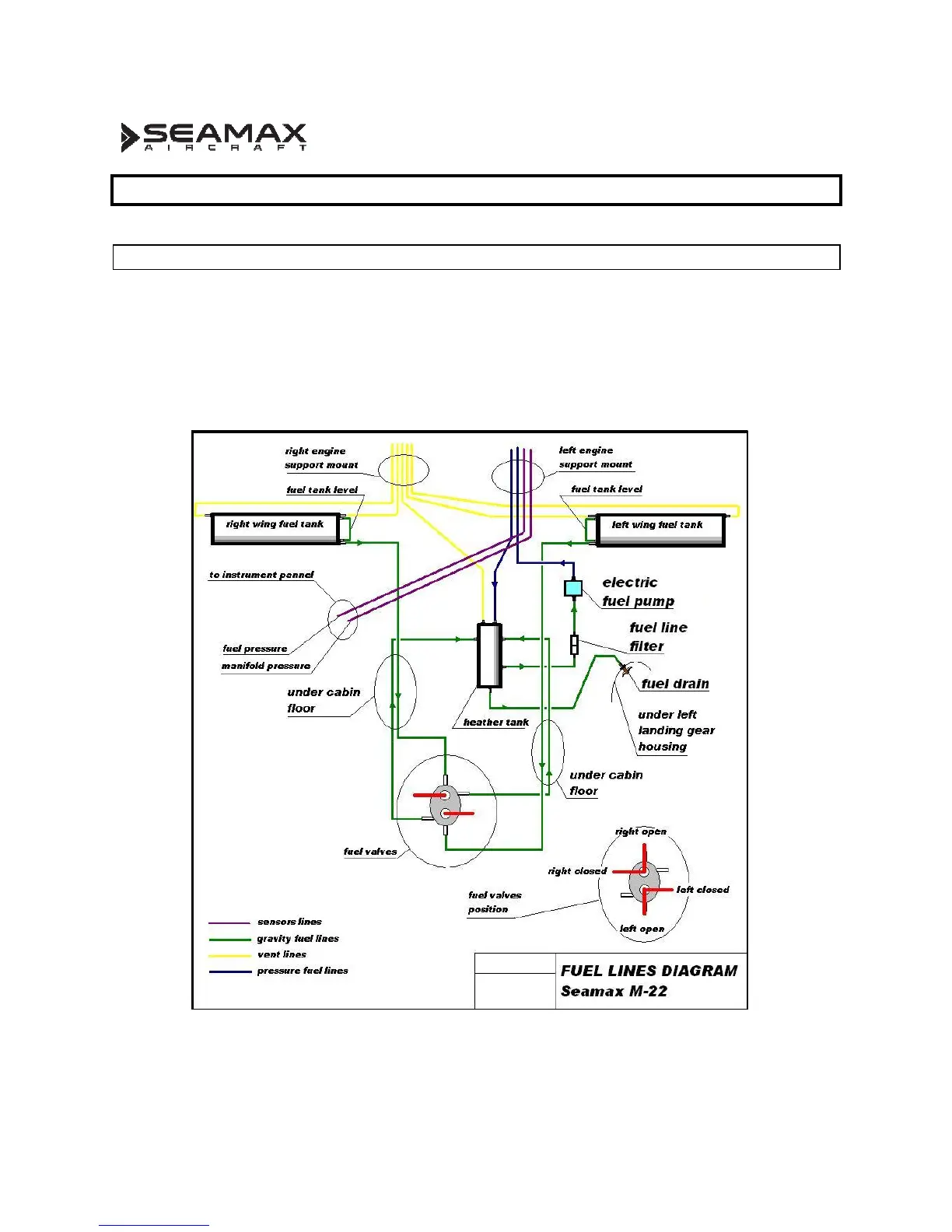

the engine mechanical fuel pump through a fuel filter and an electric fuel pump as shown in fig 26.
The header tank is located behind the luggage compartment.
