LT-14266r1.6 201870601
6/1/2018
iMAG 4700r
Mechanical Quick Start Guide
Precision Flow Measurement
An ON
I
CON Brand
Seametrics • 19026 72nd Avenue South • Kent, Washington 98032 • USA
(P) 253.872.0284 • (F) 253.872.0285 • 1.800.975.8153 • seametrics.com

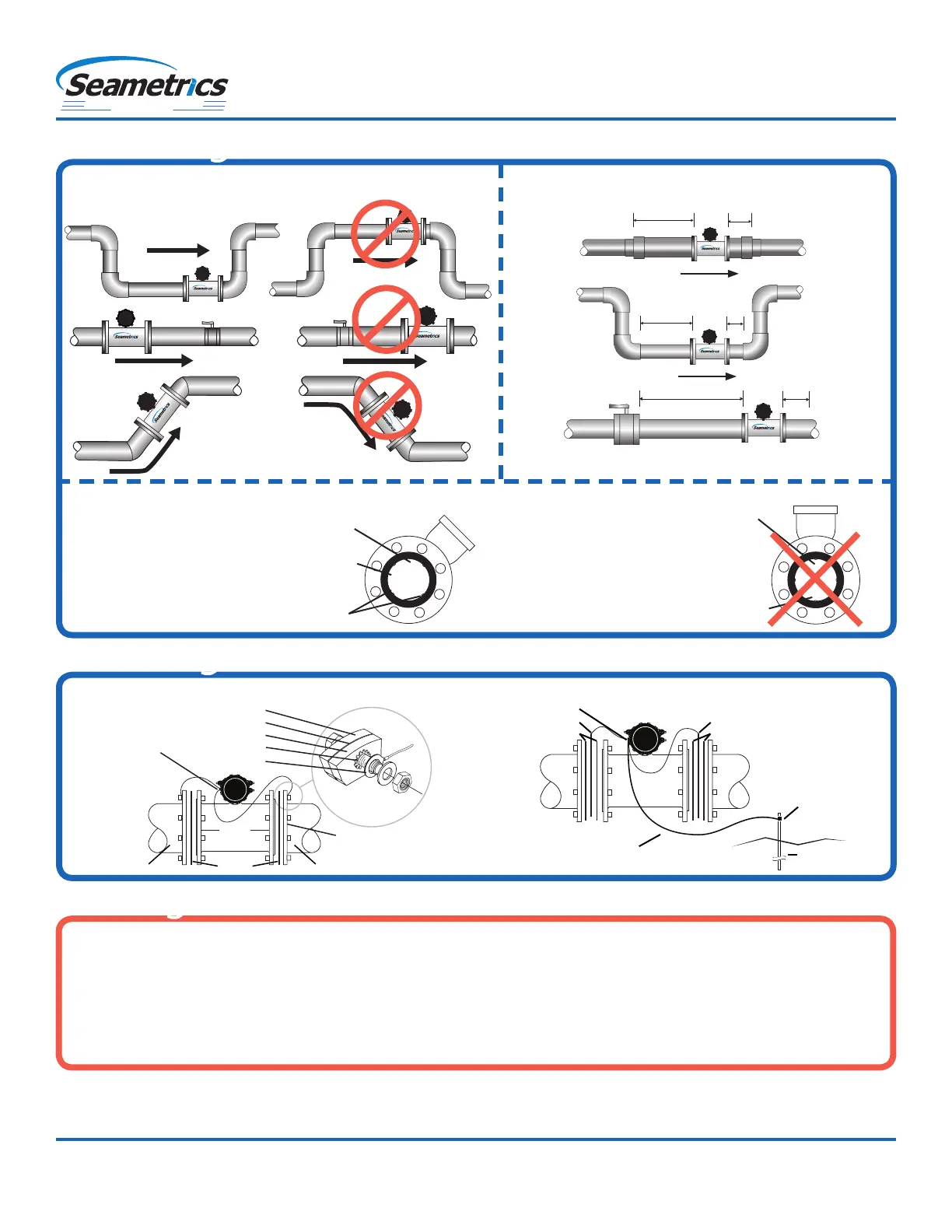

Choose a position that will ensure a full pipe.
Metal Pipe
Plastic Pipe
Grounding
Choose a position that will minimize ow distortion.
12345
5X 1X
2X 1X
5X 1X
Positioning
Not Ideal:
Air bubbles and
sediment on the
electrodes can aect
accuracy
Recommended:
Improved accuracy
results from
unimpeded electrodes
Electrode moved from
top by rotating meter
Intermittent air
bubbles miss electrode
Electrodes free from
sediment build-up
Intermittent air
bubbles pass
over electrode
Possible
sediment
build-up
Warnings
• Do not weld or ame cut within 10’ of meter. Heat will
damage electronics and liner. (Heat will void warranty.)
• Install provided full face gaskets. Failure to install gaskets
will void warranty.
• Tube must be completely aligned with adjoining anges.
• Ensure proper grounding.
• Bolts must be tightened evenly. Do not over tighten one side
to ll a gap.
• Improper sealing of cables or cable glands will void warranty.
• Install security seal during installation if regulations require.
• Backup batteries are not intended as a primary power source.
Refer to instruction manual for further details.
Refer to the Electrical Quick Start Guide or the complete instruction manual for details on wiring.
Equalization Lug
Ground Clamp
(Exothermically weld when
corrosion is a concern)
8’ Ground Rod
Earth
Grounding Ring
Gaskets
Grounding Ring
Gaskets
#6, #8, or #12 AWG Stranded
Copper Ground Wire < 5’
Plastic
Pipe
Plastic
Pipe
Equalization Lug
Meter
Flange
Pipe
Flange
Gasket
Pipe Flange
Flange Plate
Lockwasher
Metal Pipe
Metal Pipe
Meter Flange
Gaskets
