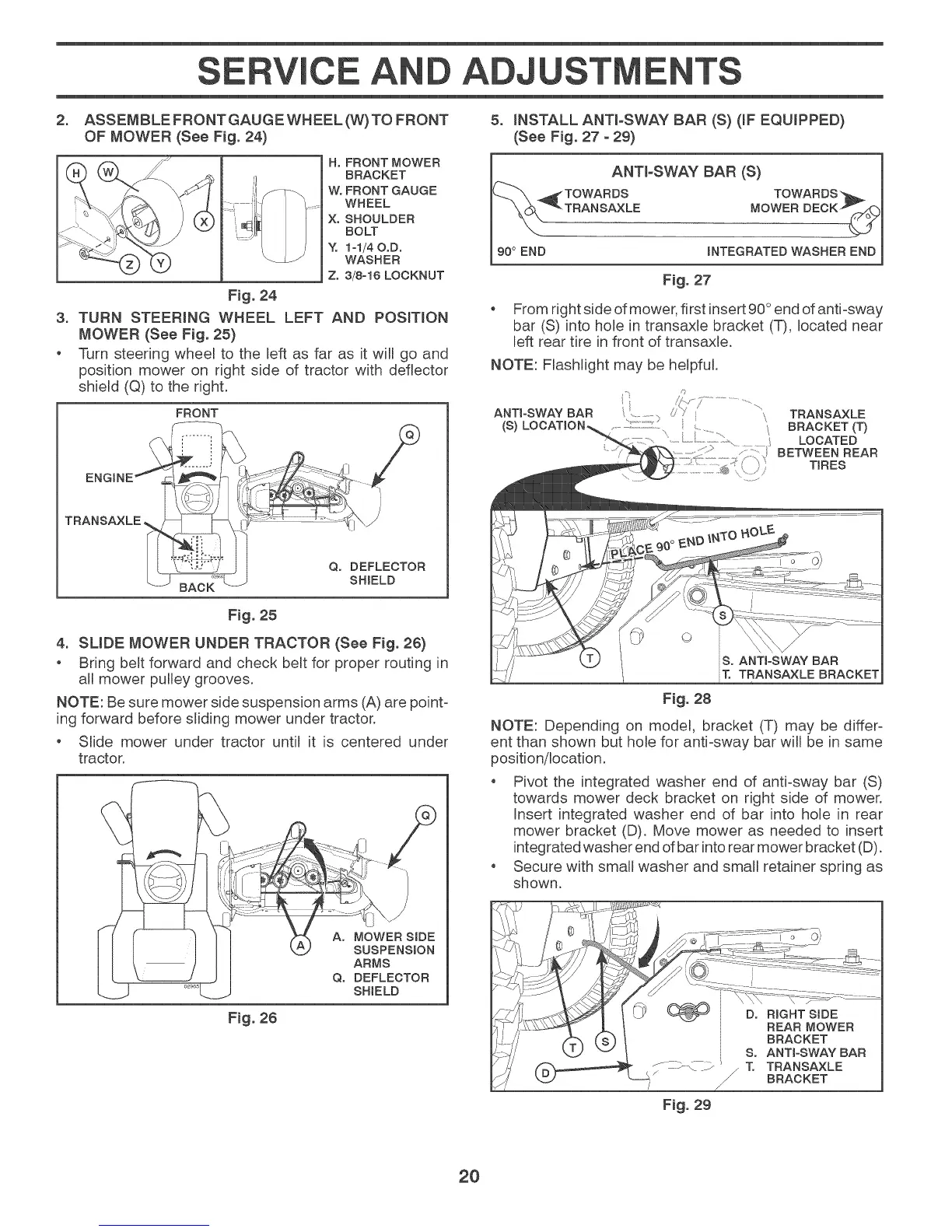

Sears YTH24V48 - FRONT GAUGE WHEEL AND ANTI-SWAY BAR INSTALLATION

EA A
2_
3_
ASSEMBLE FRONT GAUGE WHEEL (W) TO FRONT
OF MOWER (See Fig. 24)
H. FRONT MOWER
BRACKET
Wo FRONT GAUGE
WHEEL
X. SHOULDER
BOLT
Y. 1-1/4 CoD.
WASHER
Z° 3/8-16 LOCKNUT
Fig. 24
TURN STEERING WHEEL
MOWER (See Fig. 25)
LEFT AND POSLTmON
Turn steering wheel to the left as far as it will go and
position mower on right side of tractor with deflector
shield (Q) to the right.
FRONT
TRANSAXLE
Qo DEFLECTOR
SHIELD
F_g. 25
4. SUDE MOWER UNDER TRACTOR (See Fig. 26)
o Bring belt forward and check belt for proper routing in
all mower pulley grooves.
NOTE: Be sure mower side suspension arms (A) are point-
ing forward before sliding mower under tractor.
o Slide mower under tractor until it is centered under
tractor.
Fig. 26
Ao MOWER SIDE
SUSPENSION
ARMS
Q. DEFLECTOR
SHIELD
5_
i
iNSTALL ANTI-SWAY BAR (S) OF EQUIPPED)
(See Fig. 27 - 29)
ANTbSWAY BAR (S)
TOWARDS TOWARDS b.
TRANSAXLE MOWER DECK p'-
90 ° END INTEGRATED WASHER END
F_g.27
From right side of mower, first insert 90 ° end of anti-sway
bar (S) into hole in transaxle bracket (T), located near
left rear tire in front of transaxle.
NOTE: Flashlight may be helpful.
_/r> ..............................
ANTI-SWAY BAR /'Y
,_,,,,_,,-, TRANSAXLE
BRACKET (1")
(S) ...........................................................; LOCATED
..................:> ....... BETWEEN REAR
/'-','i TIRES
B. ANTI-SWAY BAR
T. TRANSAXLE BRACKET
Fig. 28
NOTE: Depending on model, bracket (T) may be differ-
ent than shown but hole for anti-sway bar will be in same
position/location.
Pivot the integrated washer end of anti-sway bar (S)
towards mower deck bracket on right side of mower.
Insert integrated washer end of bar into hole in rear
mower bracket (D). Move mower as needed to insert
integrated washer end of bar into rear mower bracket (D).
Secure with small washer and small retainer spring as
shown.
Fig. 29
20
