Cylinder Alignment Valve
7
PLUMBING DETAILS
Outboard Installations
ONLY use SeaStar Outboard Steering Hoses or a system of copper
tubing and SeaStar Outboard hoses in an outboard application, DO
NOT use extruded Nylon tubing. Use of any other hose may affect
the overall performance of the steering system, SeaStar Hoses are
designed to be used in this type of system whereas other hoses
may have the same operating and working pressures, they DO NOT
have the same expansion factors and WILL affect the performance
of the steering system.
NOTICE
If plumbing runs exceed 35’(one way) it is recommended that a
system of 3/8” copper tube coupled with SeaStar hoses to the
helm and cylinders be used.
NOTICE
ONLY use SeaStar PRO, Kevlar Hoses if you are using a SeaStar
PRO helm pump.
WARNING
POWER ASSIST USERS:
Consult Power Assist Installation Manual for plumbing details.
NOTICE
UNBALANCED
CYLINDER A
UNBALANCED
CYLINDER B
LIQUID TIE BAR VALVE

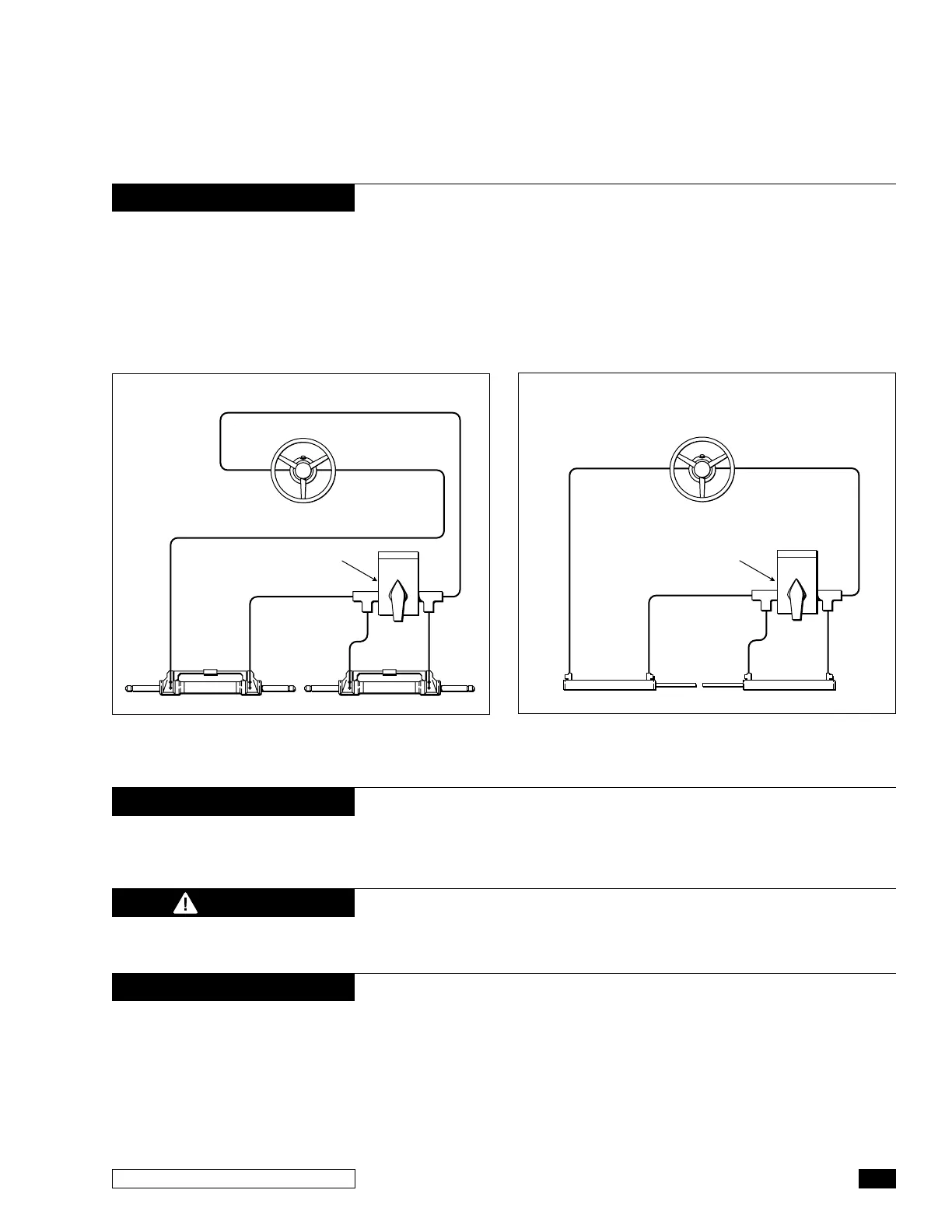

Figure 5. Side Mount (Unbalanced) Cylinder.
CYLINDER A CYLINDER B
LIQUID TIE BAR VALVE
HELM
Figure 4. Front Mount Cylinder.
HELM
To Next Page
