8
SeaStar Solutions
A liquid alignment valve (liquid tiebar) CANNOT be used in an engine
driven power assisted system. A rigid tiebar MUST be fitted, or the
power steering system must be removed from the boat. If you are
using a SeaStar Power Steering System, i.e. Engine Driven pump,
please consult your Power Steering Installation Manual for Details.
NOTE: If using SeaStar Stern Drive Cylinder HC5332, please refer to
the front mount outboard plumbing details on page 7 of this manual.
NOTICE
CYLINDER A
CYLINDER B
LIQUID TIE BAR VALVE

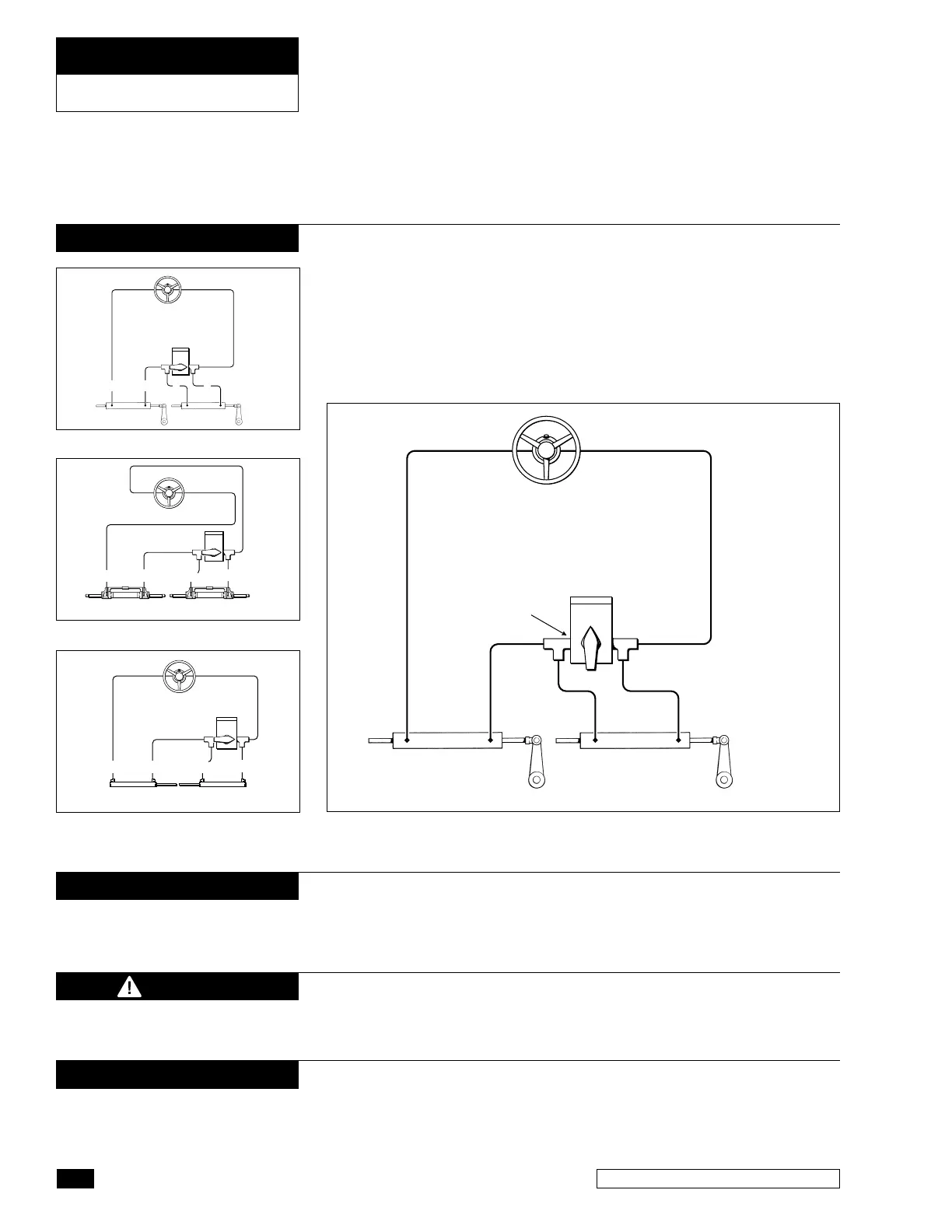

Figure 9. Stern Drive.
If plumbing runs exceed 35’(one way) it is recommended that a
system of 3/8” copper tube coupled with SeaStar hoses to the
helm and cylinders be used.
NOTICE
ONLY use SeaStar PRO, Kevlar Hoses if you are using a SeaStar
PRO helm pump.
WARNING
POWER ASSIST USERS:
Consult Power Assist Installation Manual for plumbing details.
NOTICE
HELM
STARBOARD
PORT
2 1
3
4
HELM
1
STARBOARD
PORT
234
HELM
2
PORT
143
HELM
STARBOARD
Figure 6. Stern Drive.
Figure 7. Front Mount Cylinder.
Figure 8. Side Mount Cylinder.
Non Power Steering Stern Drive and
Inboard Powered Boats
PLUMBING DETAILS
INSTALLATION INSTRUCTIONS
