Hynautic Hydraulic Engine Controls – 04 Series
PARTS LIST
HYNAUTIC CONTROLS
Ball & Tee Handle
Installation
TORQUE TO
90–110 IN-LBS
(10–12.5 Nm)
BALL HANDLE
TEE HANDLE
TORQUE TO
90–110 IN-LBS
(10–12.5 Nm)

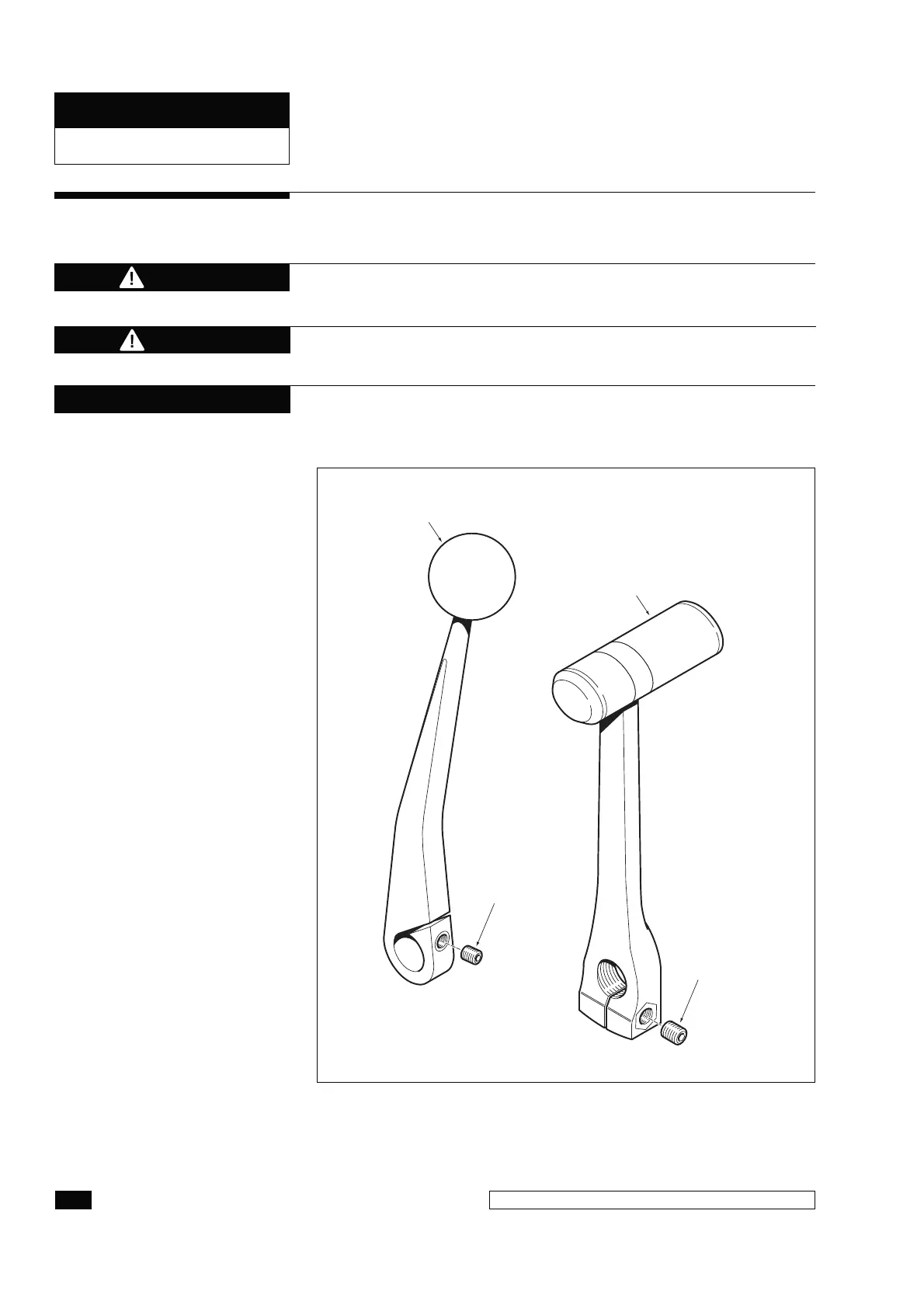

Figure 22.
Standard hand-tightening with 1/4” short arm hex key wrench will
not over-torque screw.
When Installing Ball Handle DO NOT torque screw to more than
10 ft-lbs.
CAUTION
NOTICE
When installing Tee Handle DO NOT torque screw to more than
14 ft-lbs.
CAUTION
