PARTS LIST
HYNAUTIC CONTROLS
ST-06 Throttle Slave
Assembly
2
3
4
5
6
7
8
9
10
11
12
17
20
19
16
23
26
14
13
22
22
24
25
25
21
15
1
18
18

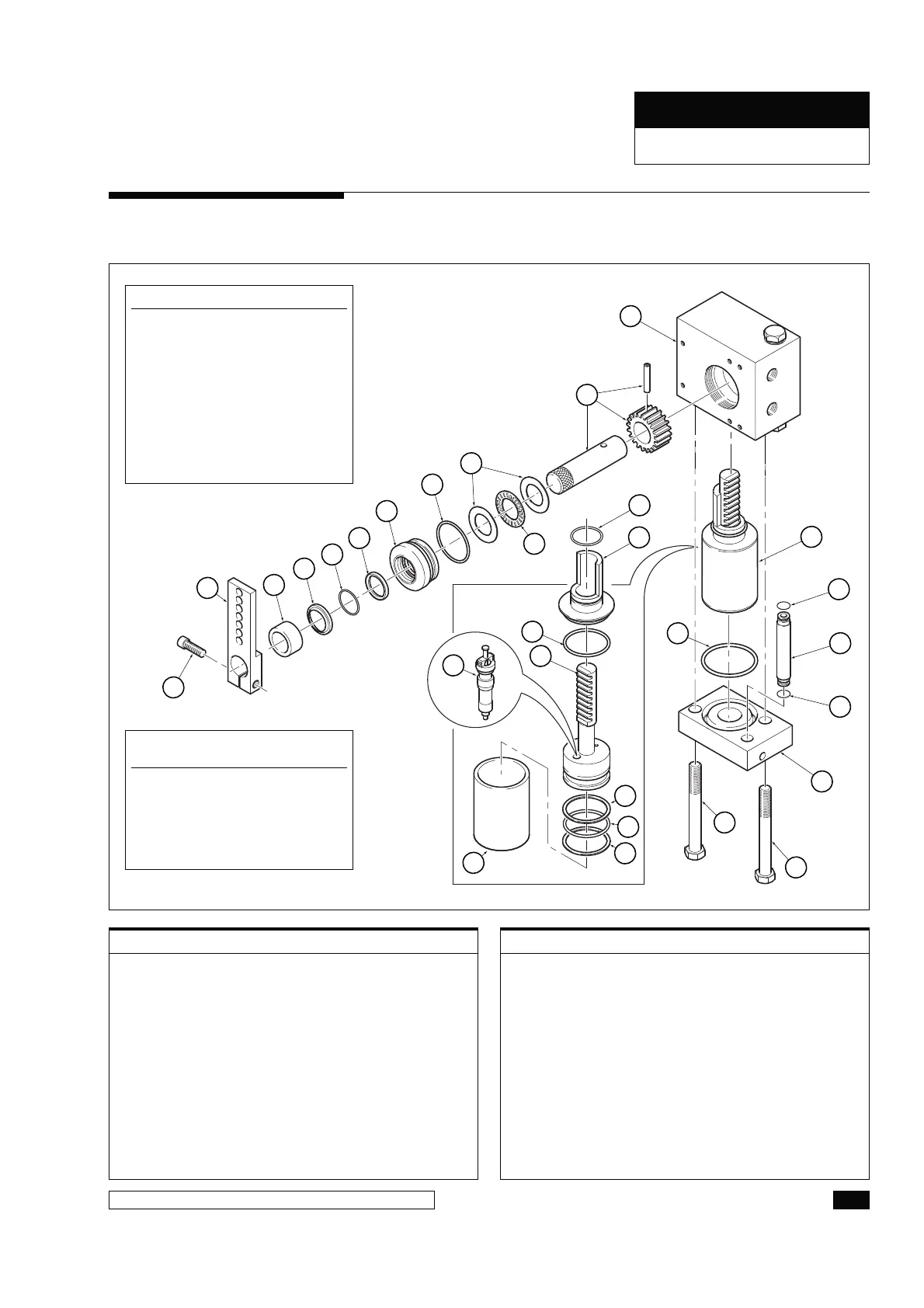

Figure 23.
ITEM PART # QTY DESCRIPTION
†
1 610024 1 Lever Arm
†
2 240057 1 Screw
3 540018 1 Spacer
*4 642921 1 Wiper
*5 223729 1 O-Ring
*6 224011 1 Quad Seal
†
7 630044 1 Bushing
*8 211027 1 O-Ring
†
9 190005 2 Bearing Race
†
10 190002 1 Bearing
†
11 720150 1 Pinion Assembly
12 901054 1 Body
13 501120 1 Cylinder Assembly
ITEM PART # QTY DESCRIPTION
*14 345926 1 O-Ring
15 560034 1 Cylinder End (Eccentric)
*16 211028 1 O-Ring
17 600070 1 Piston Assembly
*18 252125 2 Teflon Back-Up Ring
*19 211125 1 O-Ring
20 500131 1 Cylinder Tube
21 500164 1 Tube
*22 002222 2 O-Ring
*23 924022 1 O-Ring
24 520634 1 Plate
25 240717 2 Bolt
*26 160061 2 Dill Valves
*INCLUDED IN SEAL KIT ECS-06:
2 x Dill Valve 160061
2 x O-Ring 002222
1 x O-Ring 223729
1 x O-Ring 345926
1 x O-Ring 211027
2 x O-Ring 211028 (1 extra)
1 x O-Ring 924022
1 x O-Ring 211125
1 x Seal 224011
2 x Ring 252125
1 x Wiper 642921
† INCUDED IN SHIFT SLAVE REPAIR
KIT# 68352K:
1 x Lever Arm 610024
1 x Screw 240057
1 x Bushing 630044
2 x Bearing Race 190005
1 x Bearing 190002
1 x Pinon Assy 720150
*
*
*
*
*
*
*
*
*
*
*
*
†
†
†
†
†
