Hynautic Hydraulic Engine Controls – 04 Series
24
27
26
23
31
21
22
25
25
28
23
10
11
12
13
14
15
2
4
1
6
5
3
7
8
9
17
20
29
30
16
16
18
19

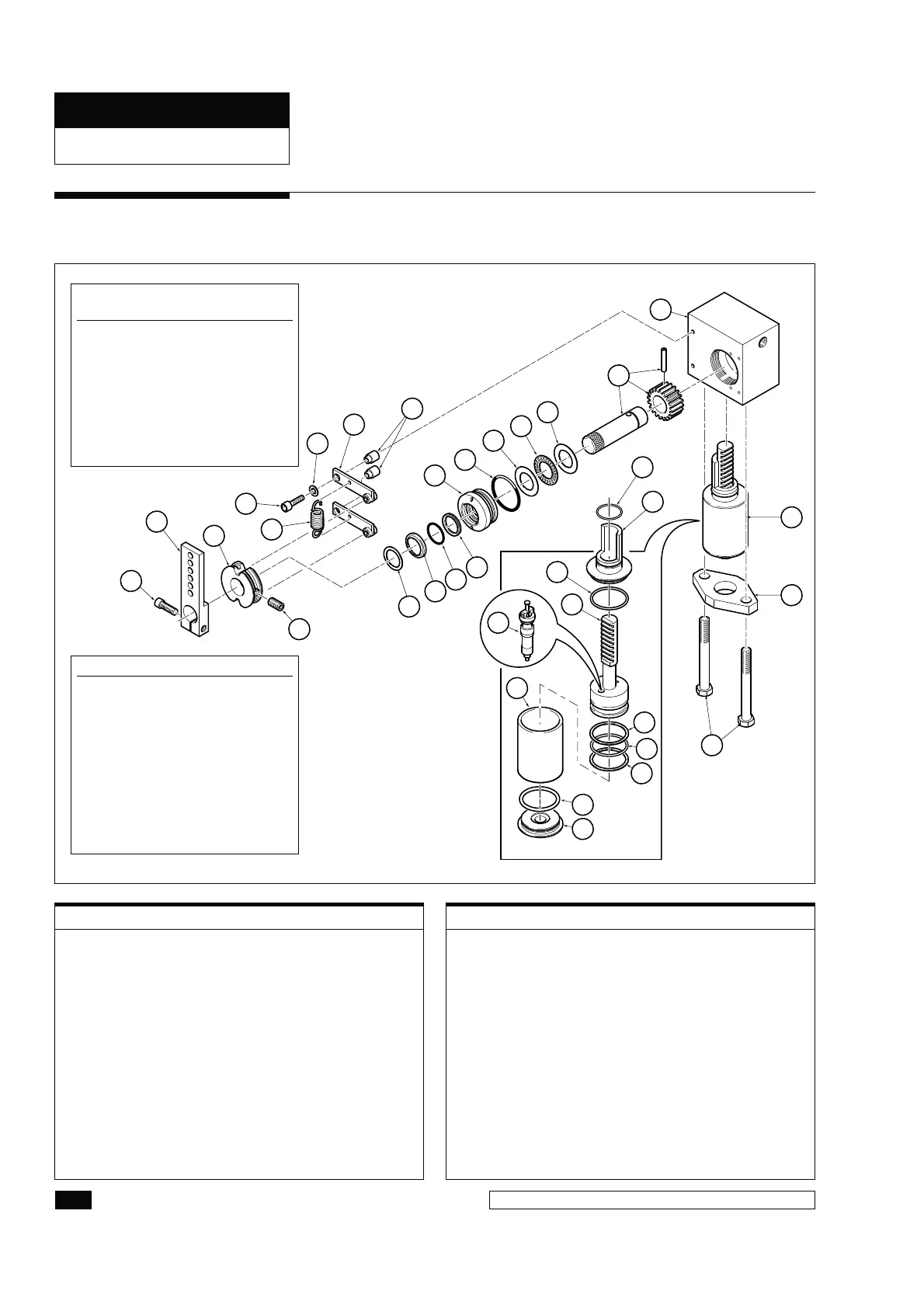

Figure 24.
ITEM PART # QTY DESCRIPTION
†
1 610024 1 Lever Arm
†
2 790323 1 Screw
†
3 730014 1 Cam Detent
†
4 240357 1 Set Screw
†
5 430296 1 Spring
6 240337 2 Screw
7 703720 2 Washer
8 730020 2 Detent Assembly
9 630051 2 Bushing
†
10 740018 1 Washer
*11 642921 1 Wiper
*12 223729 1 O-Ring
*13 224011 1 Quad Seal
†
14 630044 1 End Gland
*15 211027 1 O-Ring
†
16 190005 2 Bearing Race
ITEM PART # QTY DESCRIPTION
†
17 190002 1 Bearing
†
18 720150 1 Pinion Assembly
19 900254 1 Body
20 500120 1 Slave Cylinder Assembly
*21 345926 1 O-Ring
22 560034 1 Cylinder End
*23 211028 2 O-Ring
24 600070 1 Slave Piston Assembly
*25 252125 2 B/U Ring
*26 211125 1 O-Ring
27 500131 1 Cylinder Tube
28 560064 1 Cylinder End
29 520014 1 Plate
30 240717 2 Bolt, HHCS, 3/8”NC x 3-1/4” SS
*31 160061 2 Dill Valves (Red)
*INCLUDED IN SEAL KIT ECS-06:
2 x Dill Valve 160061
(Red)
2 x O-Ring 002222 (Not Used)
1 x O-Ring 223729
1 x O-Ring 345926
1 x O-Ring 211027
2 x O-Ring 211028
1 x O-Ring
924022 (Not Used)
1 x O-Ring 211125
1 x Seal 224011
2 x B/U Ring 252125
1 x Wiper 642921
† INCUDED IN SHIFT SLAVE REPAIR
KIT# 68352K:
1 x Lever Arm 610024
1 x Screw 790323
1 x Cam Detent 730014
1 x Set Screw 240357
1 x Spring 430296
1 x Washer 740018
1 x End Gland 630044
2 x Bearing Race 190005
1 x Bearing 190002
1 x Pinon Assy 720150
*
*
*
*
*
*
*
*
*
*
*
†
†
†
†
†
†
†
†
†
†
SS-04 Transmission Slave
Assembly
PARTS LIST
HYNAUTIC CONTROLS
