Seastar Solutions Hynautic 04 Series User Manual

26
Hynautic Hydraulic Engine Controls – 04 Series
PILOT
CHECK
VALVE
DILL
VALVE

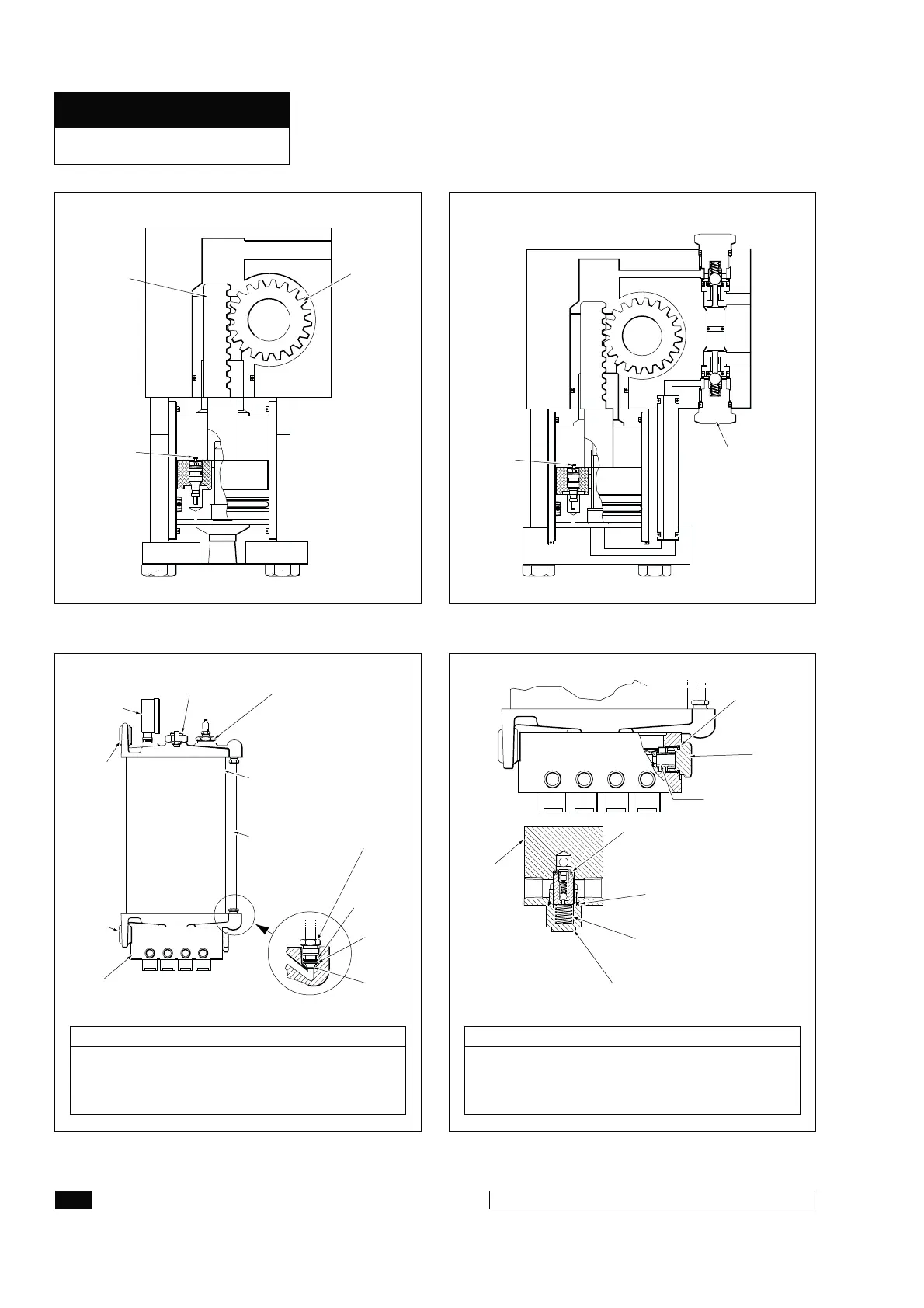

Figure 27. Throttle Slave.
DILL
VALVE
RACK
GEAR
Figure 26. Clutch Slave.
PLUG
(380574)
O-RING
(211910)
FILTER ELEMENT
(160113)
POPPET ASSY*
4 REQ’D
(450040)
O-RING* 4 REQ’D
(211016)
SPRING* 4 REQ’D
(430546)
PLUG* 4 REQ’D
(380514)
BODY
(901044)
Figure 29. Charging Valve on R-13 Integrated Reservoir.
O-RING
(211910)
INSERT
(530045)
LOCK RING
(530025)
NUT
(530015)
CHARGING VALVE
(900430)
SPACER
4 REQ’D
(540184)
GROMMET
4 REQ’D
(140029)
PRESSURE
GAUGE
(160052)
DILL VALVE
(160031)
FILL PLUG ASSY
(360020)
LABEL
(180079)
SIGHT TUBE
(150088)
Figure 28. R-13 Integrated Reservoir.
2 x O-Ring 002222
1 x O-Ring 015824
1 x O-Ring 220523
2 x O-Ring 211206
*INCLUDED IN SEAL KIT RS-01:
4 x O-Ring 014624
4 x Plug 380514
4 x Spring 430546
*INCLUDED IN FITTING KIT MCVF-08:
4 x Poppet Assy 450040
1 x Reservoir Plug 380030
1 x Inst. Sheet 180054
2 x O-Ring 211910
2 x Seal 224014
1 x Inst. Sheet 181033
SWITCH KIT SSH-1
HYNAUTIC CONTROLS
