Installation Instructions & Owner's Manual
27
SPRING (4)
430546*
PLUG (4)
380514*
O-RING (4)
014624*
BODY 900664
POPPET
ASSEMBLY(4)
450040*
MCV-04 CHARGING VALVE
MCV-04
CHANGING VALVE
FILTER PLUG
LIQUID LEVEL
SIGHT TUBE
AIR FILLER
VALVE
FILL PLUG
PRESSURE
GAUGE
DRAIN PLUG
MOUNTING
PADS

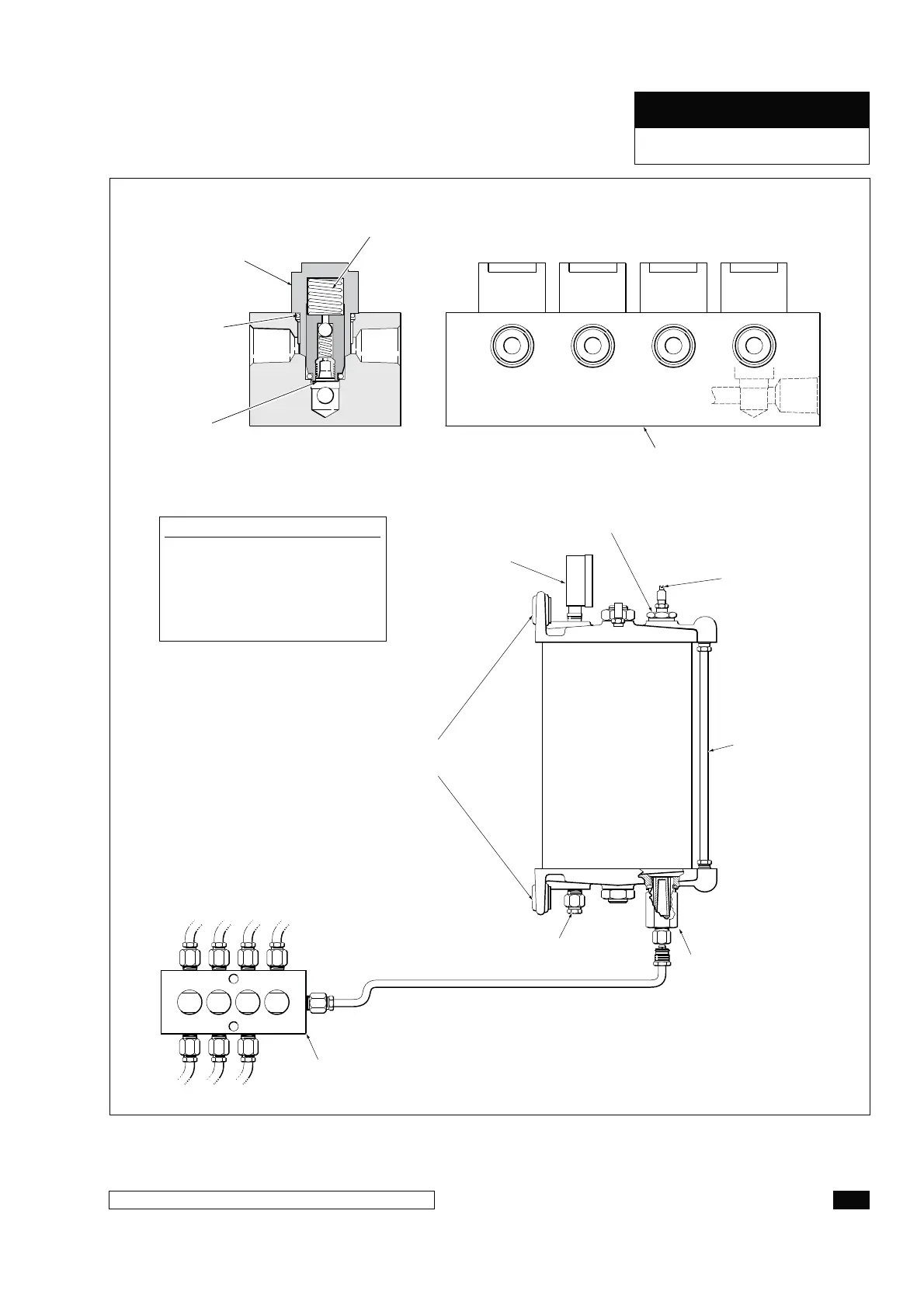

Figure 30. R-04 Reservoir with MCV-04 Charging Valve.
*INCLUDED IN FITTING KIT MCVF-08:
4 x O-Ring 014624
4 x Plug 380514
4 x Spring 430546
4 x Poppet Assy 450040
1 x Reservoir Plug 380030
1 x Inst. Sheet 180054
SWITCH KIT SSH-1
HYNAUTIC CONTROLS
