Seastar Solutions Hynautic 04 Series User Manual

Installation Instructions & Owner's Manual
5
TO CONTROL STATIONS
NYLON TUBING
5/16" O.D. N-2
BLEEDER ASSEMBLY
(690010)
1/4" PIPE NIPPLE
(690551)
HYNAUTIC TUBE FITTING ASSEMBLY
NUT (530015)
LOCK RING (530025)
INSERT (530045)
O-RING (002222)
1/4" PIPE TEE
(690441)
78˚
CONTROL ARM MAY BE ROTATED
TO ANY ANGLE ON SHAFT
ADAPTER 1/4" PIPE X 5/16 TUBE
(530175)

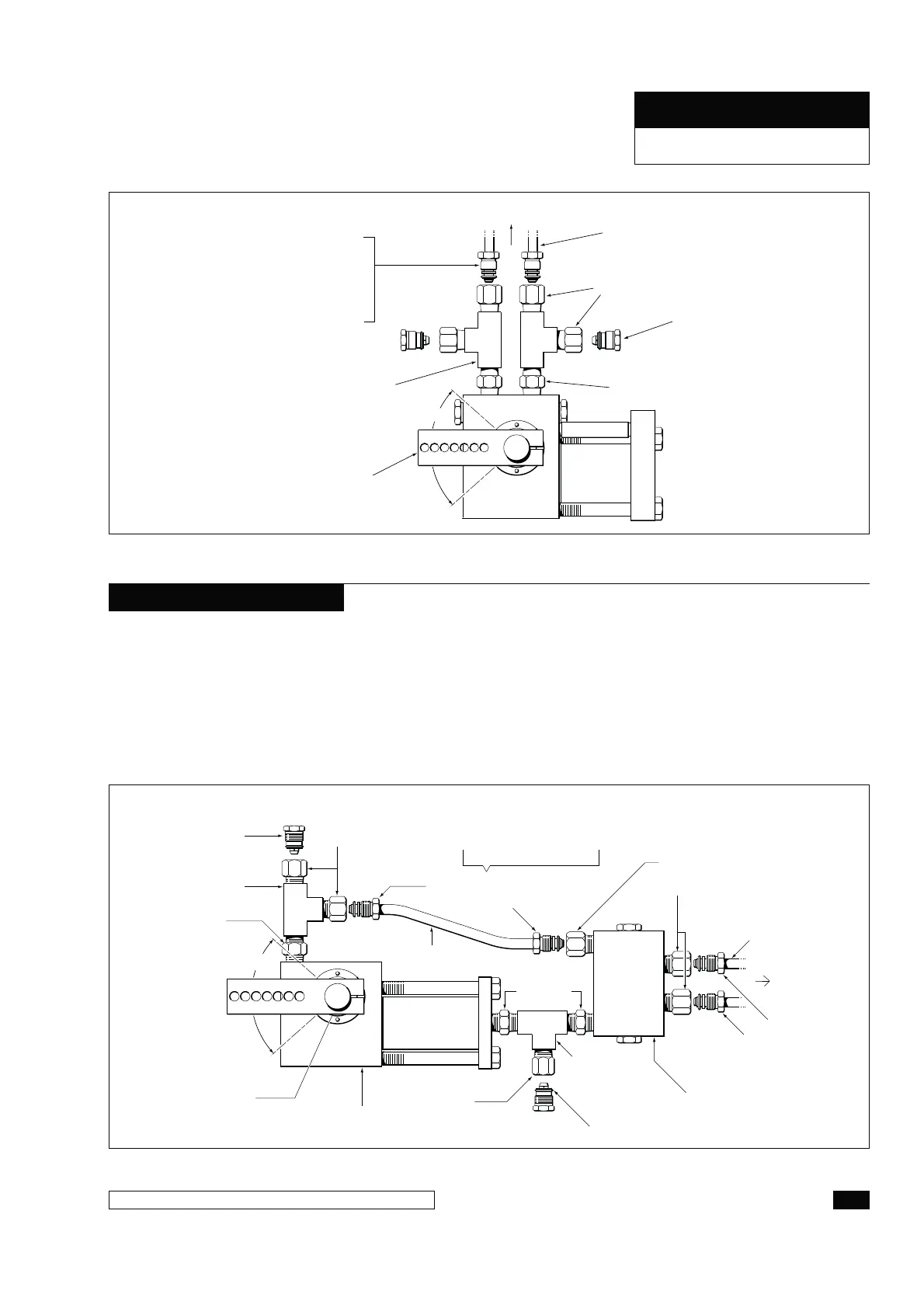

Figure 5. ST-06 Integrated Throttle Slave with Tee and Bleeder Valve Installation.
Tube connectors are installed on the tubing per instructions under
“Tubing Installation” and “Connection.”
11Ê1Ã}Ê>ÊÃÀÌÊ«iViÊvÊÌÕL}Ê«ÀÛ`i`]ÊViVÌÊÌiÊ«iÊ«ÀÌÊÊ
ÌiÊÌiiÊÌÊÌiÊ-ÓÊ«ÀÌÊÊÌiÊVÕÌÊÛ>Ûi°Ê-iiÊ}ÕÀiÊÈ°Ê-iiÊ
}ÕÀiÊ£xÊvÀÊ««iÀÊ/ÕL}ÊViVÌ°®Ê*Õ}Ê«iÊwÌÌ}ÃÊ>ÌÊ
ÌiÊ6£Ê>`Ê6ÓÊ«ÀÌð
12Ê6iÀvÞÊ>ÊwÌÌ}ÃÊÃÌ>i`Ê>ÛiÊLiiÊÌ}Ìii`°Ê,i«i>ÌÊÌiÃiÊ
ÌÀÌÌiÊÃ>ÛiÊÃÌ>>ÌÊ«ÀVi`ÕÀiÃÊvÀÊÌiÊÃiV`Êi}i°
NOTICE
BLEEDER
ASSEMBLY
(690010)
1/4" PIPE TEE
(690441)
NIPPLE 1/4" PIPE
(690551)
ST-04
THROTTLE SLAVE
CONTROL ARM MAY
BE ROTATED TO ANY
POSITION ON SHAFT
ADAPTER 1/4" PIPE
5/16" TUBE
(530175)
ADAPTER 1/4"
PIPE 5/16" TUBE
(530175)
1/4" PIPE TEE
(690441)
ASSEMBLY
STV-10 LOCK-OUT VALVE
(950119)
ADAPTER 1/4" PIPE
5/16" TUBE
(530175)
NYLON TUBING
5/16" O.D. N-2
TO CONTROL
STATIONS
HYNAUTIC TUBE
FITTING ASSEMBLY
NUT (530015)
LOCK RING (530025)
INSERT (530045)
O-RING (002222)
NIPPLE 1/4"
PIPE
(690551)
NYLON TUBING
5/16" O.D. N-2
HYNAUTIC TUBE
FITTING ASSEMBLY
78˚
S1 S2 V1 V2
Figure 6. ST-04 Throttle Slave with STV-10 Lock-Out Valve.
COMPONENT INSTALLATION
HYNAUTIC CONTROLS
