Figure 3. Jackplate to transom connection.
Follow the outboard engine manufacturer’s recommendations for
tightening torque.
WARNING
Use of non-approved bolts, nuts
and washers may lead to
separation of engine from boat.
WARNING
4. Using a torque wrench, tighten the nuts to the manufacturer’s
recommended torque.
Record the torque values here for future reference.
ft-lbs. Nm.
4 X WASHER
JACKPLATE TRANSOM
BRACKET
4 X BOLT
4 X WASHER OR TRANSOM
STIFFENER
NOTE
ALL HARDWARE TO BE SUPPLIED
OR APPROVED BY THE OUTBOARD
ENGINE MANUFACTURER
TRANSOM
4 X NUT WITH NYLON
LOCKING FEATURE

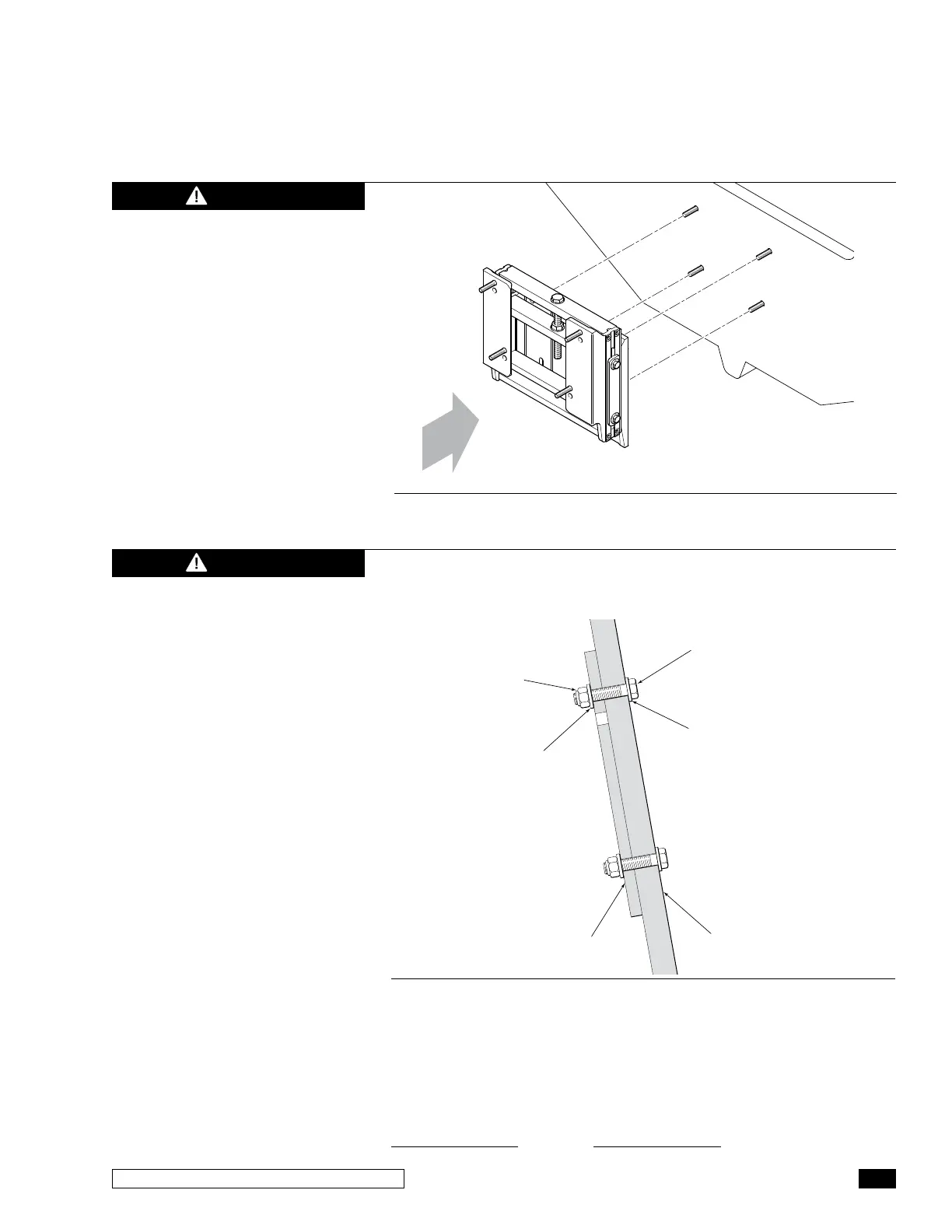

Figure 4. Jackplate to transom connection.
