SeaStar Manual Jackplate
1. Using an appropriate hoist and lifting eye, lift the outboard
into place.
2. Select the hole set on your outboard engine that will best suit
the boat and application.
3. Move the engine forward on the hoist while feeding the bolts
into the mounting holes.
4.
Install the washers and nuts and tighten. Ensure approved bolts,
nuts and washers are used. See Section 2.1.
5. Using a torque wrench, tighten to 90 ft-lbs. (122 Nm) or to
engine manufacturer's recommended value for installation on
Jackplate.
CAUTION
Perform the Clearance Checks prior to water testing. See Section 2.5.
2.3 Mount Outboard to Jackplate
WARNING
The MAXIMUM supported dry
engine weight is 585 lbs.
WARNING
All engine mounting hardware
must conform to the standards
specified in Section 2.1.
NUT
WASHER

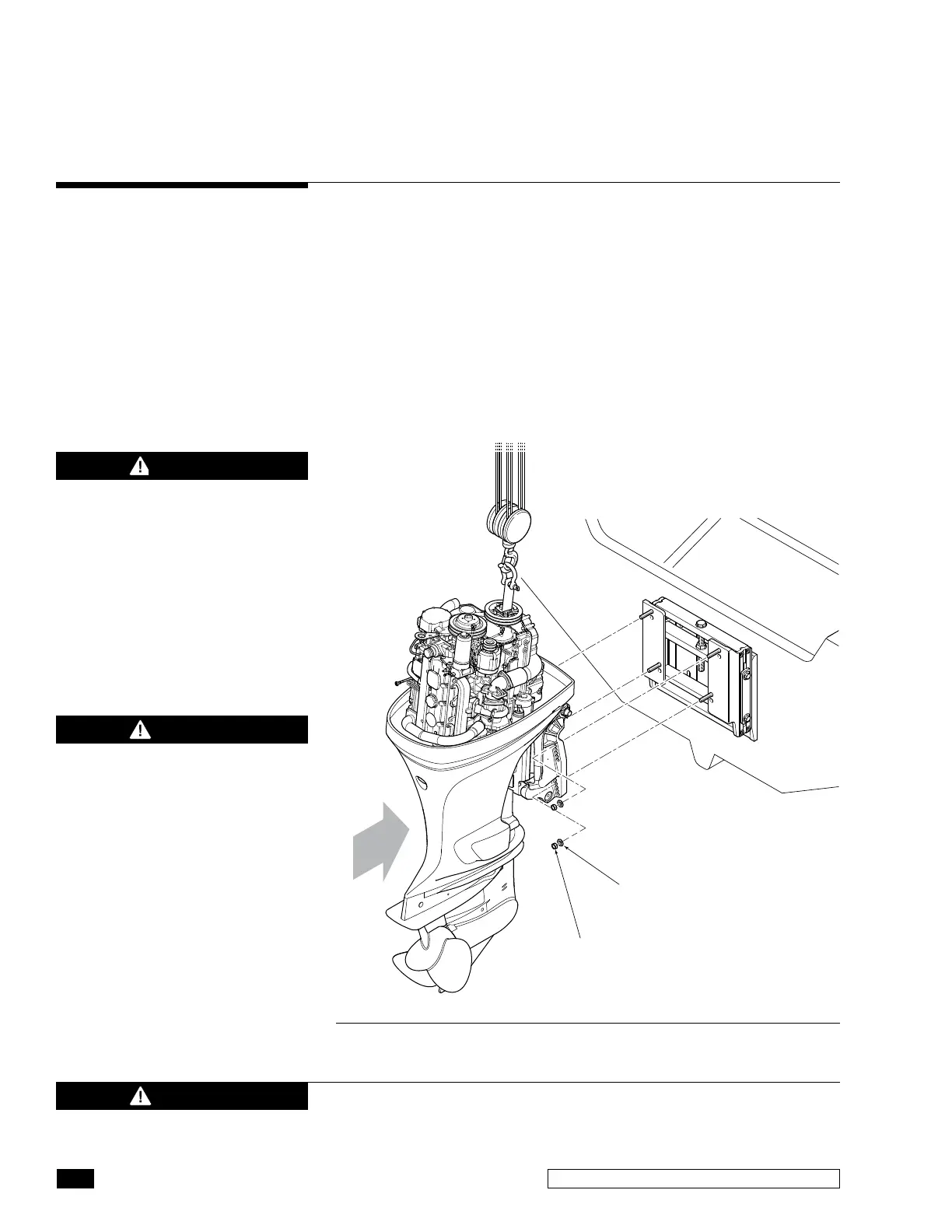

Figure 5. Outboard installation.
