VACUUM MAINTENANCE
Changing the Filter Bag - Figure 10
T
o change the filter bag, pull the cover release flap for-
ward (#5 on page 6) and lift the cover (7) from the bag
housing. The cover release flap must remain in a forward
“pulled-out” position to change filter bags and lock them
into place. Squeeze the clamps on both sides of the filter
bag sealing plate, slide the plate (28) from the holder (29)
and push the cap on to seal the bag. Slide the sealing
plate (28) of a new bag into the holder and push it in firm-
ly. Re-insert cover into bag housing, push it forward, then
lock it in place by pushing down the cover release flap. You
may find it convenient to store the bag cap inside the bag
housing below the filter bag.
Changing the Pre-motor Microfilter - Figure 11
The pre-motor microfilter (30) needs to be changed when
it becomes extremely dirty or clogged with dust, or after
approximately 20 filter bags have been used. To change
the pre-motor microfilter, pull the cover release flap (#5
on page 6) forward and lift the cover from the filter bag
housing. Then, slide the filter out at the bottom. To
replace, lift the safety lever (31) and slide the new filter in
using the tracks as guides.
Changing the Brush Roller(s) - Figure 13 (X4),
Figure 13a (X5)
To change the brush roller(s) (35 or 35a), push the but-
ton(s) (36 or 36a), remove the side plate(s) (37 or 37a),
turn the brush(s) clockwise a quarter of a turn, and pull
the old brush roller(s) out. Slide the new brush roller(s)
into the brush housing and turn it until it locks into posi-
tion. While slightly pushing the button(s) (36 or 36a),
press the side plate(s) (37 or 37a) back into the locked
position.

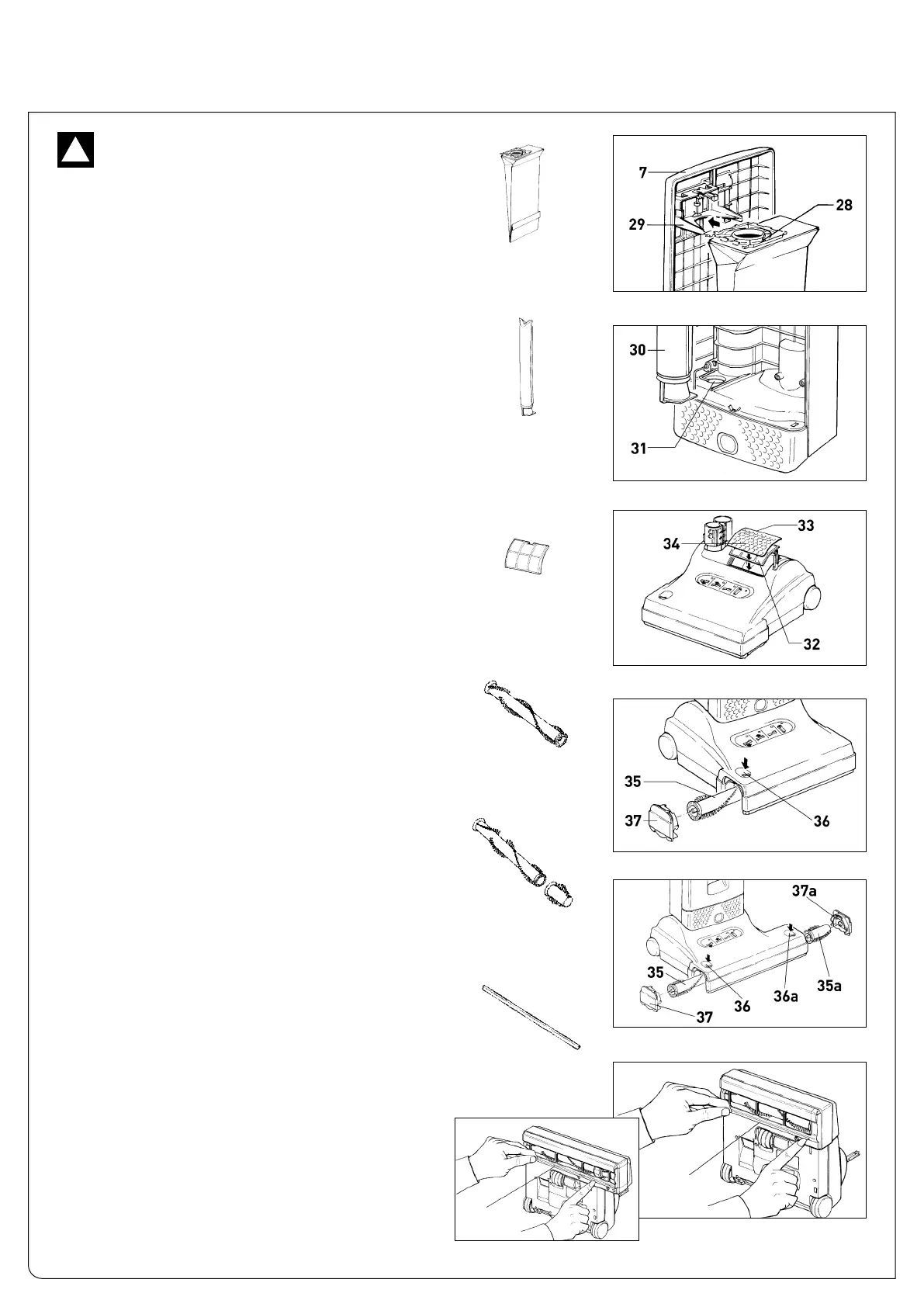

Figure 10
Figure 11
Figure 12
Figure 13 (X4)
Figure 14 (X4)
Always unplug vacuum from outlet
before dismantling any part of machine!
!
SEBO Ultra
F
ilter Bags
Part #5093AM
Pre-motor
Microfilter
Part #5036AM
Exhaust Filter
Part #5143
Brush Roller (X4)
Part #5010AM
Changing the Sealing Strip - Figure 14 (X4),
Figure 14a (X5)
The sealing strip (39) is located just behind the brush
roller opening. The sealing strip seals the power head to
hard floors to prevent kick-back of debris while vacuum-
ing. To replace a worn sealing strip, push the release but-
ton, remove the side plate (36 and 37 in figure 13 & 13a)
and slide old strip out. Insert the new strip into the slot
and slide into place.
Changing the Exhaust Filter - Figure 12
After 20 bags have been used, change the exhaust filter
(32). To remove the exhaust filter, push the catch (33)
backward and remove the filter cover (34) and exhaust fil-
ter. Insert the new filter and replace the filter cover.
