AUTOMATIC X7 | X7 PREMIUM | X8 SCHEMATIC AND PARTS LIST
#91542AM X7 Premium Arctic White Machine
Pos. Part # Description
1
5642AM Handle complete, gray black/white
2 5297GSAM Handle grip, gray black, incl. pos. 7+9
3
5359GS Grommet
4
5450DG Power supply cord
5 05113 Switch w/screws
6
5160WE Switch cap, white
7
5161GS Switch cap holder, gray black
8 5162 Cable clamp
9
5253UL Wire-antistatic
10 5216ER Handle cable
11 5187 Handle tube X
1
2 5040SB Hose X, cpl., silver
13 5045GS Cleaning wand, gray black
1
4 51059GS Cover, gray black
1
5 5319 Bag holder spring
16 5091 Safety catch spring
17 5360 Safety catch
1
8 5324 Bag holder cpl., incl. pos. 16+17
19 51053SB Cover release, silver
2
0 51052SB Handle cover, silver
2
1 51051WESB Front cover complete, white
22 51050WEUL Bag housing X, cpl., white
2
3 5380GS Internal cover cpl., gray black
incl. pos. 40+41
2
4 1073 Clamp
2
5 5208 Filter safety catch
26 5210 Return spring
27 5164 Cable clamp
2
8 51003SB Bag housing locking catch, silver
2
9 1859SB Handle catch, silver
3
0 5721WE Carrying handle, white
31 5703WE Cable hook, white
3
2 5146 Stop spring
3
3 5424SB Retaining ring, silver
34 5217ER Internal cable
35 5266 Cable clamp
36 5842 Seal
37 5289 Seal
38 1823GS Attachment clip, gray black
39 5084 Spring for locking rod
40 5083 Locking rod
41 51002WE Bag housing bumper base, white
45 1092GS Crevice nozzle, gray black
46 1491GS Upholstery nozzle
50 0102ER Screw F 3.9x13 DIN 7981
51 0103ER Screw C 3.9x16 DIN 7981
52 0129ER Screw M 4x12
53 0161ER Clip 4, DIN 6799
54 01036ER Screw 4x14, Torx 20
55 5460GS Mounting clip with screw
56 1387GS Dusting brush
60 5093AM Ultra filter bag pack
61 5036AM Pre-motor microfilter
#91543AM X7 Premium Graphite Machine Exceptions
1 5644AM Handle cpl., gray black/silver
6 5160SB Switch cap, silver
21 51051GSSB Front cover cpl., gray black
22 51050GSUL Bag housing cpl., gray black
30 5721GS Carrying handle, gray black
31 5703GS Cable hook, gray black
41 51002GS Bag housing bumper base, gray black
#91540AM X7 Premium PET - Black Machine Exceptions
1 5640AM Handle complete, black/silver
2 5295AM Handle grip black, incl. pos. 7+9
3 5359SW Grommet, black
6 5160SB Switch cap, silver
7 5161SW Switch cap holder, black
13 5045SW Cleaning wand, black
21 51051SWSB Front cover cpl., black
22 51050SWUL Bag housing X cpl., black
23 5380SW Internal cover, incl. pos. 40+41
30 5721SW Carrying handle, black
31 5703SW Cable hook, black
38 1823SW Attachment clip, black
41 51002SW Bag housing bumper base, black
45 1092SW Crevice nozzle, black
46 1491SW Upholstery nozzle, black
62 6179ER Hand-held turbo brush
63 1495AM Extension hose
64 5425AM Anti-odor charcoal microfilter
#91503AM X7 Red Machine Exceptions
1 5644AM Handle cpl., gray black/silver
6 5160SB Switch cap, silver
21 51051DRSB Front cover cpl., dark red
22 51050DRUL Bag housing cpl., dark red/gray black
30 5721DR Carrying handle, dark red
31 5703DR Cable hook, dark red
41 51002GS Bag housing bumper base,
gray black

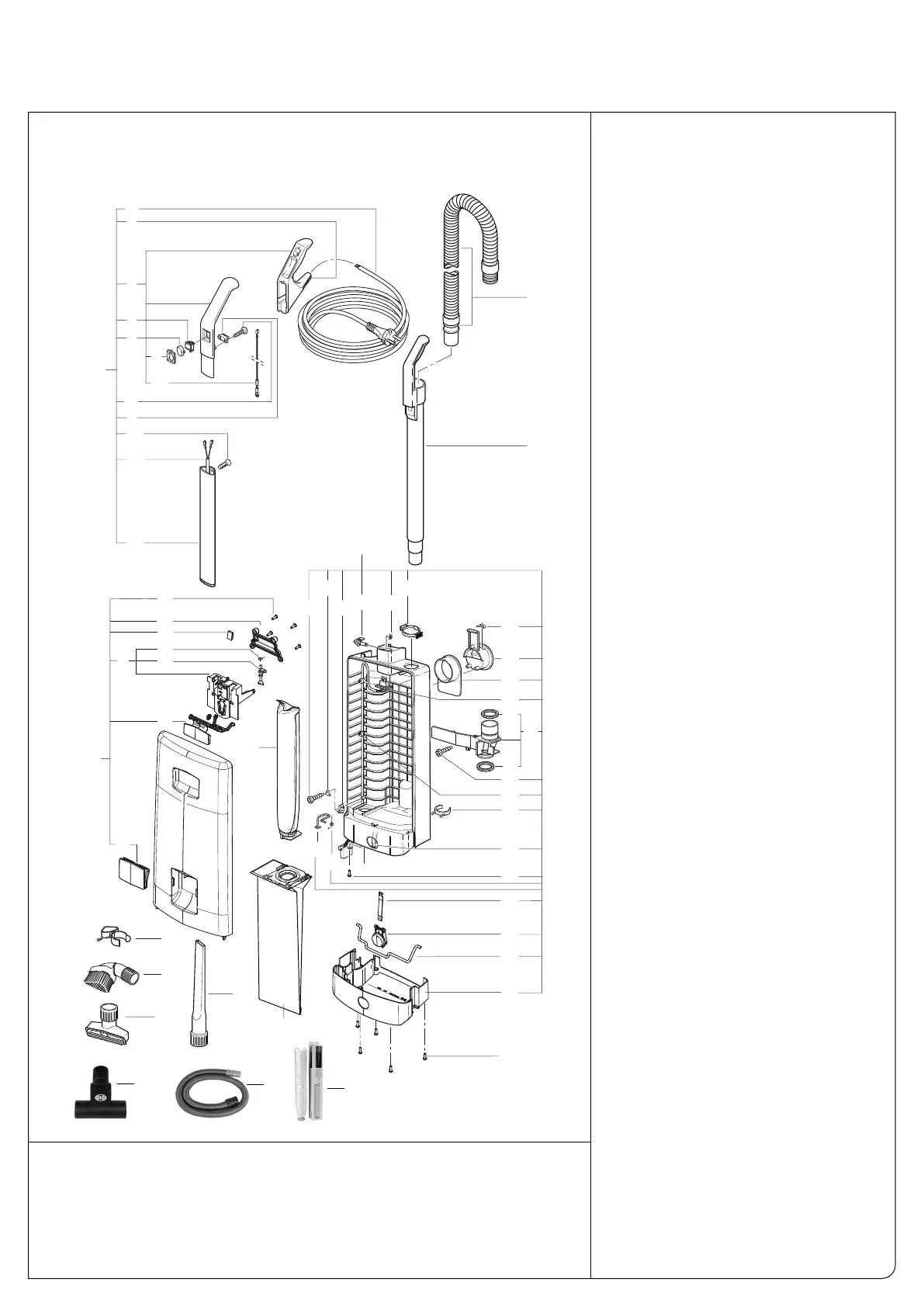

Bag Housing and Handle
12
13
45
31
50
23
36
46
1
9
60
7
2
3
5
6
51
8
11
5
2
10
4
30
32
38
54
35
2
4
22
3
3
27
50
39
34
29
54
61
25
37
26
40
28
54
41
21
18
17
1
5
1
4
54
16
20
19
39
56
55
#91542AM X7 Premium Arctic White (white/gray black)
#91543AM X7 Premium Graphite (gray black/silver)
#91540AM X7 Premium PET Black (black/silver)
#91503AM X7 Red (dark red/silver)
#91566AM X8 Blue (dark blue/silver)
#91566AM X8 Blue Machine Exceptions
1 5644AM Handle complete, gray black/silver
6 5160SB Switch cap, silver
21 51051DBSB Front cover cpl., dark blue
22 51050DBUL Bag housing cpl., dark blue
30 5721DB Carrying handle, dark blue
31 5703DB Cable hook, dark blue
41 51002DB Bag housing bumper base, dark blue
62
63
64
To Next Page
