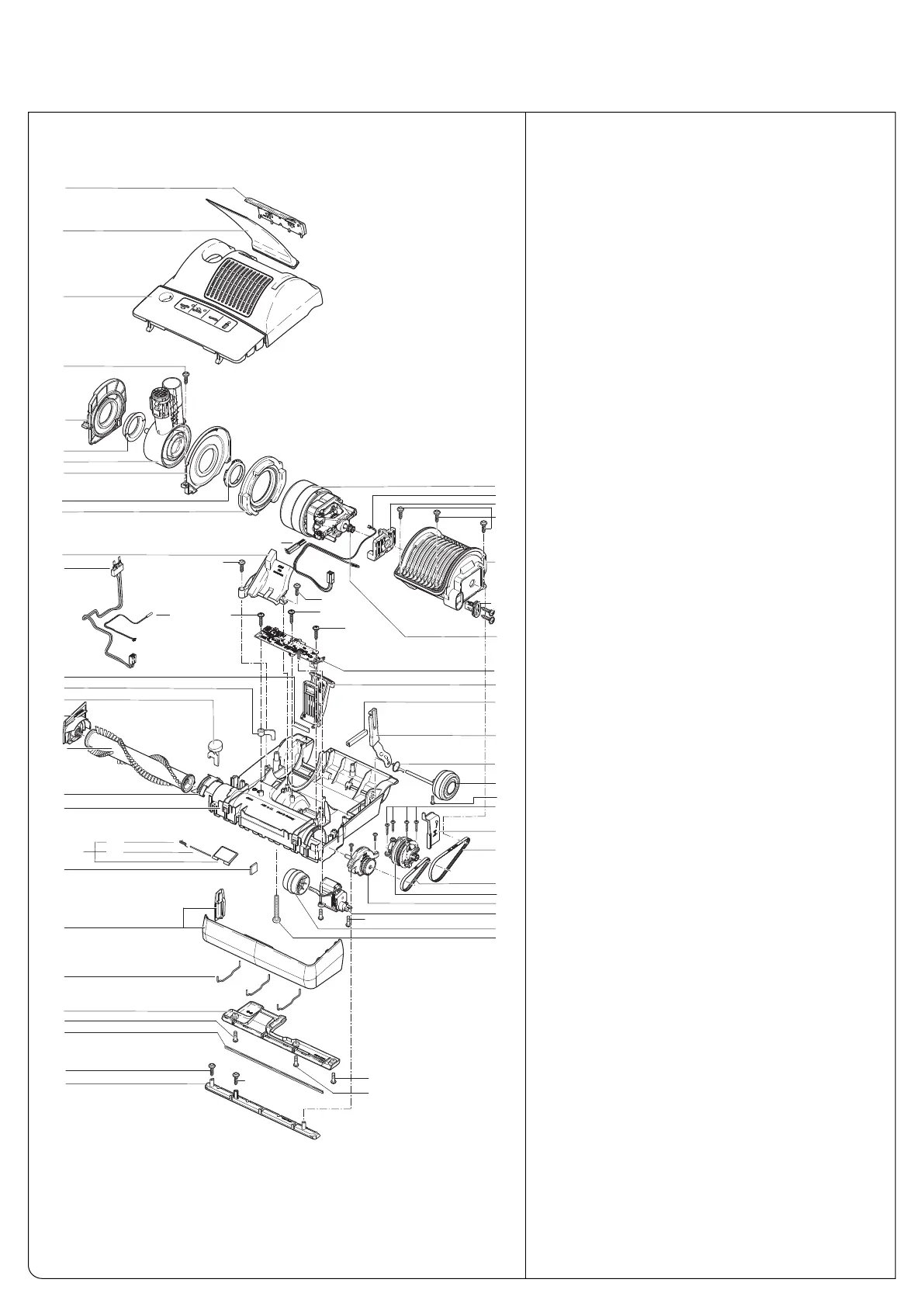

AUTOMATIC X7 SCHEMATIC AND PARTS LIST
#
91503AM X7 Red Machine
Pos. Part # Description
1
00 52136DRSE Power head cover, cpl., dark red/silver
101 52038ER Exhaust filter
1
02 52029DR Exhaust filter cover, cpl., dark red
1
03 52018ER Swivel neck support r. h.
104 5101 Swivel neck bearing r. h.
1
05 52023ER Swivel neck assembly, cpl.
1
06 52020ER Swivel neck support l. h.
107 5717 Swivel neck bearing l. h.
1
08 52013 Motor support seal, DOMEL
1
09 52194ER Vacuum motor 120V/12 amps
109a 05117S Carbon brush set
1
10 52040ER Cable set motor
1
11 5100 Rubber mounting, DOMEL
112 52059UL Motor housing
1
13 52011ER Belt adjust, cpl.
1
14 5462 Motor pulley 2MR
115 52115ER Cover for air channel
1
16 52199ER Cable set swivel neck, incl. connector support
117 52103 Reed switch swivel neck support
1
18 5870ER PCB power supply/controller X7/8 100-120V
119 52009OR Foot pedal, cpl., orange
120 52052 Felt strip
1
21 52054 Cable guide
122 52034DR Brush roller release knob r.h., dark red
123 52112 Buffer motor housing
1
24 52021ER Support lever
125 5107-1 Support spring
126 52102GS Wheel, cpl. with axle
1
27 52032GS Bearing block r.h., gray black
1
28 5010AM Brush roller, blue bristles
129 52033ER Brush roller release ring with spring
130 52195GS Chassis X7 cpl., gray black, incl. pos. 120+123
w
/out bumper
131 5112SW Motor pulley cover
132 5463 Belt 2MR-310-6
1
33 5110 Belt 219 3M HTDII-6
1
34 52108 Sensor, cpl.
135 52111ER Bearing block l. h., cpl.
136 5172OR Access door, incl. pos. 137+138, orange
137 5304 Access door spring
138 5303 Access door axle
139 5155GS Rubbing plate
140 5060ER Servo motor with gear box
141 5174GS Pile adjustment wheel
142 52050GS Bumper set, X7, gray black
143 5402 Wire tie
144 52110GS Rear bottom plate X7, cpl., incl. pos. 145+160
145 5400-1 Sealing strip
146 50404GSER Front bottom plate X7, cpl.
160 01029ER Screw C2, 9x13
161 01016ER AMTEC screw, 4.0x16 TORX 20
162 0176ER Screw AM 4x30 DIN 7985TL
163 0104ER Screw C 3.9x25 DIN 7981
164 0102ER Screw F 3.9x13 DIN 7981
165 0197ER Screw M 4x12 Z1
1
00
1
01
1
02
113
1
09
1
10
111
118
119
125
1
60
126
132
133
135
131
134
162
3x
141
140
165
165
112
122
121
128
127
139
142
144
146
1
07
116
103
124
1
04
105
106
1
08
115
137
138
136
143
161
145
161
160
160
109a
163
4x
123
120
129
130
165
161
161
1
61
3
x
161
1
64
114
164
2x
1612x
164
117
Power Head
#91503AM X7 Red (dark red/silver)

Sebo AUTOMATIC X7 Specifications

General

Product type	Upright vacuum
Dust capacity	5.3 L
Product color	Red
Dust container type	Dust bag
Removable handheld vacuum	No
Power source	AC
Maximum input power	890 W
Annual energy consumption	36.1 kWh
Animal care	Yes
Noise level	80 dB
Cleaning type	Dry
Cleaning surfaces	Carpet, Hard floor, Stair steps, Upholstery
Vacuum air filtering	-
Dirt separating method	Filtering
Working width (standard brush)	310 mm

Weight and Dimensions

Weight	7400 g
