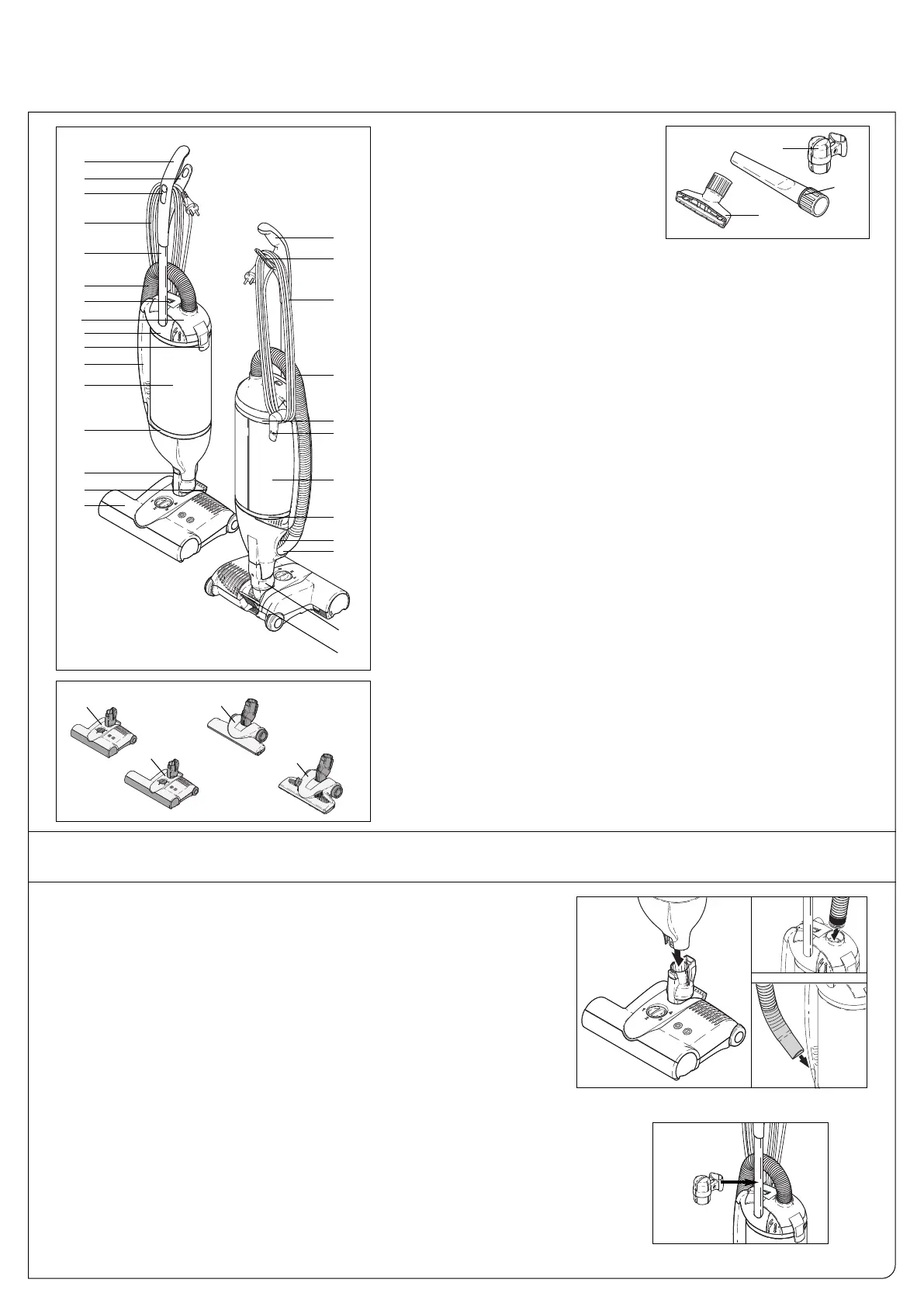

IDENTIFICATION OF PARTS
7
Place the power head (16, 28) or floor tool (29, 30) on the floor with the
swivel neck (20) upright. Hold the vacuum vertically and Insert the suction
opening of the vacuum into the swivel neck of the head or tool. Push firm-
ly and evenly downward until the tool release button (14) snaps into the
locked position - see figure 1.
Insert the black end of the hose (6) into the connection on the filter cover
(8)- see figure 2a. Insert the hose handle (19) into the suction opening (18)
on the side of the vacuum - see figure 2b. Press the hose into place on the
side of the machine.
Install the attachment clip (21) to the handle assembly (5) using the includ-
ed screw. Insert the crevice nozzle and upholstery nozzle into the clip - see
figure 3.
Standard Attachments
21. Attachment clip
22. Crevice Nozzle
23. Upholstery Nozzle
NOTE: All illustrations shown in this manual represent the FELIX Premium model except
where part numbers and instructions are different for each model.
Power Heads
16. ET-1 Power head, Standard on
Premium, optional for Kombi.
White, orange or ivory
28. ET-2 Power head, Standard on ICE
Blue 2, optional for Ice Blue
Kombi. White
Floor Tools
29. Premium Parquet Brush, standard
on Premium, optional for Kombi.
Dark gray, orange or ivory
30. Kombi Nozzle, standard on Kombi,
optional for Premium. Dark gray,
orange or ivory
1. Handle grip
2. Upper cable hook
3. On/Off switch, suction control slider
4. Power cable
5. Handle Assembly
6. Hose
7. Bag full indicator
8. Filter bag cover
9. Filter bag housing
10. Filter bag housing release latch
11. Carrying handle
12. Exhaust filter
13. Filter retaining rings
14. Tool release button
15. Foot pedal
16. Power head
17. Cable hook
18. Suction opening
19. Hose handle
20. Swivel neck
ASSEMBLY
16
28
21
22
23
