Seco SYS-C31-DMV - Maintenance Guidelines; Waste Disposal

SYS-C31-DMV
Information subject to change. Please visit www.seco.com to find the latest version of this manual.
Page.22 of 23
To proceed with the electrical installation of the antenna properly to the device, follow the
procedure below:
1
Make sure the electric connection on the destination machine is off and the electric
power supply is disconnected from the device;
2

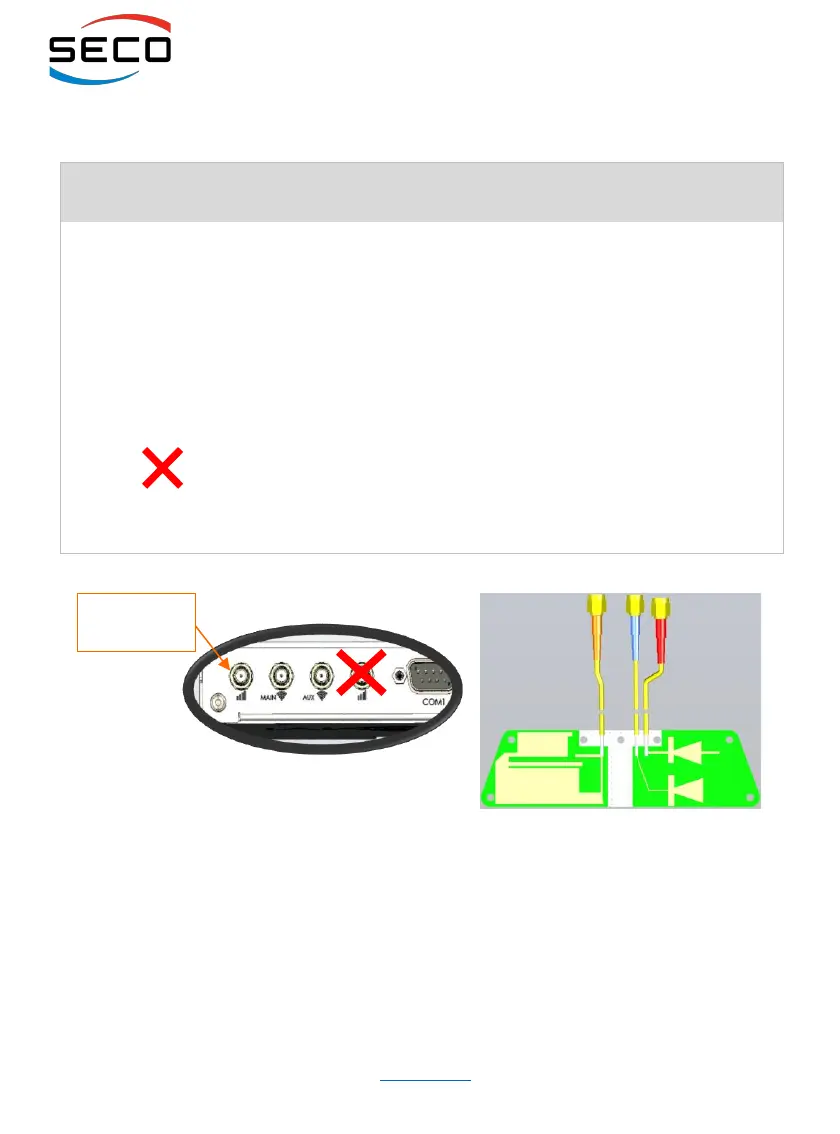

The correct connection of the antenna to the SYS-C31-DMV must comply with the
following scheme:
• ORANGE SMA MALE RP connector : connect to the LTE connector (the
most external of the 4 available).
• BLUE SMA MALE RP connector : connect to the second connector from
the left, renamed MAIN.
• RED SMA MALE RP connector : connect to the third connector from the
left, renamed AUX.
ATTENTION: DO NOT USE THIS CONNECTOR!
CONNECTING AN ANTENNA IN THIS CONNECTOR WOULD
INVALIDATE THE CERTIFICATION!
LEAVE THIS “SMA FEMALE RP CONNECTOR” ALWAYS FREE AND
COVERED BY THE CAP.
LTE
Connector
