7.2 Installing the antenna
The device is supplied with an antenna included in the package.
To proceed with the mechanical installation of the antenna properly to the device, follow the
procedure below:
Make sure the electric connection on the destination machine is off and the electric
power supply is disconnected from the device;
Attach the plastic box that encloses the antenna to the customer's target machine,
using the double-sided adhesive on the bottom of the cover from which the 3
cables come out.

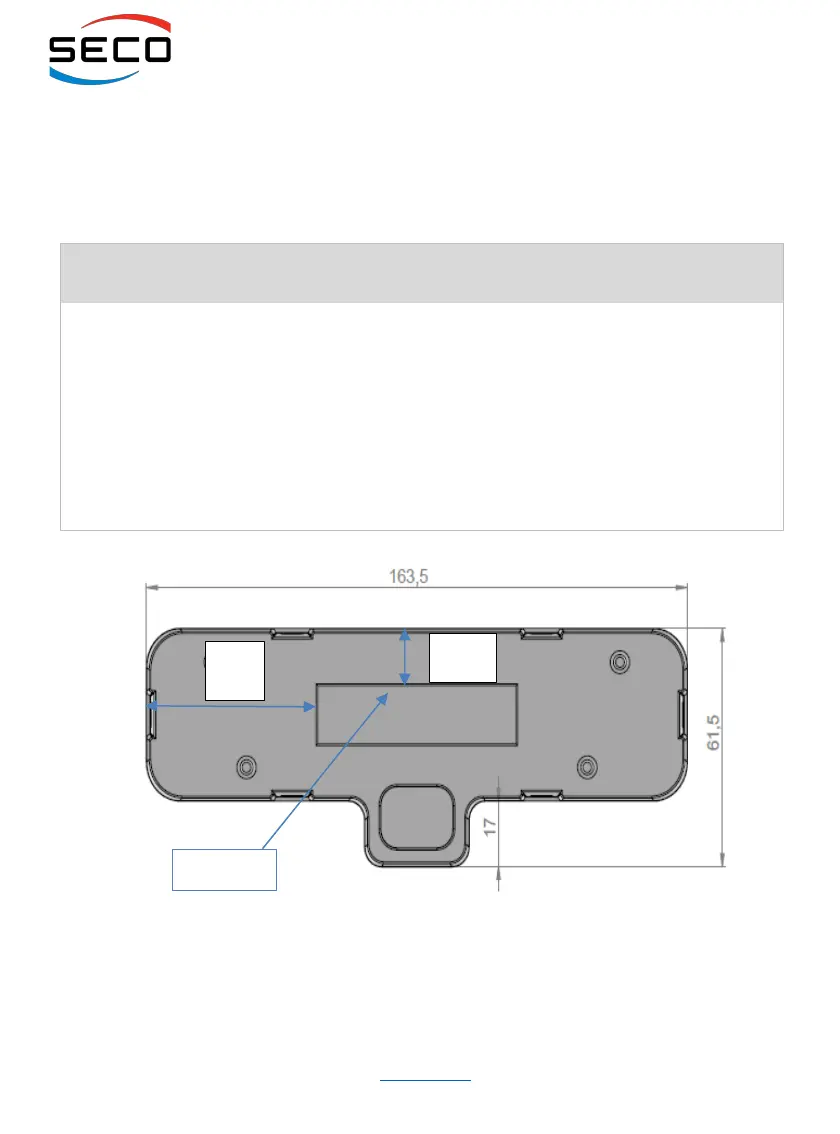

Position of the fixing double-sided adhesive:
• H = 14 mm
• L = 51 mm
• Depth of the slot for housing the double-sided adhesive = 0.4 mm (the
double-sided protrudes 0.2 mm from the top)
• Double-sided adhesive size = 12mm x 58mm x 0.6mm
