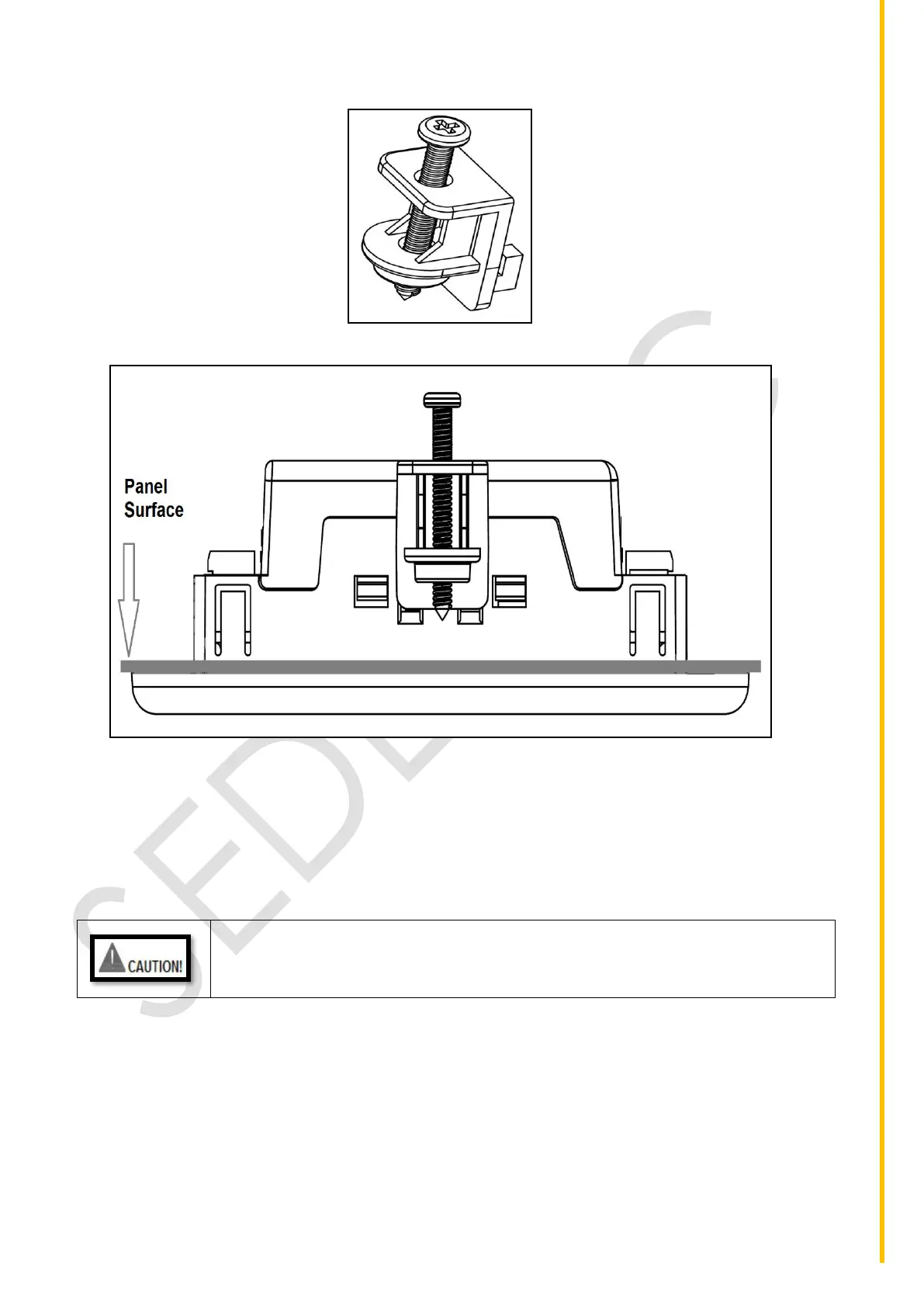

Figure 7: Fixing clip and screw supplied along with controller
Figure 8: Controller mounting on the panel using the fixing clips
• Insert the fixing clip into the slot provided on the side of the controller.
• Pull the fixing clips backwards (towards the back of the module). Ensure that the fixing clip is
properly fitted inside the slot provided on the controller.
• Fix the screws and tighten the screw (turn clockwise) to mount the controller properly into the
panel. Ensure that the screw will be always perpendicular to the panel surface. The maximum
tightening torque is 0.19 N-m.
Over tightening of the screws may damage the controller casing.
