SEDEMAC GC1200 User Manual

GC1100 SEDEMAC
Page | 36
healthy and the warm up time is elapsed. After completion of the ON time, genset turns OFF taking
cooling down time. Then controller will start DG off time.
After completion of DG OFF time, DG ON time will start and this cycle will continue until mains is
detected healthy. During any of the times, if mains is detected healthy, both the timers are reset to
zero and load will shift to mains after taking return delay. This process continues in cyclic mode.

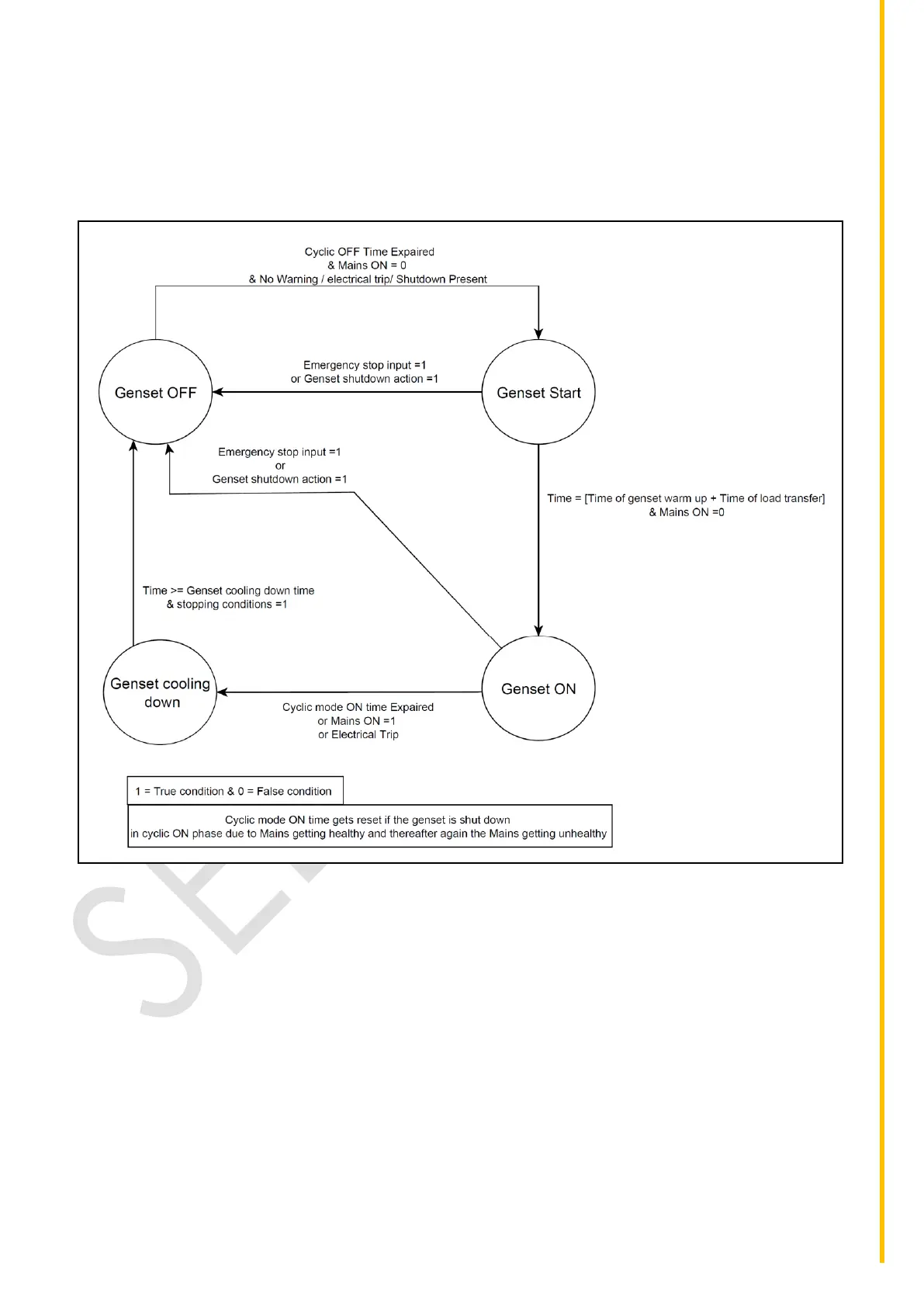

Figure 18: SMD for cyclic mode
