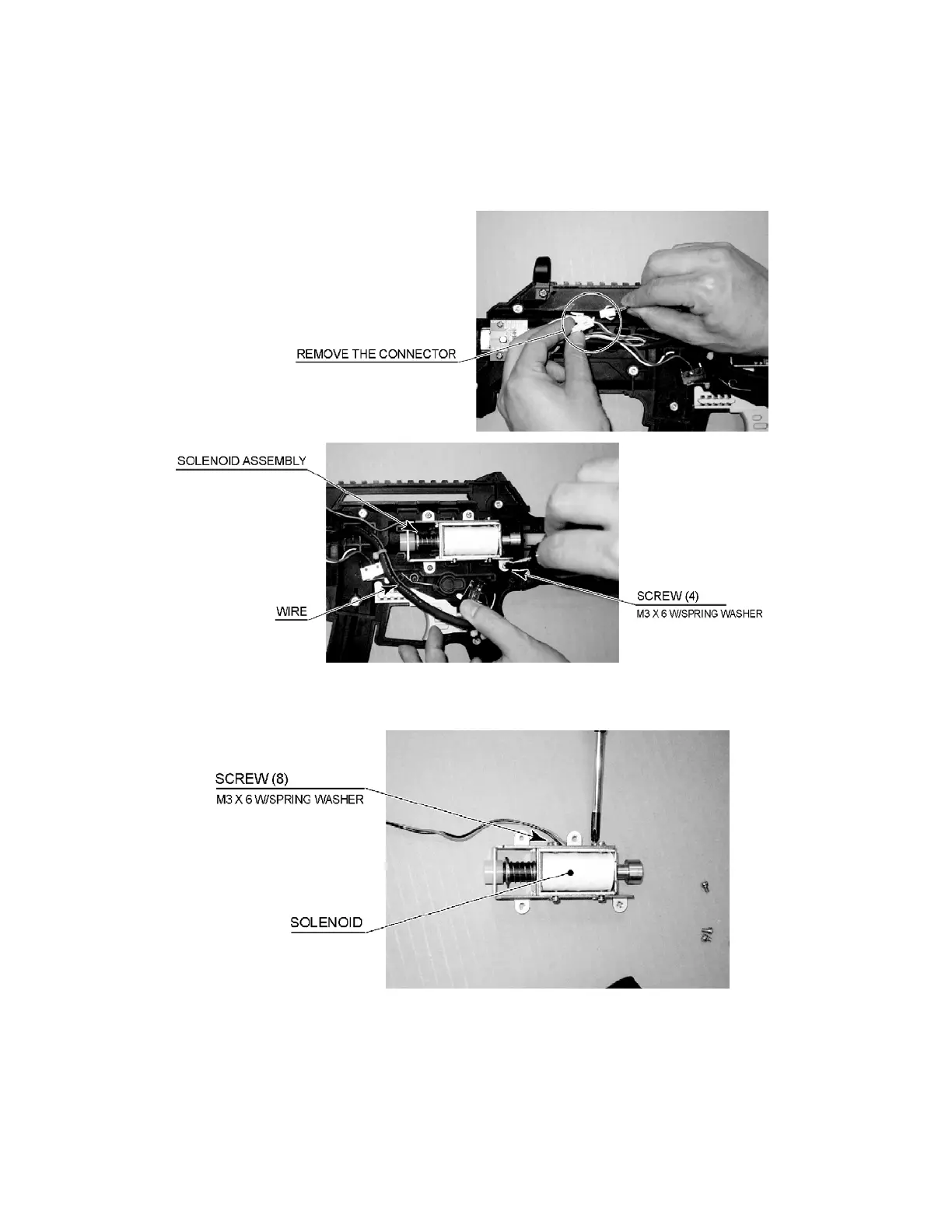

6.3. REPLACING THE SOLENOID
1. Follow instructions 1 - 3 of "Replacing the Microswitch" to remove the cover L.
2. Remove the 2P connector, wire and 4 screws to take off the solenoid assembly.
3. Remove the 8 screws and replace the solenoid.
4. Secure the solenoid assembly with 4 screws and replace the connector. When doing this,
make sure not to damage the wiring.
5. Refer to the previous item, then attach COVER R while being careful of each of the parts.
6. After replacement, perform an OUTPUT TEST, referring to the instructions in "Game Test
Mode".
