Sega Saturn User Manual

CONNECTING THE SEGA SATURN
Make sure that your Sega Saturn is turned off and unplugged from the electric socket before connecting any cables.
After marking all connections, remember to re-insert all plugs.
Plug your Sega Saturn Control Pad into Control Port 1 on the Sega Saturn console.

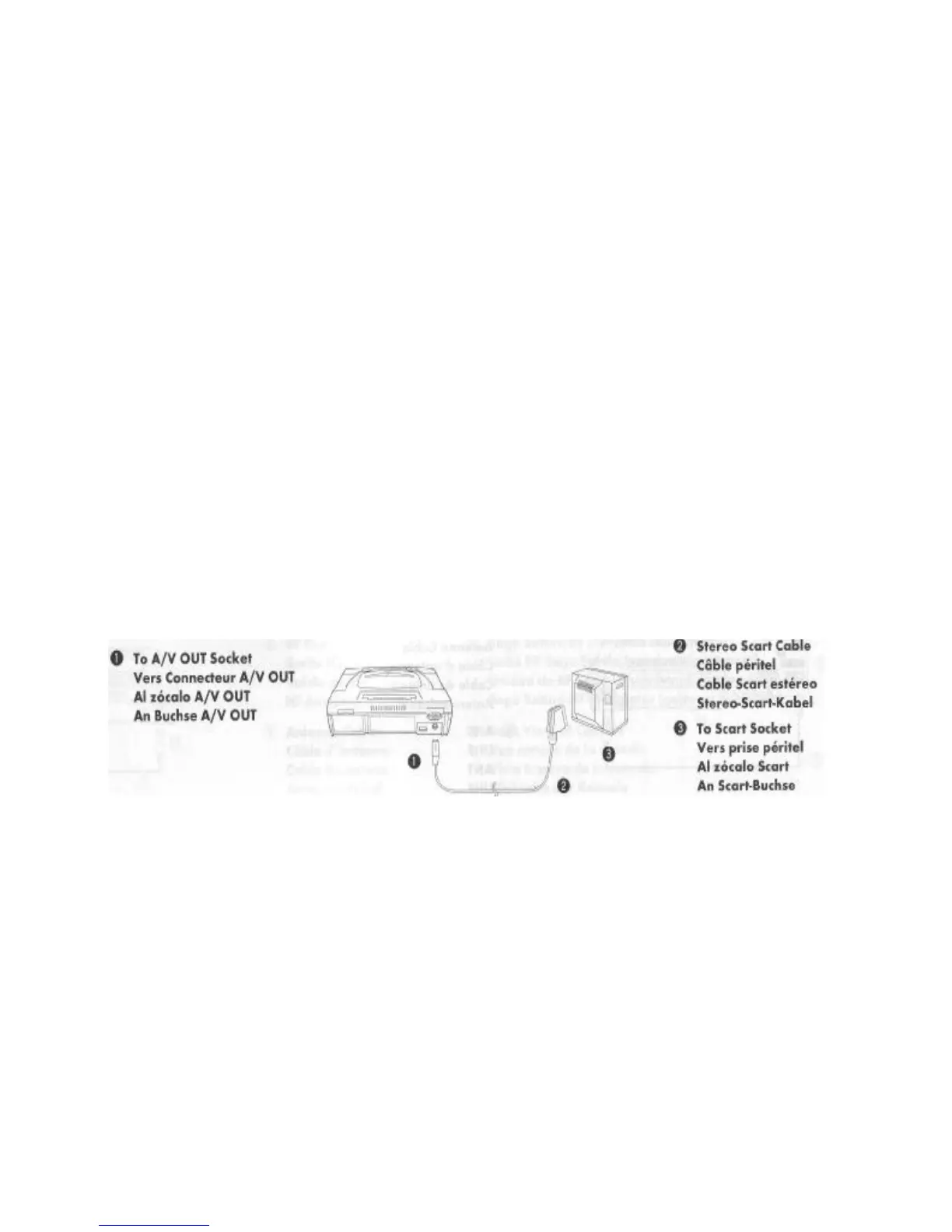

Connecting to a TV with Scart Input
1. Plug the Stereo Scart Cable into the A/V OUT socket on the right side of the console.
2. Connect the Stereo Scart Cable directly to your TV.
3. Select the audio/video input setting on your TV or monitor when playing Sega video games on the Sega
Saturn. Some TVs may automatically switch to this setting when the Sega Saturn is switched on.
Note:
1. To enjoy full stereo sound, connect your Sega Saturn to a stereo TV.
2. When using a Stereo Scart Cable, some TVs may display a "black border" on the left-hand side of the TV screen.

Sega Saturn Specifications

General

Manufacturer	Sega
Type	Home video game console
Generation	Fifth generation
Media	CD-ROM
Resolution	320×224 to 704×480
Controller Ports	2
Best-selling Game	Virtua Fighter 2
Units Sold	9.26 million
CPU	Two Hitachi SH-2 32-bit RISC @ 28.6 MHz
Graphics	VDP1 and VDP2 video display processors
Sound	Yamaha FH1 DSP
Memory	2 MB RAM, 1.5 MB video RAM, 512 KB sound RAM
Dimensions	260 mm × 230 mm × 83 mm
