SEI MS070400TX - Assembly Steps; Frame Construction; Adding Shelves and Apron

Large TV/Media Stand
Assembly Instructions
Assembly Instructions:
Wood may scratch easily. Be careful
when assembling. Do not scratch.
Step 1. Unpack and lay parts on
clean, padded surface like
carpet or blanket. Check that
you have all parts indicated
on the front page.

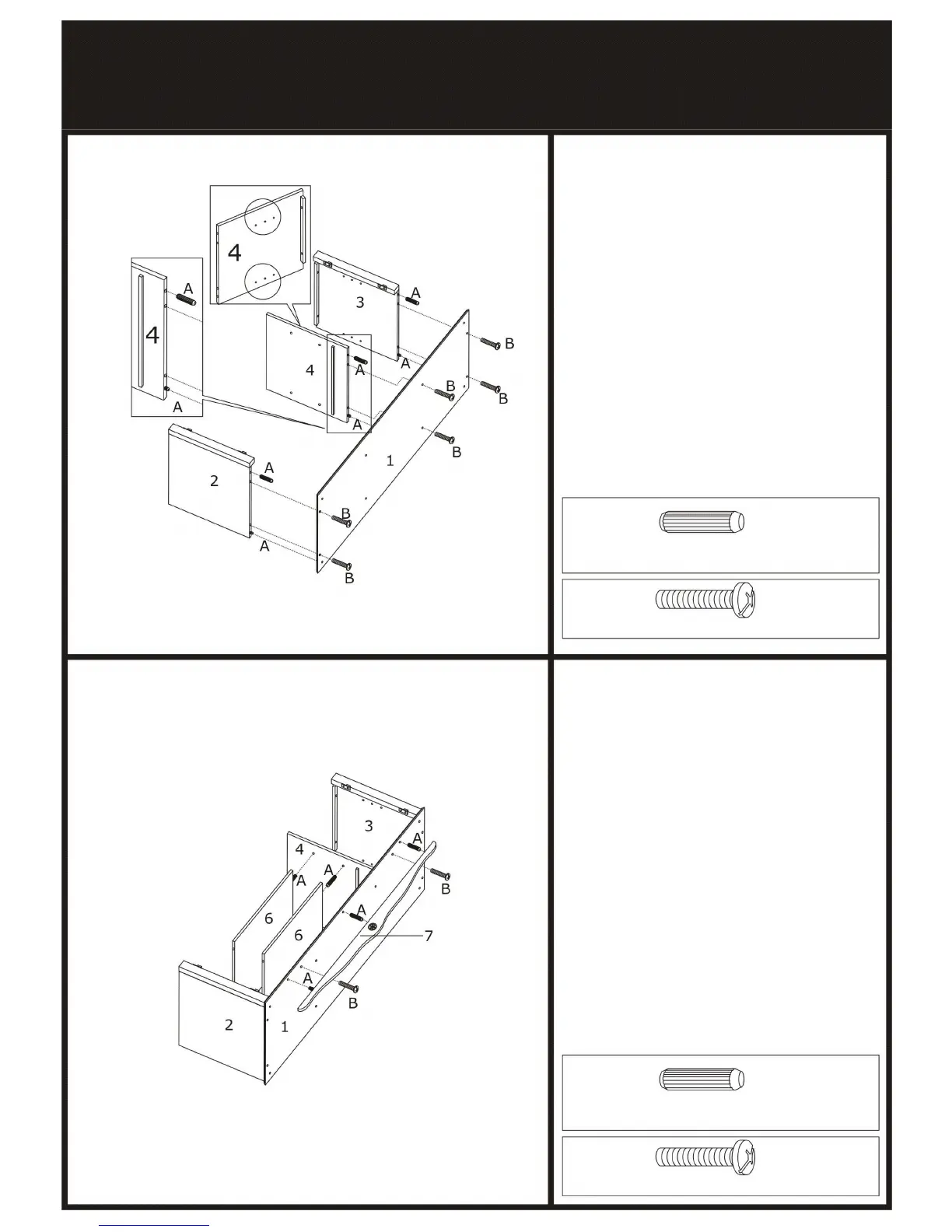

Step 2. Insert two Wood Dowels (A) into
predrilled holes in Side Panel(2,3)
each and two Wood Dowels(A) in
Right Middle Panel(4). Be sure
that the cross bar on the Right
Middle Panel(4) faces the Left
Side Panel(2).
Step 3. Attach Side Panels(2,3) and Right
Middle Panel(4) to Bottom Panel(1)
with Bolts(B) and tighten.
Step 1. Insert Wood Dowels(A) in Right
side of Fixed shelves(6) and
Wood Dowels(A) into decorative
Apron(7).
Step 2. Attach the decorative Apron(7) to
Bottom Panel(1) by Bolts(B) and
tighten.
Step 3. Attach the Fixed shelves(6) to the
Right Middle Panel(4).
Figure 2
Figure 1
(A)
(B)
1/4” x 1” Bolt
8mm x 30 mm
Wood Dowel
Quantity
of 6
Quantity
of 6
(A)
(B)
1/4” x 1” Bolt
8mm x 30 mm
Wood Dowel
Quantity
of 7
Quantity
of 2
