SEI MS070400TX - Page 6

Large TV/Media Stand
Assembly Instructions

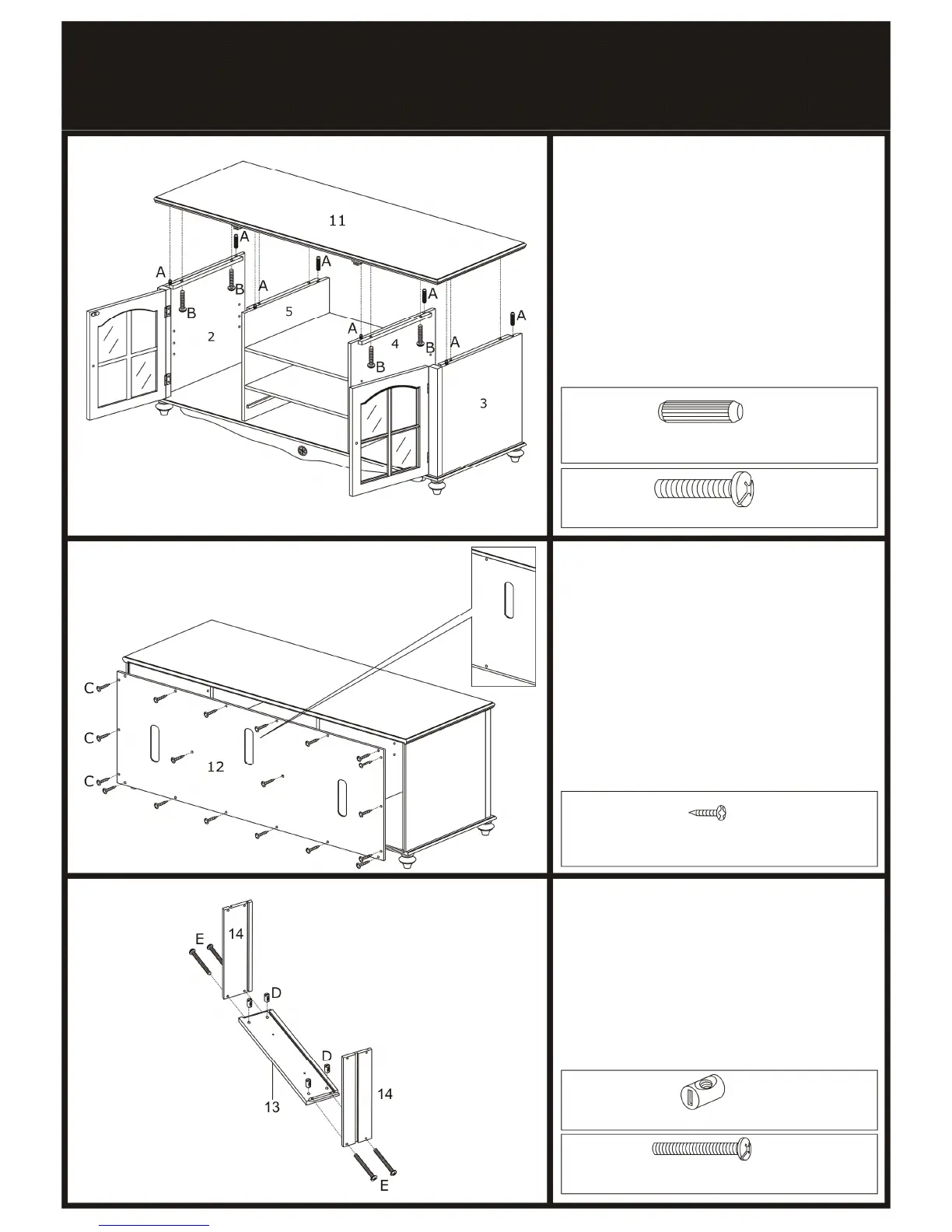

Step 1. Insert the Wood Dowels(A) into
Predrilled top holes in Side
Panels(2,3) and Middle Panel(4,5).
Step 2. Attach the Top Panel (11) into
the Panels(2,3,4,5) with Bolts(B)
and tighten.
Figure 6
Figure 8
Step 1. Insert Back Panel(12) into
grooves of side panels with
Screw For Back(C) and tighten.
(C)
3.5mm x 12 mm
Screw For Back
Quantity
of 20
3/16” x 38 mm
Bolt For Drawer
(
E
)
Quantity
of 4
Step 1. Insert Nut(D) into predrilled
holes on Drawer Face Panel(13).
Step 2. Attach Drawer Side Panels(14)
to Drawer Face Panel(13) with
Bolt for Drawer(E) through outer
predrilled holes in Drawer Side
Panels(14).
Figure 7
(A)
(B)
1/4” x 1” Bolt
8mm x 30 mm
Wood Dowel
Quantity
of 8
Quantity
of 8
Metal Nut
(D)
Quantity
of 4
