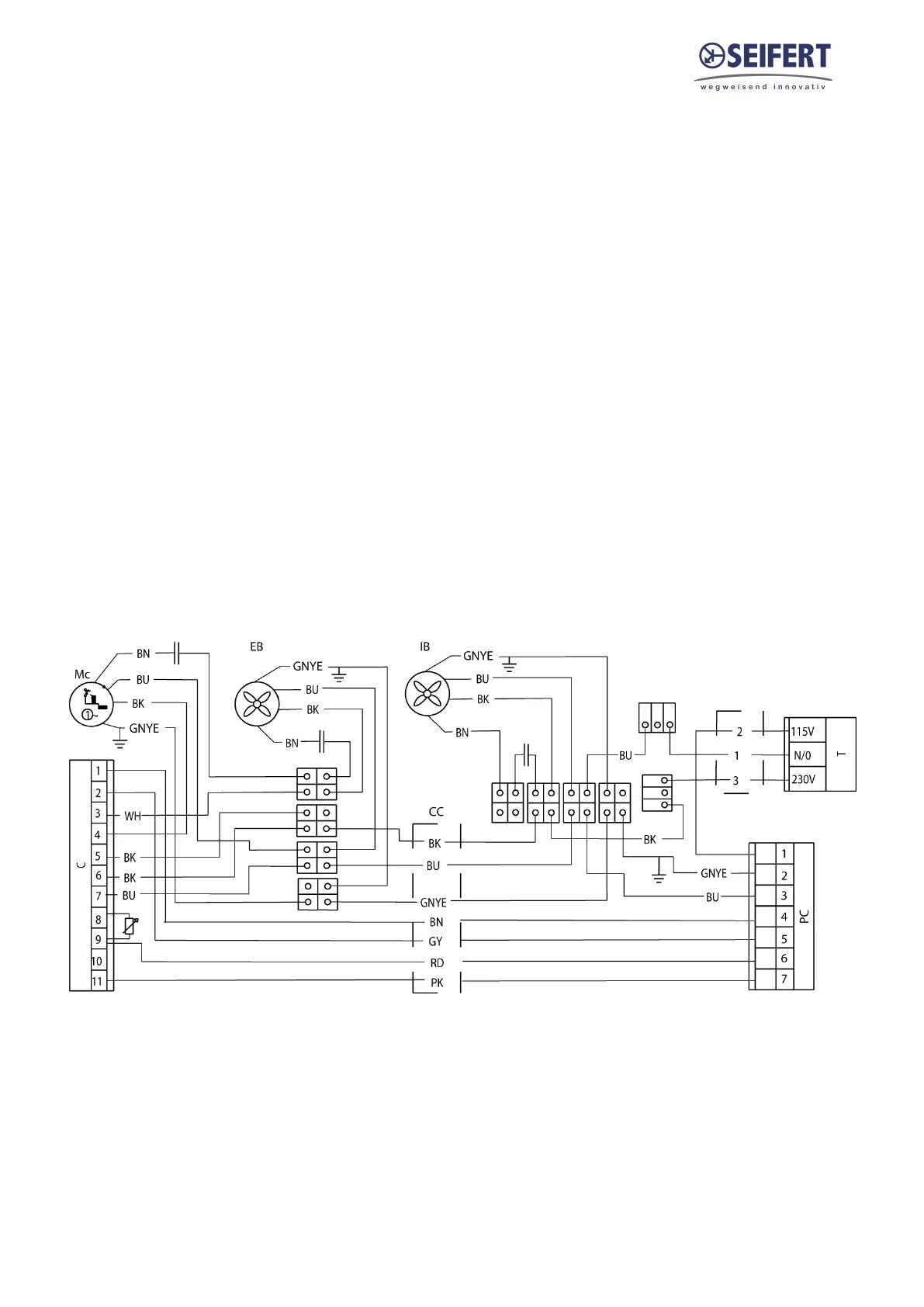

14. Wiring diagram
C Controller
EB External Blower
IB Internal Blowers
PC 7 pole connector
CC 7 core cable
Mc Motor compressor
T Transfomer
1 Live
2 Earth
3 Neutral
4 Alarm P1
5 Alarm P2
6 Door T1
7 Door T2
BU Blue
BN Brown
BK Black
GNYE Green / yellow
WH White
BK Black
RD Red
PK Pink
GY Grey
