Seiko 7d46A - Assembling the power section; 7 D48 Technical Instruction No.11

7D* * Technical Instruction
No.11
No. PROSESS ILLUSTRATIONS AND SPECIAL INSTRUCTIONS
Assembling the
power section
7
Set the
rechargeable
battery unit.
↓
6
Set the insulator for
rechargeable
battery.
↓
5
Set the
rechargeable
battery clamp.
↓
4
Tighten the
rechargeable
battery clamp
screws. (102#,
35#)

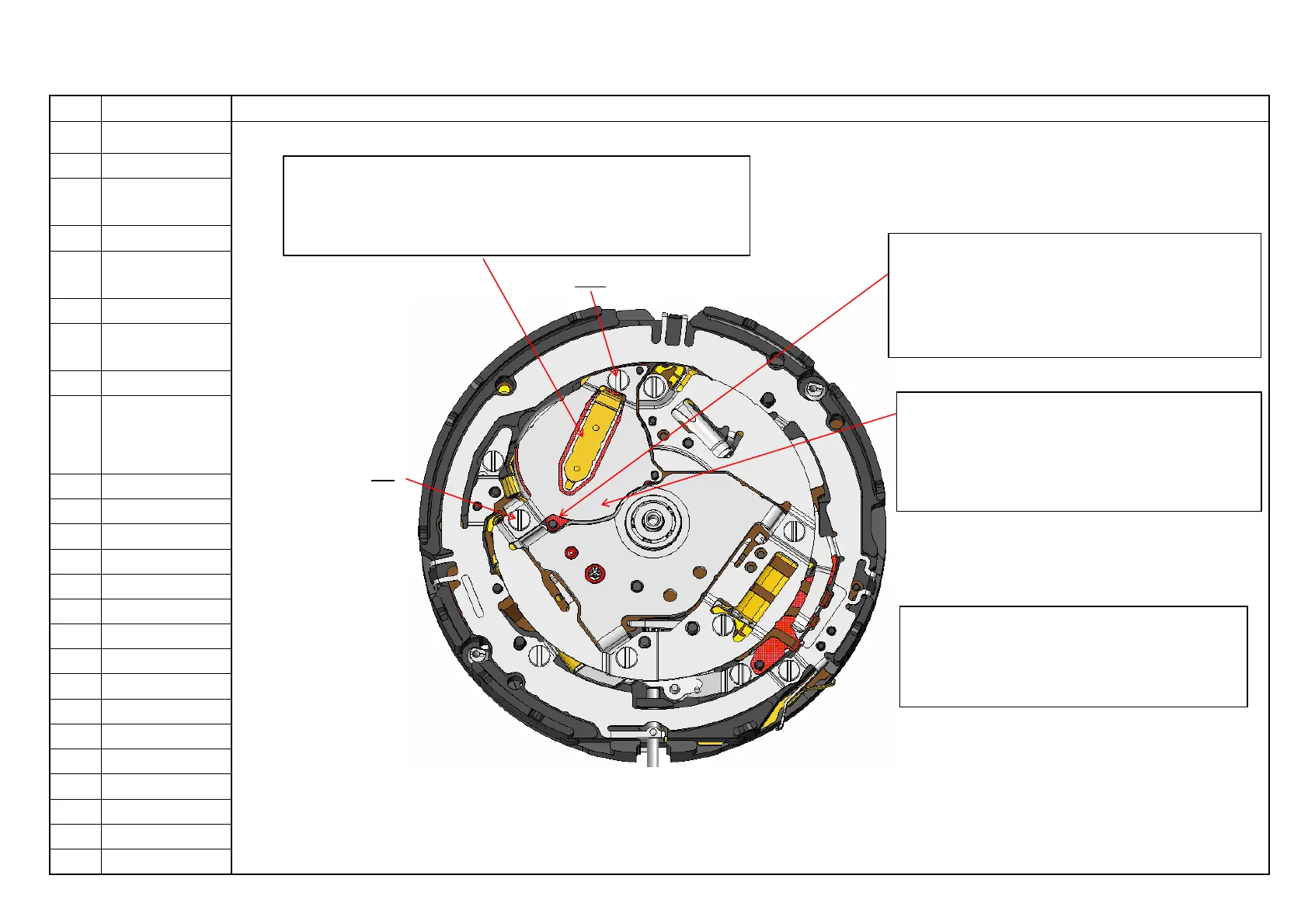

<7> Set the rechargeable battery unit.
*Stretching out the plus terminal to mount the rechargeable battery unit.
*Take care not to deform the minus terminal when removing the
rechargeable battery unit. (Remove the battery portion first.)
<6> Set the insulator for rechargeable battery.
*Firmly press down the points of engagement
(132#, 107#) to securely set it in position.
-Positioning guide tubes: 131#, 132#
-Points of engagement: 132#, 107#
<5> Set the rechargeable battery clamp.
*Firmly press down the point of engagement (132#) to
securely set it in position.
-Positioning guide tubes: 132#, 107#
-Point of engagement: 132#
35#
107#
131#
132#
102#
<4> Tighten the rechargeable battery clamp
screws. (102#, 35#)
