Seiko 7d46A - Assembling the circuit; 7 D48 Technical Instruction No.7

7D** Technical Instruction
No.7
No. PROSESS ILLUSTRATIONS AND SPECIAL INSTRUCTIONS
Assembling the
circuit
60
Set the insulator for
circuit block.
↓
Check the current
consumption for
the circuit block.
↓
59
Set the circuit
block.
↓
58
Set and lubricate
the intermediate
wheel for
generating rotor.
<58> Set and lubricate the intermediate
wheel for generating rotor.
Position (1) shown in the illustration below
*Type of oil, oil quantity: A0-3II-2 (To prevent
parts from wearing)
Position (2) shown in the illustration below
*Type of oil, oil quantity: A0-3II-1 (To prevent
parts from wearing)
*Distinction between the 7D-series
intermediate wheel for generating rotor and
the 5J-series counterpart
At the position shown by the red arrow, the
7D-series intermediate wheel for generating
rotor has a groove, while the 5J-series
counterpart does not.

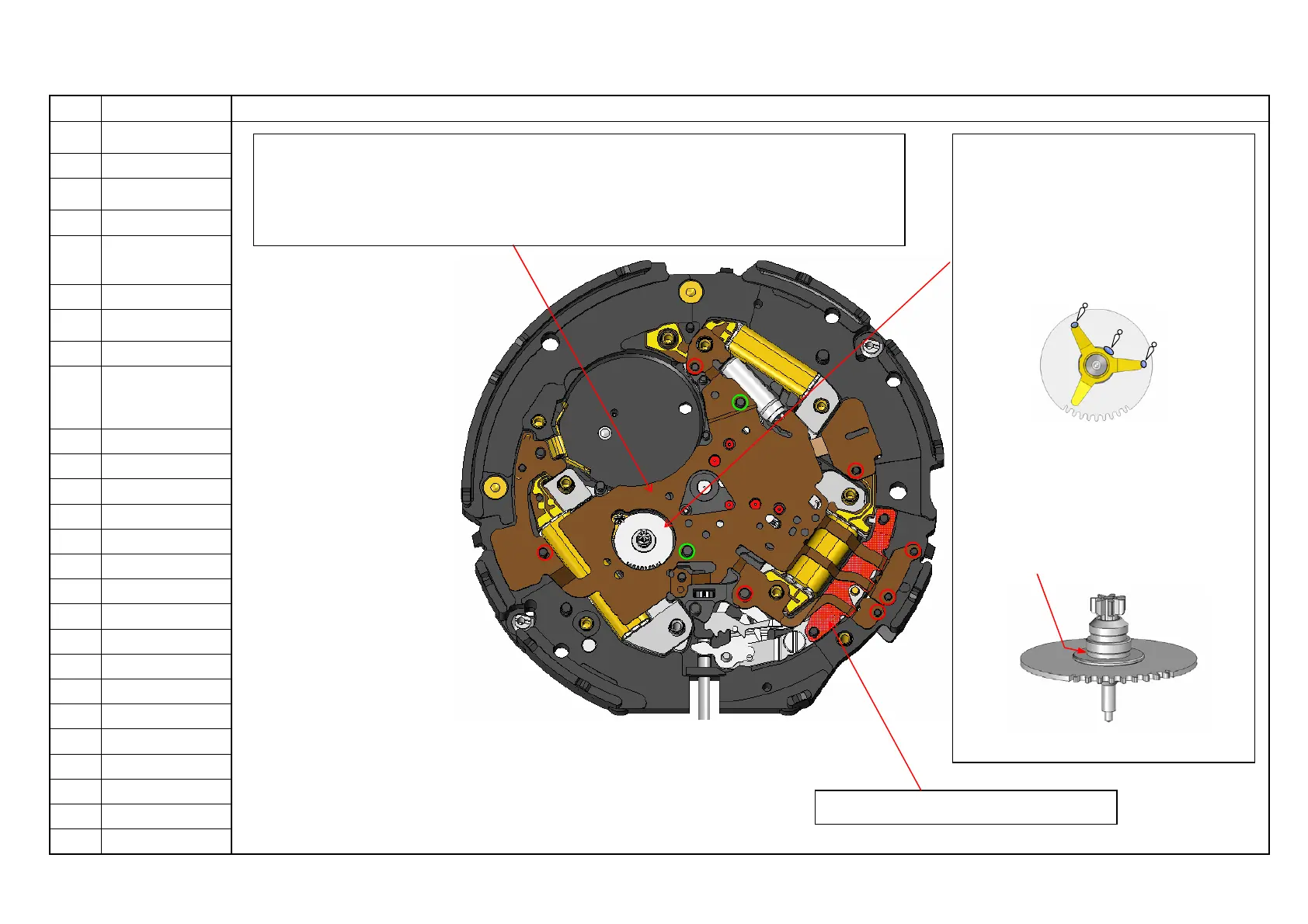

<60> Set the insulator for circuit block.
<59> Set the circuit block.
*Firmly press down the points of engagement to securely set it in position.
Positioning guide tubes : 121#, 124# (green-circled in the illustration.)
Points of engagement : 109#, 124#, 125#, 126#, 142#, 143#, 144# (red-circled in the illustration)
121#
124#
126#
142#
143#
144#
125#
122#
109#
