PROCESS ILLUSTRATION AND SPECIAL INSTRUCTIONS



37
Assemble the
CALENDAR PLATE



Lubricate the upper
pivot of the
CALENDAR
CORRECTOR 3
RD
INTERMEDIATE
WHEEL (see Fig.4-2)

Type of oil: AO-3













































Lubricate the upper pivot
of the CALENDAR
CORRECTOR 3
RD
INTERMEDIATE WHEEL
(see Fig.4-2)
Type of oil: AO-3

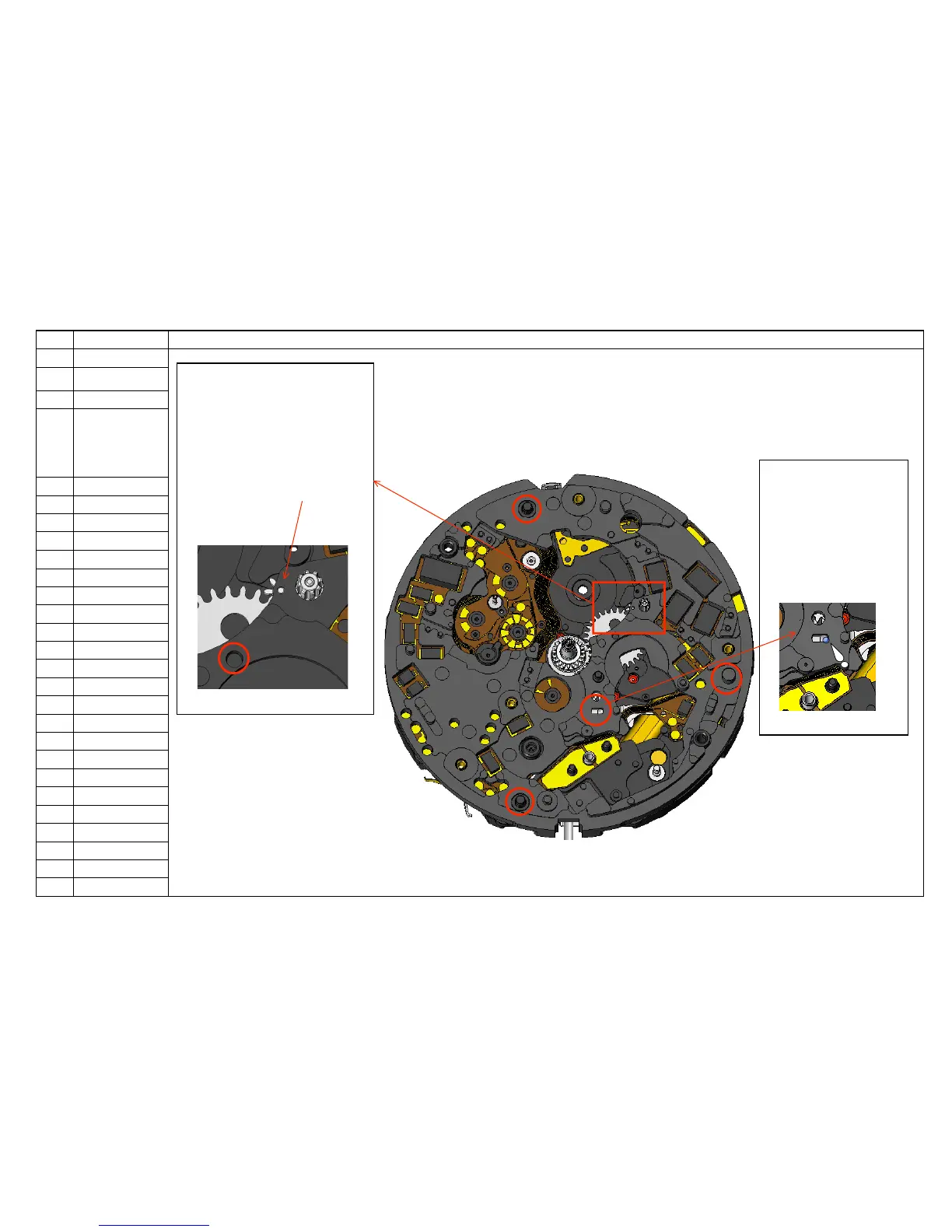

<37> Assemble the CALENDAR
PLATE
Make sure that the three posts are
securely engaged (see illustration).
In order to catch the upper pivot of the
DATE DRIVING WHEEL FOR TEN’S
DIGIT, check if the pivot of the 3
RD
INTERMEDIATE DATE WHEEL falls in
the relevant hole on the plate (see Fig.
4-1)



