1. You have unpacked your UK garage door
opener and have it in front of you.

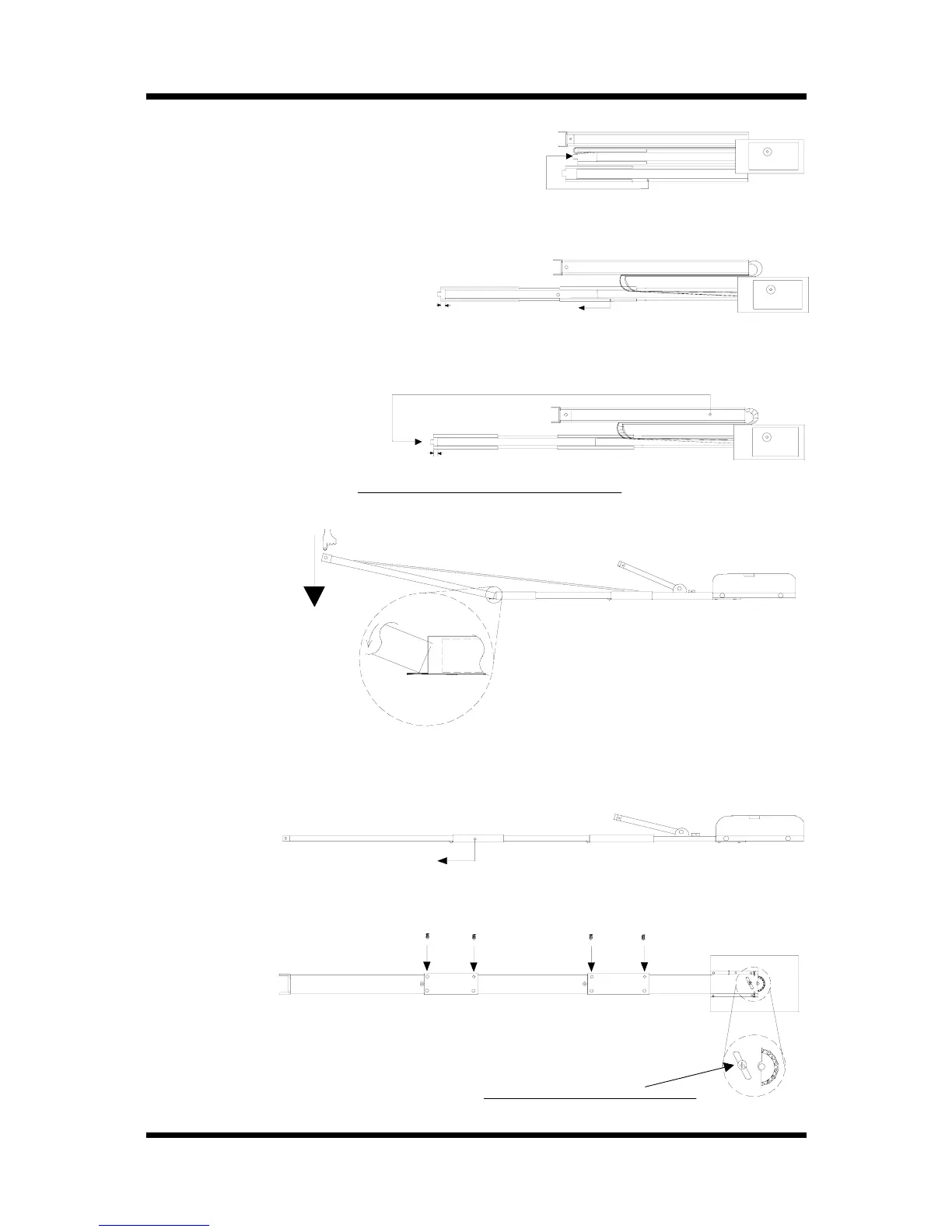

2. Take the part designated with a 2 in the drawing,
and place it in front. Slide the C-profile coupling
piece over part 2 all the way home.
Part 1 and part 2 are now connected
with one another.
3. When mounting part 3, make absolutely
sure not to twist the chain!
Chain
Leave the C-profile coupling piece so that
protrudes about 10mm (0,4 ") past part 2. Then
take part 3 and set it in the C-profile coupling
piece at an angle, inserting it from above as
shown. To tension the chain, press down on
part 3.
4. Push the C-profile coupling piece forward as far as it will go,
then screw in at least one fixing screw to secure it.
5. If you want to impart even greater stability to your C-profile rail, then
screw in all of the supplied fixing screws.
The chain has been pretensioned in the factory; do
not change the chain tension!
Preassembly
Installation Instruction UK - Page 2
