Fit the door again to close the power unit.
8
WARNING!
When closing the unit please ensure that the removable
wiring terminals have been inserted with the correct
orientation (the terminals screws must be facing
upward).

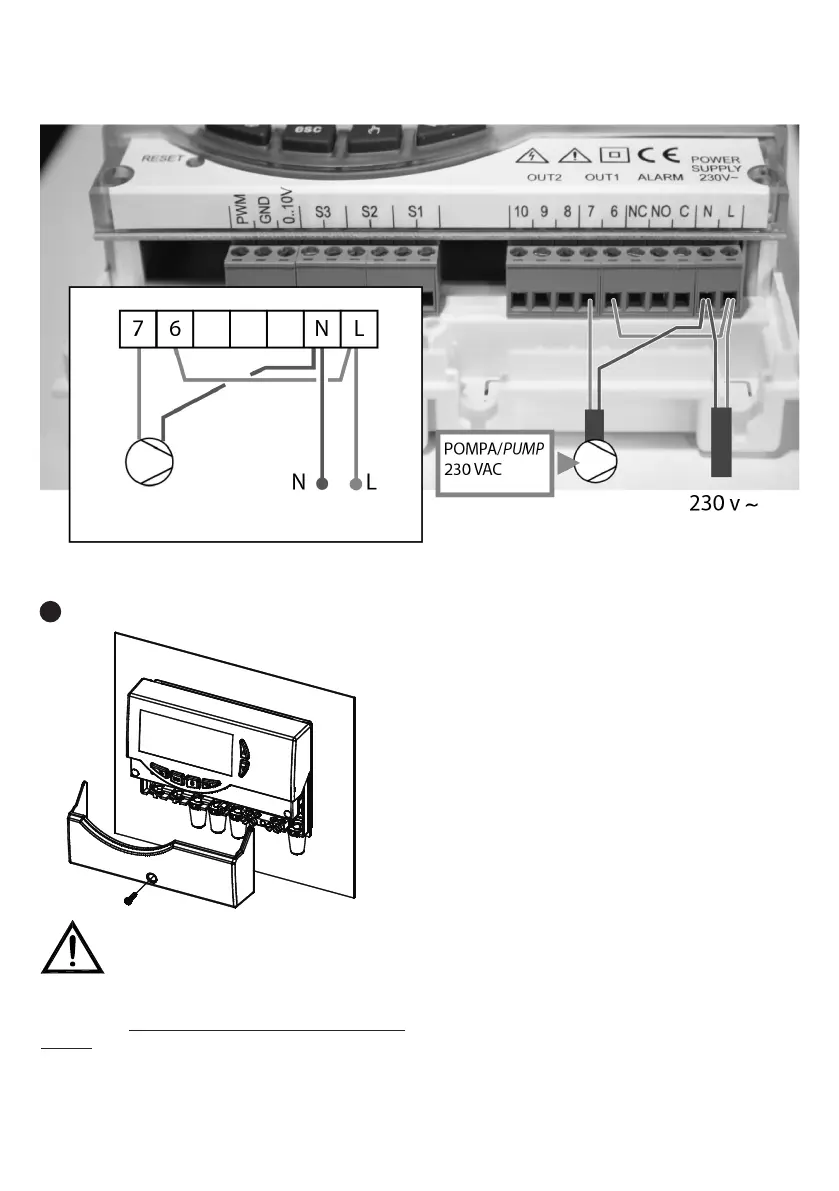

EXAMPLE OF CONNECTION FOR 3-SPEED SOLAR CIRCULATORS WITH WET or “HIGH EFFICIENCY”
ROTOR COMPLIANT WITH DIRECTIVE ErP 2015, WHICH DOES NOT REQUIRE AN EXTERNAL PWM
SIGNAL (WITHOUT A CONNECTOR FOR PWM).
