Instruction Manual Roundshot VR Drive - version 4.0 – January 2010 - © by Seitz Phototechnik AG / Switzerland www.roundshot.ch page 7
2.1 Setting up the VR Drive Panorama Set (continued)
Step 6: Set the nodal point by changing the position of the camera on the
adjustment bar (C).
The basic principle in panoramic photography is to take each shot from the same
turning point. This central axis is called nodal point.
If the nodal point is not accurately set, the perspectives of the images do not match.
This mean that points that lie behind each other do not align when viewed from two
different turning points:

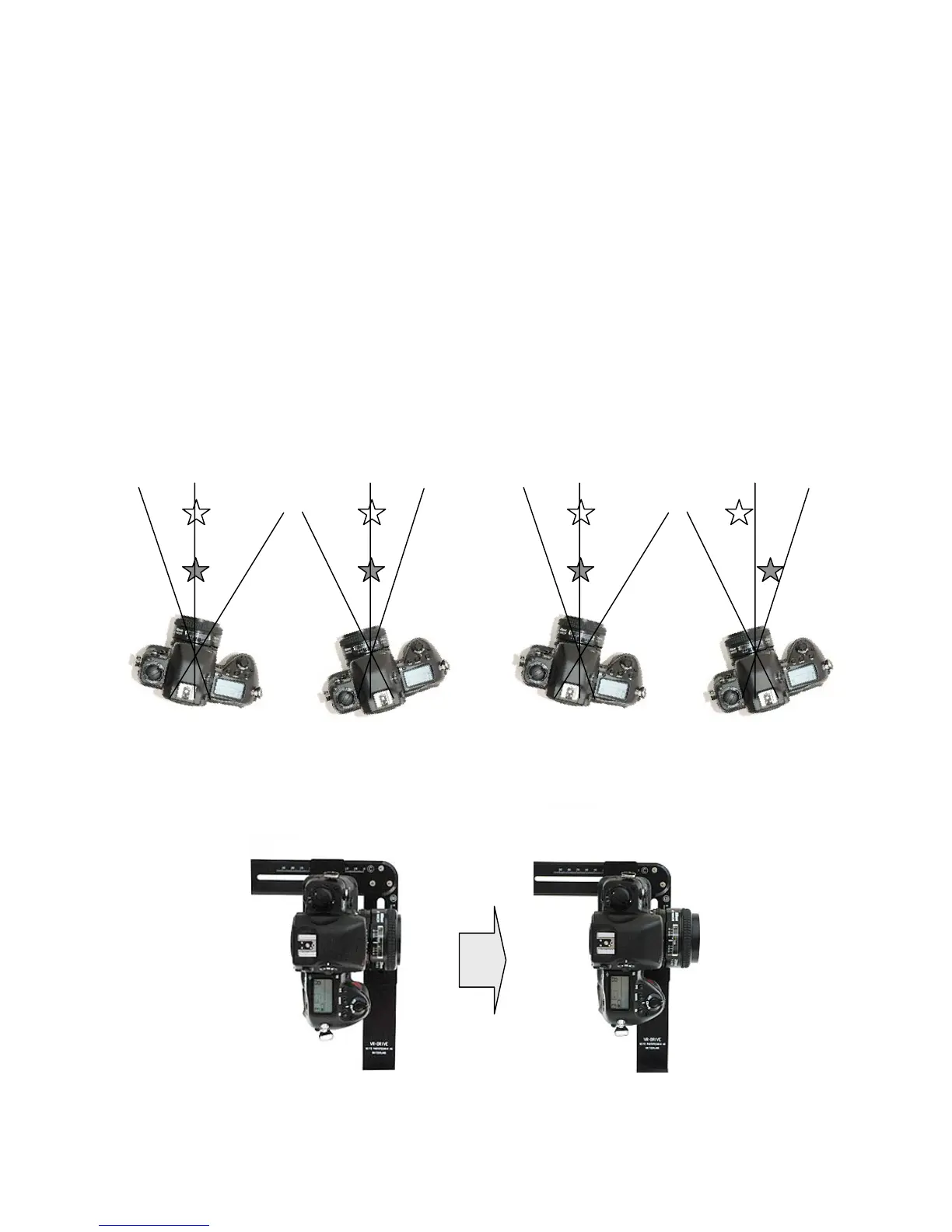

Good nodal point: Bad nodal point:
Shifting along the adjustment bar for nodal point (C):
