SEL-411L Data Sheet Schweitzer Engineering Laboratories, Inc.
32
Communication: 100BASE-FX, Ethernet
Communications Medium: fiber
Connector Type: LC
Bay Position: Bay 3
Model Option Table Digit: 7
Communication: 100BASE-FX/10/100BASE-T, Ethernet
Communications Medium: fiber/copper
Connector Type: LC/RJ45
Bay Position: Bay 3
Model Option Table Digit: 8
87L Communication: EIA-422, Serial
Communications Medium: copper
Connector Type: DB-25
Bay Position: Bay 1 or 2
Model Option Table Digit: A
87L Communication: G.703, Serial
Communications Medium: copper
Connector Type: DB-25
Bay Position: Bay 1 or 2
Model Option Table Digit: B
87L Communication: 850 nm IEEE C37.94, Serial
Communications Medium: fiber
Connector Type: ST
Bay Position: Bay 1 or 2
Model Option Table Digit: C
87L Communication: 1300 nm, Serial
Communications Medium: fiber
Connector Type: ST
Bay Position: Bay 1 or 2
Model Option Table Digit: D

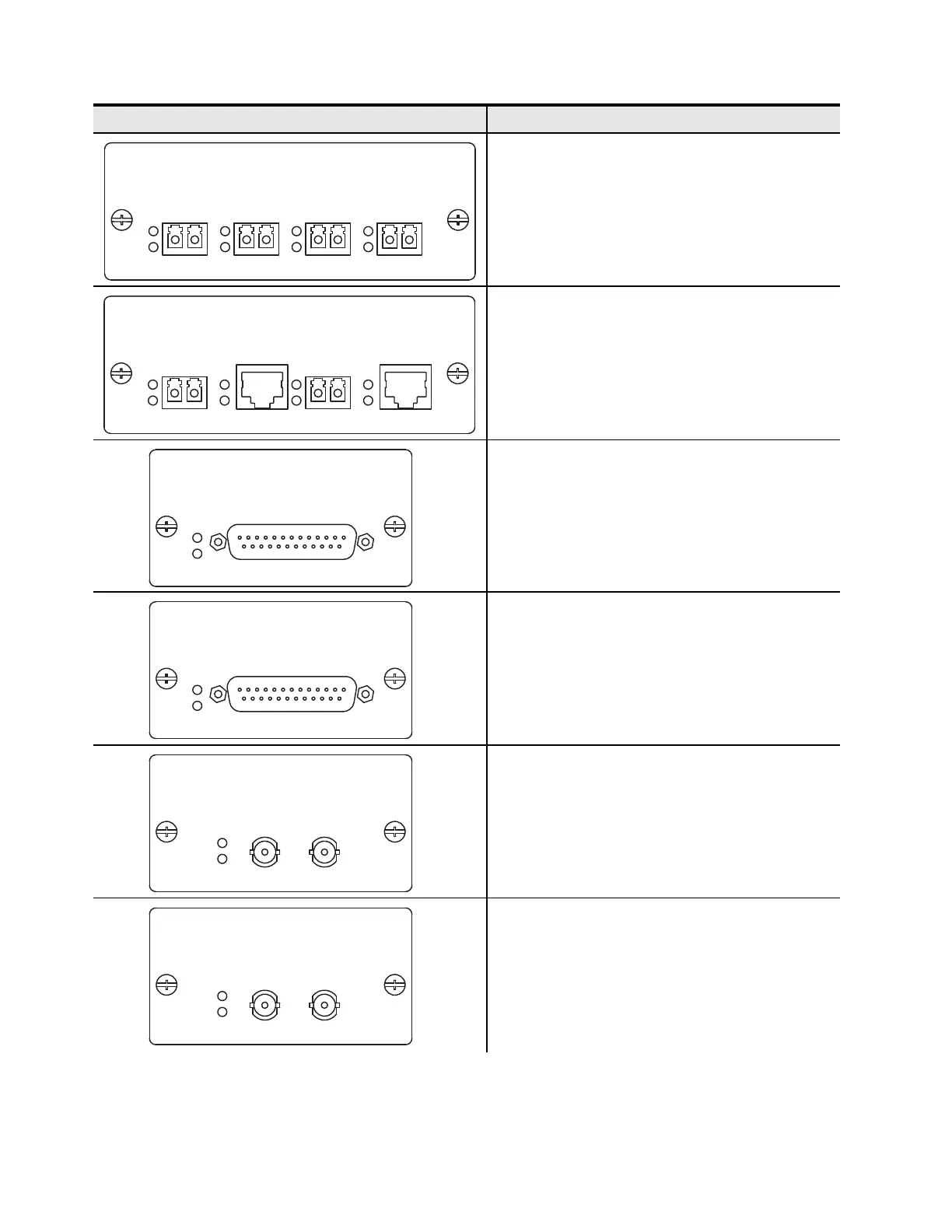

Table 6 Communications Cards Options (Excluding EIA-232 Card) (Sheet 2 of 3)
Card Description
ACT
PORT 5C PORT 5DPORT 5BPORT 5A
100BASE-FX
LNK
ACT
LNK
ACT
LNK
ACT
LNK
ACT
PORT 5DPORT 5CPORT 5A PORT 5B
10/100BASE-T / 100BASE-FX
LNK
ACT
LNK
ACT
LNK LNK
ACT
ACT
EIA-422
TX
RX
1
25
G.703
TX
RX
1
25
850nm IEEE C37.94 FIBER
TX
RX
TX RX
1300nm FIBER
TX
RX
TX RX
