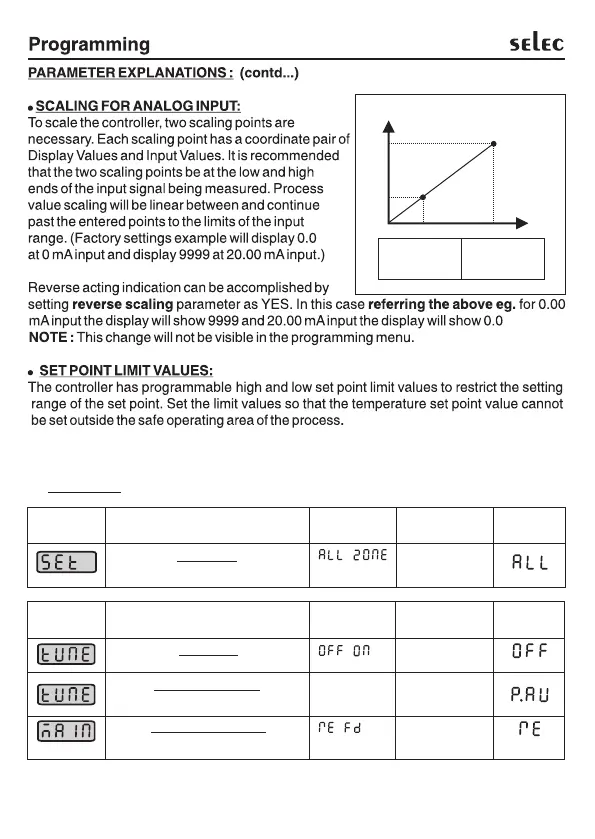

18
ISC.L = 0.00
DSC.L = 0.0
RSCL = no
ISC.H = 20.00
DSC.H = 9999
INPUT
9999
0.0
0.00mA
20.00mA
DISPLAY
Display
Name & Description
Range
Display
condition
Default
value
Auto tune
PID control
4. LEVEL 1 - OUTPUT PARAMETERS
Display
Name & Description
Range
Display
condition
Default
value
Set Mode
Tune percentage
Zone PID =
YES in level 4.
Tune = ON
P.AU , 75 to
100
Main Output Mode
Heat-cool =
NO.
/
/
/
