DC 4Q A Series
The adjustments are located inside the converter. All calibration pins are mount on headers
spaced. It ‘better to use a resistors with 1/4 watt (10,16mm) pitch and the capacitors (5.08mm)
pitch

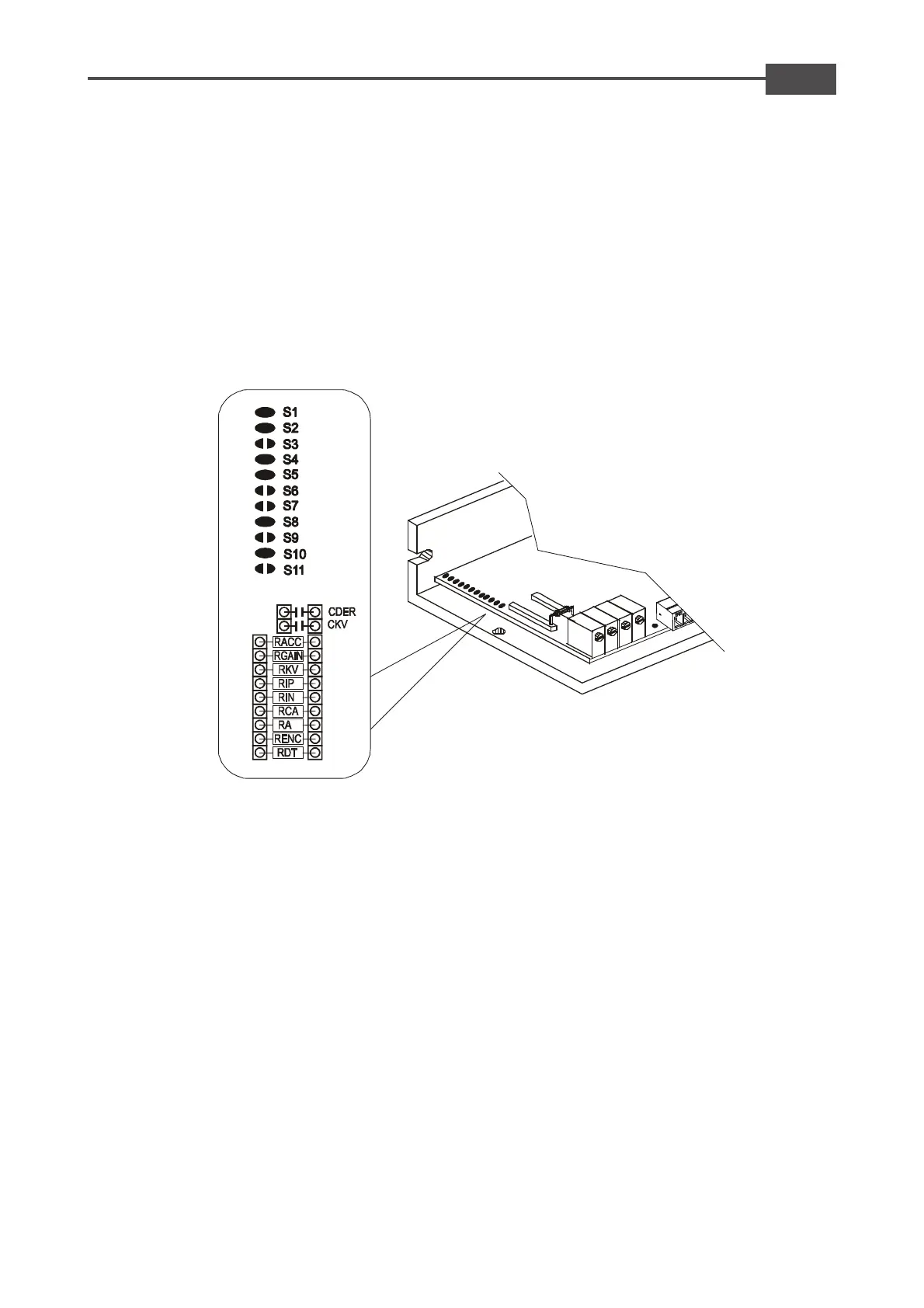

Are also present, 11 solder bridges, through which you can enable or disable features or parts of
the converter. The converter in standard configuration (encoder feedback) is provided with the
following point closed (ON).
4.0 Internal adjustements
The following pages highlight the various settings to be implemented over the area of adjustments
to set the converter depending on the desired velocity feedback.
In the left-hand page for each chosen velocity feedback, is shown a typical connection with the
notes of wiring of the converter.
