4.2 Brush motor with tachogenerator

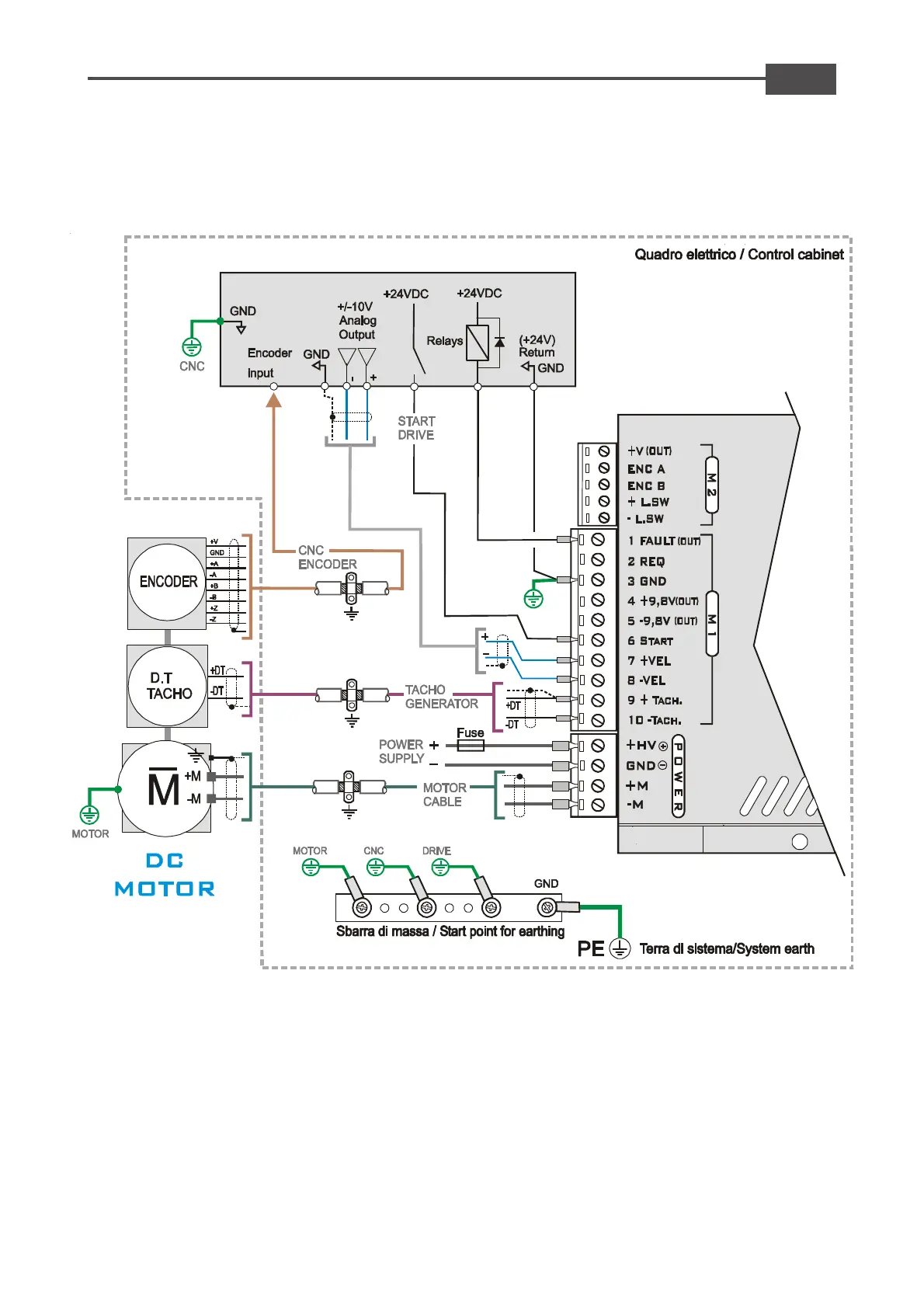

The following diagram shows an tipical application utilizing a Dc One with Brush motor. The
speed loop velocity is by tachogenerator feedback.
Signals from the encoder are connected only to the CNC for the control of space loop.
This function is enabled through the following settings on the solder point, and the insertion of RDT
resistance on the adjstustement zone.
CNC
