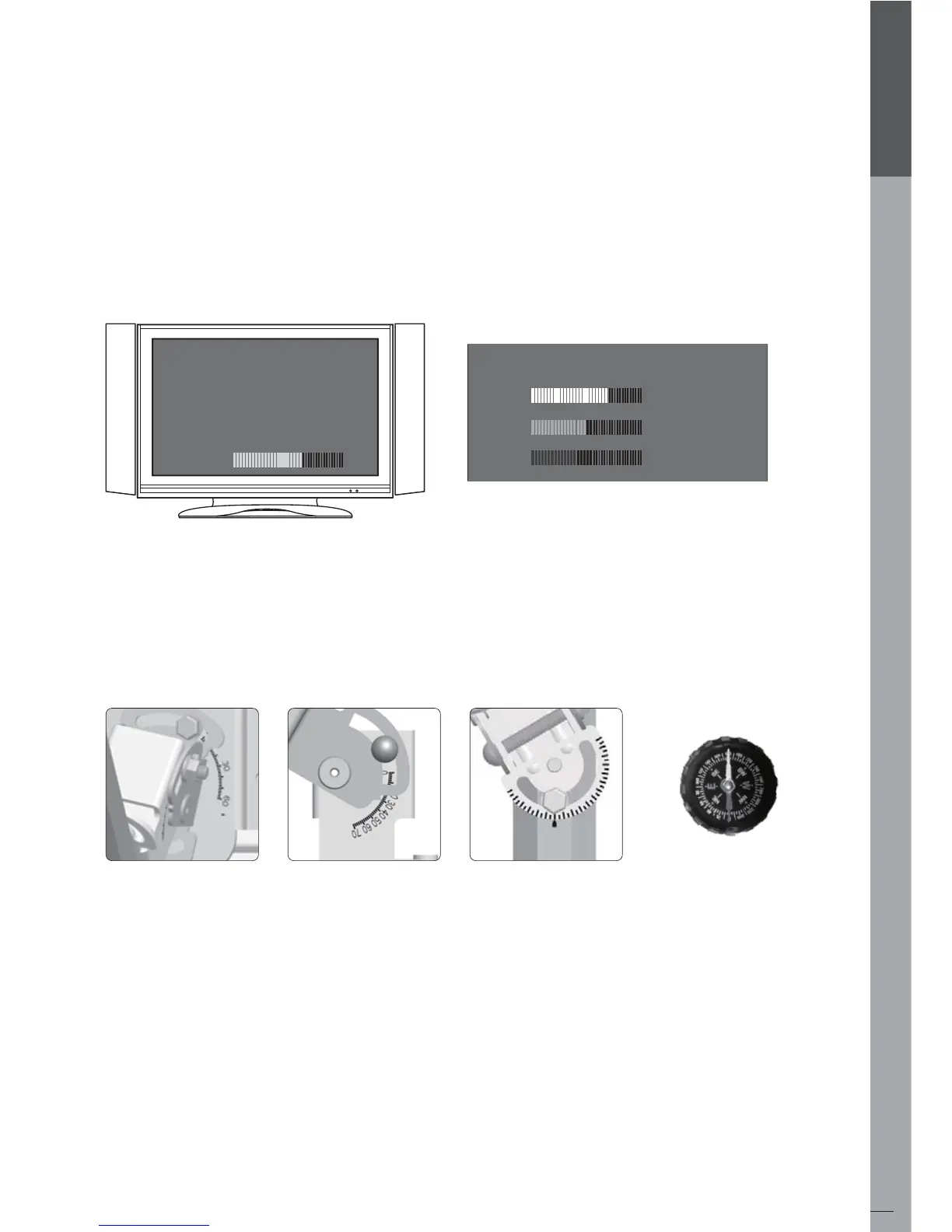

Step 5: Pointing and locating the Signal
< Skew > < Elevation > < Azimuth >
S
N
Antenna Pointing Menu
Signal: 0
Satelite : ASTRA 1
Transponder : 23
LNB : ON
Polarisation : Horizontal
Frequency : 12640
Antenna Pointing Menu
Signal:
Signal:
Signal:
90 Good
75 Not Sucient
55 Bad
The signal level and quality is indicated on the TV screen and will uctuate and change colour accord-
ing to the adjustment & movement of the antenna while you are pointing & nding (azimuth, elevation
and Skew angle).
The level indicates the power of the signal and the colour is the signal reception quality from the
chosen satellite.
Once ne tuning is complete, and the signal is at its peak level with a good quality, you can stop
adjusting the antenna.
(Example of pointing & nding the signal)
In order to watch Canal+ through ASTRA1(19.2 East) from the city ‘Brest’ of France, you will see Skew
angle at -12.7, Elevation angle at 30, and Azimuth angle at 149.6 (in reference to the angle table on the
back page of this manual)
