Hardware
8 x Wafer Lag
WL5
Back Wall
End Wall
Swing Wall
Front Wall

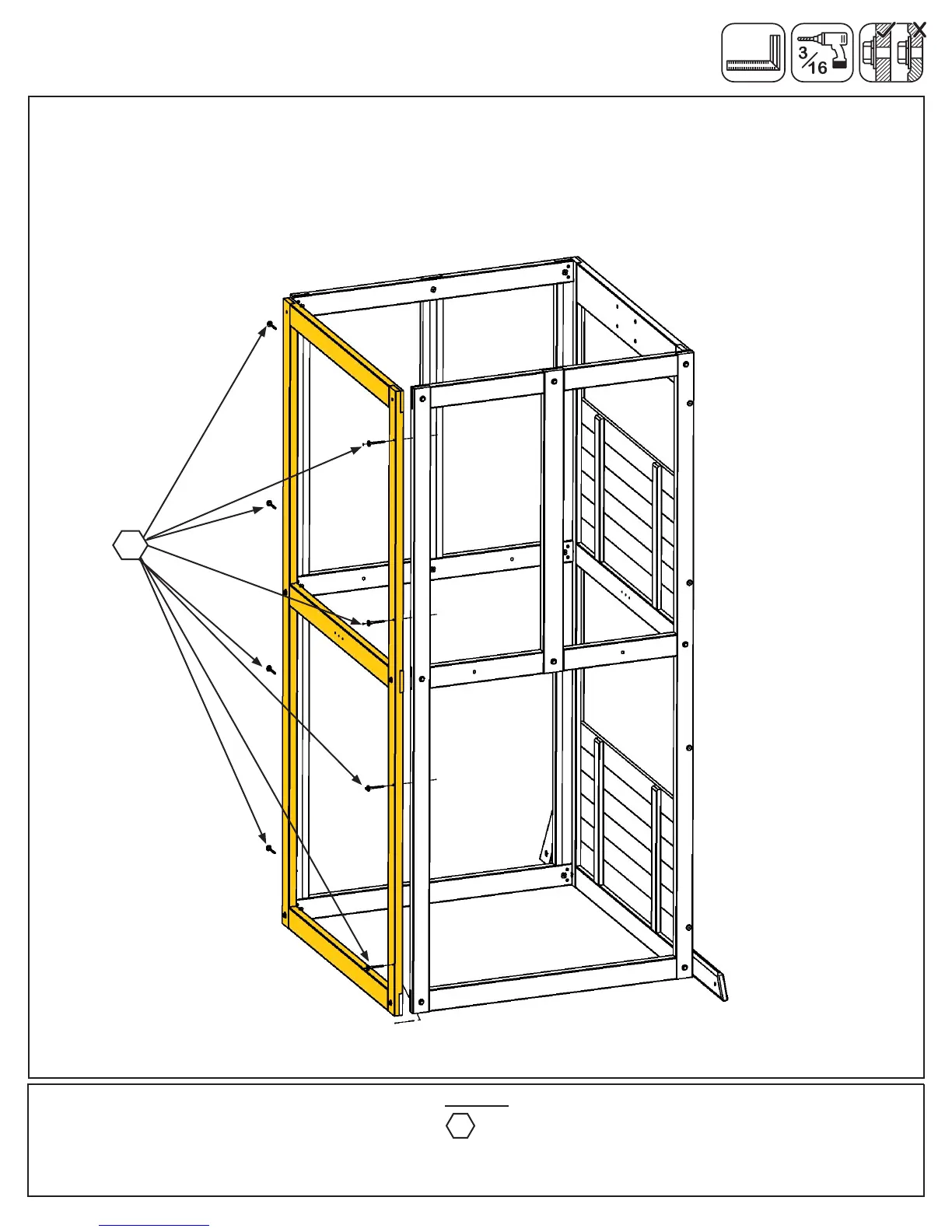

Step 4: Frame Assembly
Part 2
B:PlaceEndWallfromStep2betweentheFrontWallandBackWallnoticingthewallorientation.Thetopsand
bottomsofthewallsshouldbeush.Makesurethewallsaresquarethenusingthepilotholesasaguidepre-
drillwitha3/16”(4.8mm)drillbitandfastentheBackWalltotheEndWallandEndWalltotheFrontWallwith4
(WL5)WaferLagsperside.(g.4.4)
Fig. 4.4
Notice Back Wall
overlaps End Wall
Notice End Wall
overlaps Front Wall
WL5
