 18 www.selwood.com
1 x Hex Bolt (lock washer, at washer, t-nut)
2 x Lag Screw (at washer)
Hardware
Wood Parts
1 x Diagonal

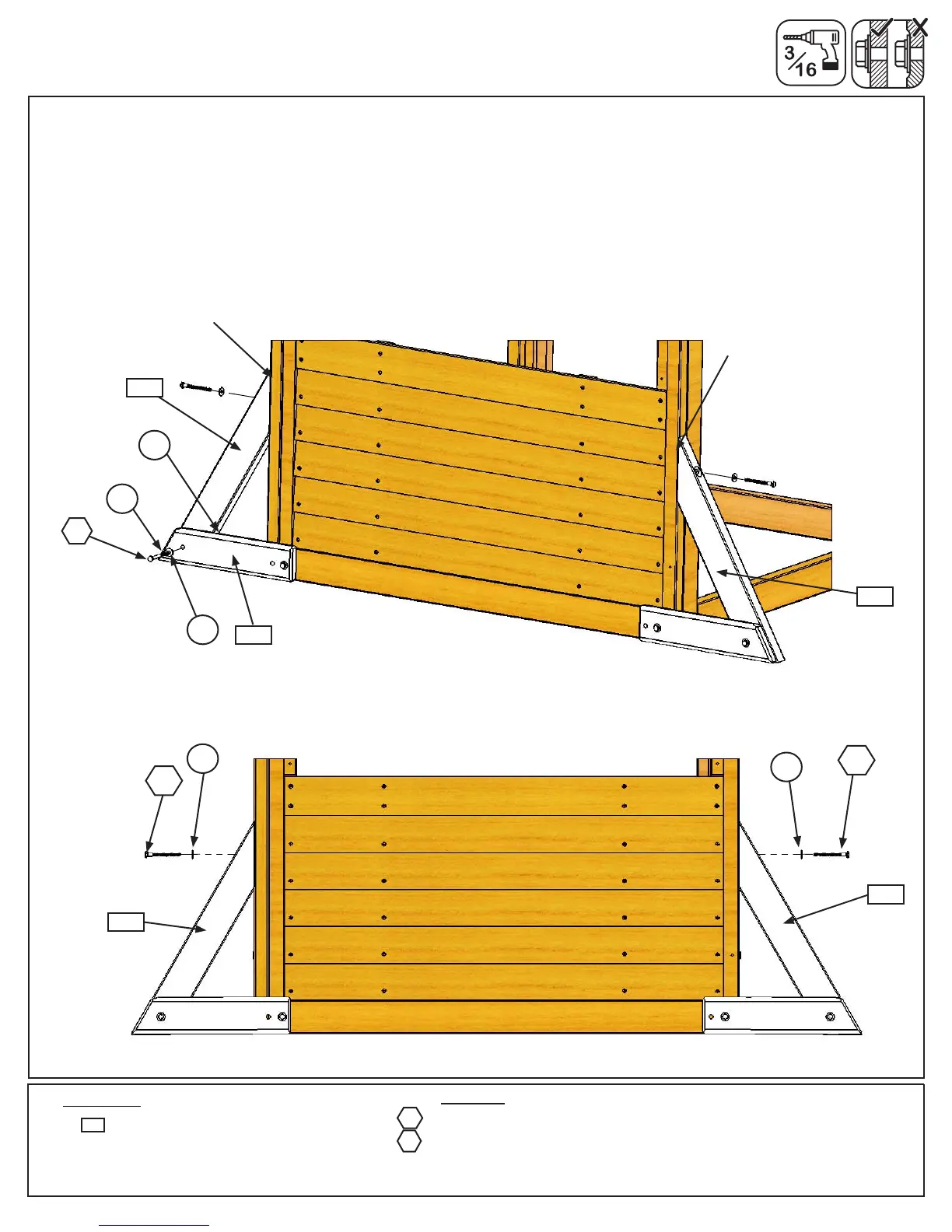

C:Looselyattach1(2607)Diagonaltoleft(2778)SWGroundMODwith1(H10)HexBolt(withlockwasher,at
washerandt-nut).(g.4.5)
D:Placeeach(2607)DiagonaltightandushtothefrontoftheSwingWallthenpre-drillpilotholeswitha3/16”
(4.8mm)drillbitandattacheach(2607)DiagonaltotheSwingWallwith1(LS3)LagScrew(withatwasher)per
board,checkingthattheyremainushtooutsideedge.(g.4.5and4.6)
(hidden)
Flush
LS3
2607
Fig. 4.5
Fig. 4.6
2778
H10
Step 4: Frame Assembly
Part 3
Swing Wall
Flush
LS3
LS3
2607
2607
H10
LW1
FW1
TN1
FW1
FW1
2607
Swing Wall
2607
