4 Transport/Initial Startup
4.1 Packing
The landscaping machine is braced to its transport pallet with tension straps and packed in sheathing
cardboard and strapping.
4.2 Scope of delivery
Check for completeness of all parts and accessories upon taking delivery of your landscaping
machine. All claims regarding parts which may have become damaged or lost during transport are to
be filed with the shipping firm.
4.3 Loading
Hoisting elements in the form of two closed suspension grommets are provided on the machine frame
for loading the landscaping machine.
! Keep off floating load!
When loading, only use hoisting equipment which corresponds to current safety standards.
When loading with planks, use only loading planks specifically suited thereto.
4.4 Measures prior to initial start-up
Instructions for assembling the control elements (removed for packing reasons):

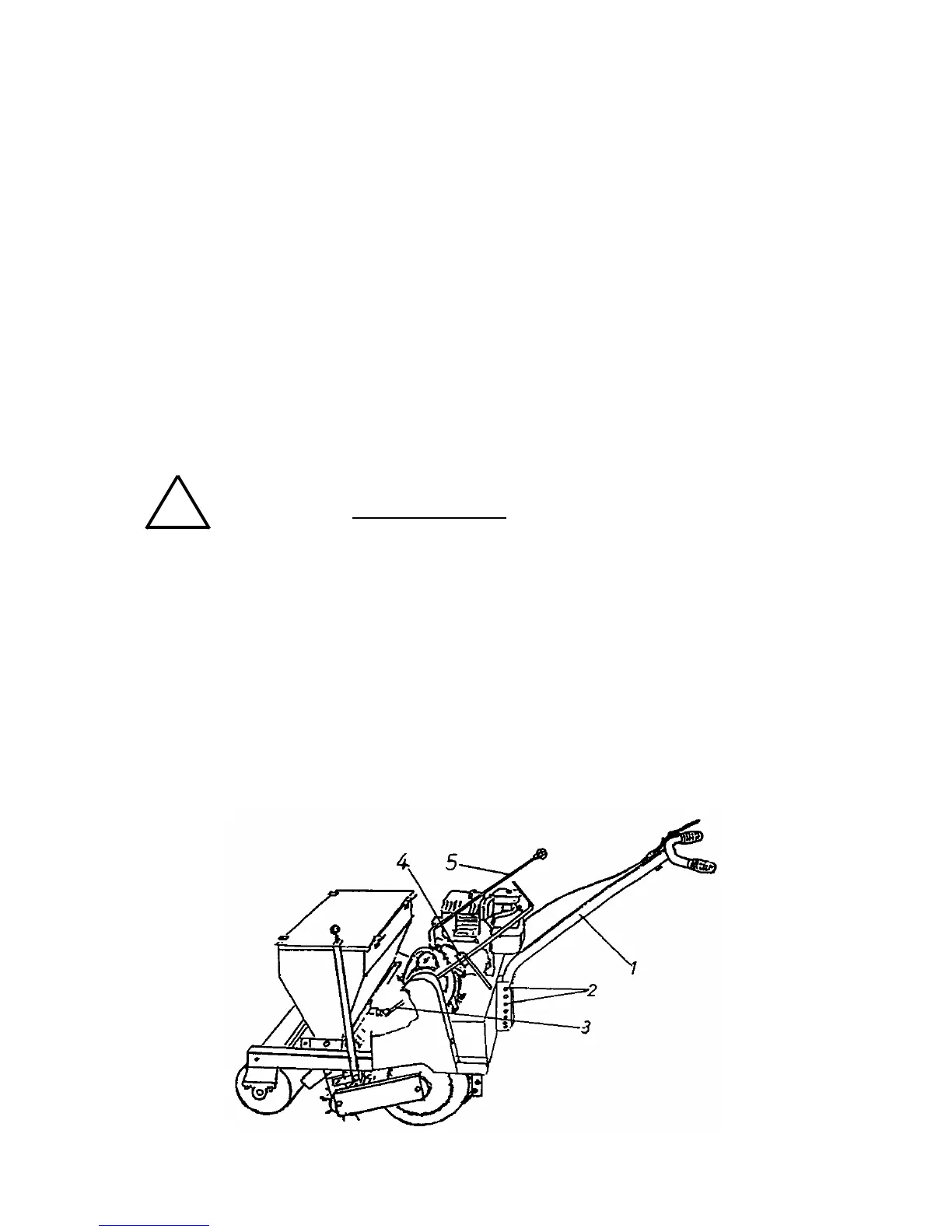

Turn handlebar 1 180° to the rear and adjust to desired height. Firmly tighten the 2 fixing screws 2.
Insert cut-off lever 3 for the seed discharge into the knuckle joint. Turn the fixing screw into the cut-off
lever bore and tighten.
Affix adjustment ring 4 behind the lever mounting and tighten. Position gearshift lever 5 so it points
rearward to the control shaft, ensuring when doing so that the fixing screw is seated in the bore, then
tighten.
Mount the tensioning spring for the control lever release on the lever.
