Semtech
Wireless & Sensing Products
User Guide for the SX1261 and SX1262 Development Kits Rev 1.1
UG.DEV.SX126x.W.APP March 2018
1. Contents of Delivery
The Development Kit for a SX1261 or SX1262 transceiver is delivered with the following contents:
- 2 SX126xMB1xAS RF modules including a microcontroller ST Nucleo MBED board and a touch screen
- 2 connection cables Mini-USB / USB
- 2 868/915 MHz antennas
- 2 Mini-USB cables
- 2 touch screen styluses
- 1 Read-Me Note
Before powering the kit, make sure to assemble the three parts shown in the image below:

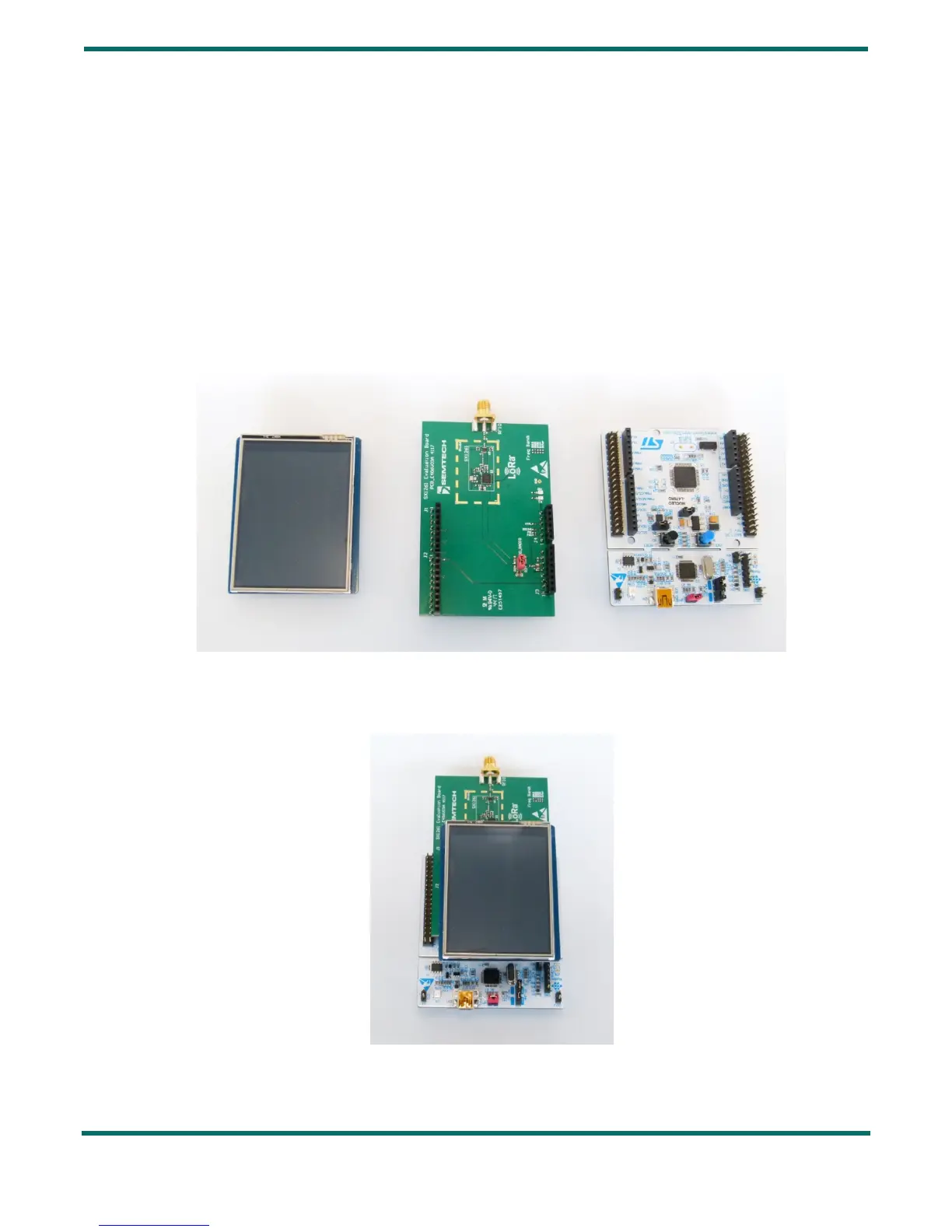

Figure 1: From left to right: touch screen, RF module and MBED board
When you assemble the parts, make sure that they are correctly oriented, as shown below:
Figure 2: Touch screen, RF module and MBED board correctly assembled
