ABOUT THE OUTSTAR BLUETOOTH HELMET
1.4.4 Installing the Shield Visor
1
2
Hook C
Hook B
Hook D
Hook E

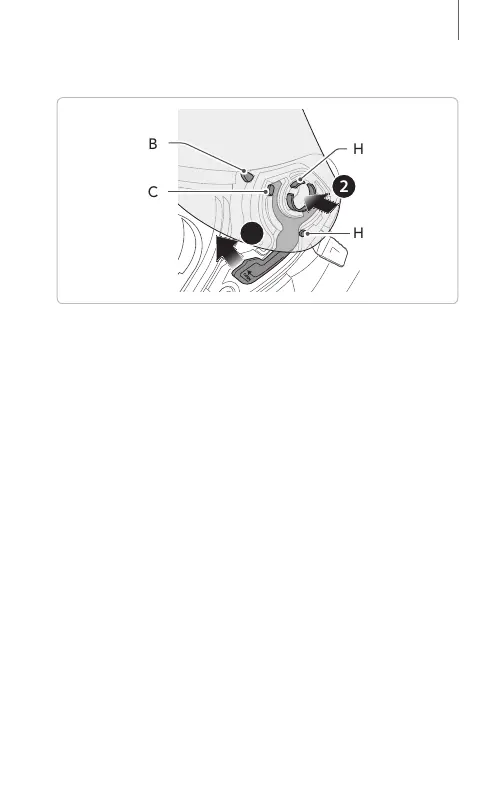

1. Align hook B, hook C, hook D, and hook E to the
shield ratchet as shown in the illustration above.
2. Insert hooks B-E into the shield ratchet while pushing
the shield ratchet lever upward.
3. Release the shield ratchet lever to lock the shield visor
into place.
4. Repeat the process on the opposite side.
