PC1010N
1/2 HP Electric Air Compressor

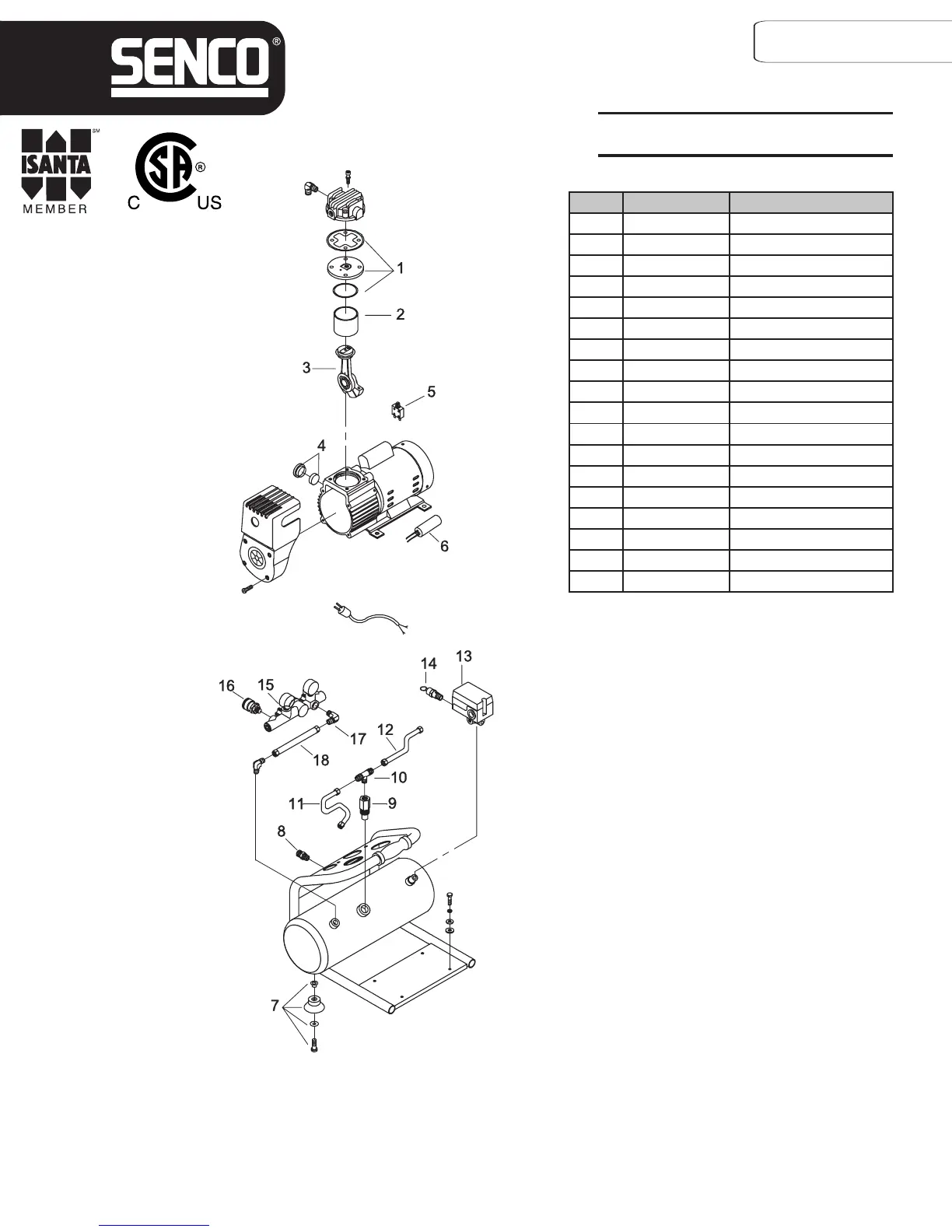

Parts Reference Guide
Ref. No.Part No.Description
1 3B11DC02A Exhaust Valve Assembly
2 3201068 Cylinder
3 3B34DC02 Rod Assembly
4 2140026 Air Filter Set
5 2E2505A Circuit Breaker
6 2E27010F2525 Running Capacitor
7 3433011A Rubber Pad Set
8 2405012 Drain Valve
9 2414033A Check Valve
10 2N0902H01T02H4 Unloading 3-way Pipe
11 3B202120F Unloading Tube A
12 3B202190N Unloading Tube B
13 3Y30WS002 Pressure Switch Set
14 2406016A Pressure Relief Valve
15 3Y30WS003 Regulator Set
16 PC0901 Quick Coupler
17 2N0602T02HS Exhaust Elbow
18 3B202150N Unloading Tube C
