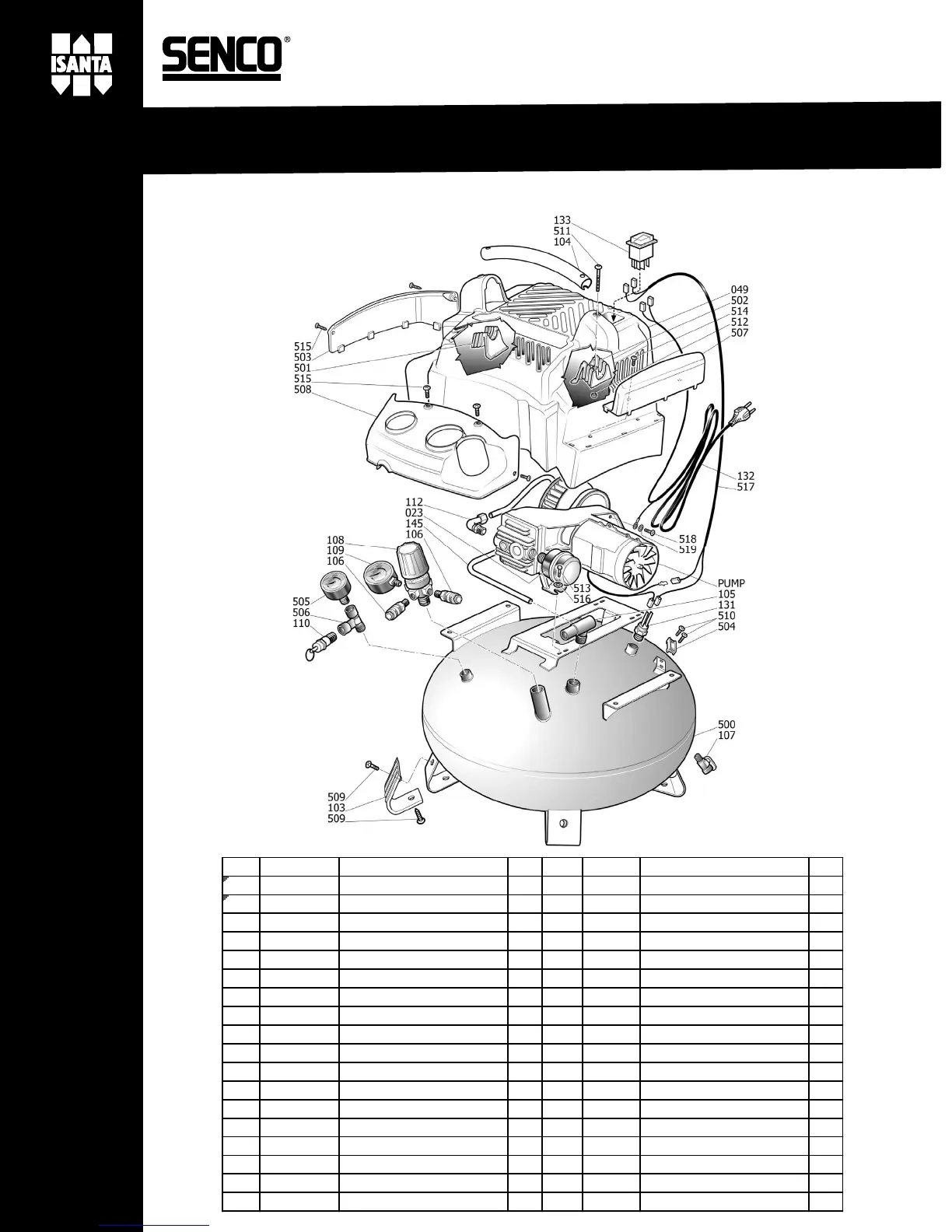

Senco PC1280 - Page 16

Parts Reference Guide
PC1280
1 1/2 HP Electric Air Compressor
PC1010 Revised Date:121504 (Replaces 6/21/04)
SM
M E M B E R
Item Code Description for PARTS LIST Qty Item Code Description for PARTS LIST Qty
023 9054006 AIR FILTER 1 503 9038778 PLASTIC POCKE
T 1
049 9038777 SHROUD 1 504 9064009 LOCK CABL
E 1
103 9038773 RUBBER FOOT 4 505 9052150 GAUGE 1.5" 1
104 9083713 HANDLE 1 506 9050512 "T" (FFM) CONNECTION 1
105 9048104 CHECK VALVE 1 507 9038779 CORD HOOK 1
106 9047086 QUICK COUPLING 2 508 9038774 CONTROL PANEL 1
107 9047062 DRAINING VALVE 1 509 9115012 SCREW 6X16 TE 8
108 9051181 PRESSURE REGULATOR 1 510 9142592 SCREW PARKER AB 3,9X16 2
109 9052149 GAUGE 2" 1 511 9104186 SCREW 6X50 TBEI 2
110 9049115 SAFETY VALVE 1 512 9412055 NUT M6 2
112 9050601 ELBOW 1 513 9101094 SCREW 6X14 TCEI 3
131 9063227 PRESSURE SWITCH 1 514 9104148 SCREW 6X20 TBEI 4
132 9412185 CORD WITH PLUG 1 515 9142772 SCREW PARKER AB 4,2X16 6
133 9414765 POWER SWITCH 1 516 9131654 WASHER 6X12X1,
5 3
145 9043500 SENDING PIPE 1 517 9065704 CABLE 2 WIRE
S 1
500 9413443086 AIR TANK 1 518 9114042 SCREW 4X
8 1
501 9038775 HANDLE LOCKER (RIGHT) 1 519 9134300 WASHER M4 1
502 9038776 HANDLE LOCKER (LEFT) 1 PUMP 9417021 PUMP OL197 V120 1
9065635
